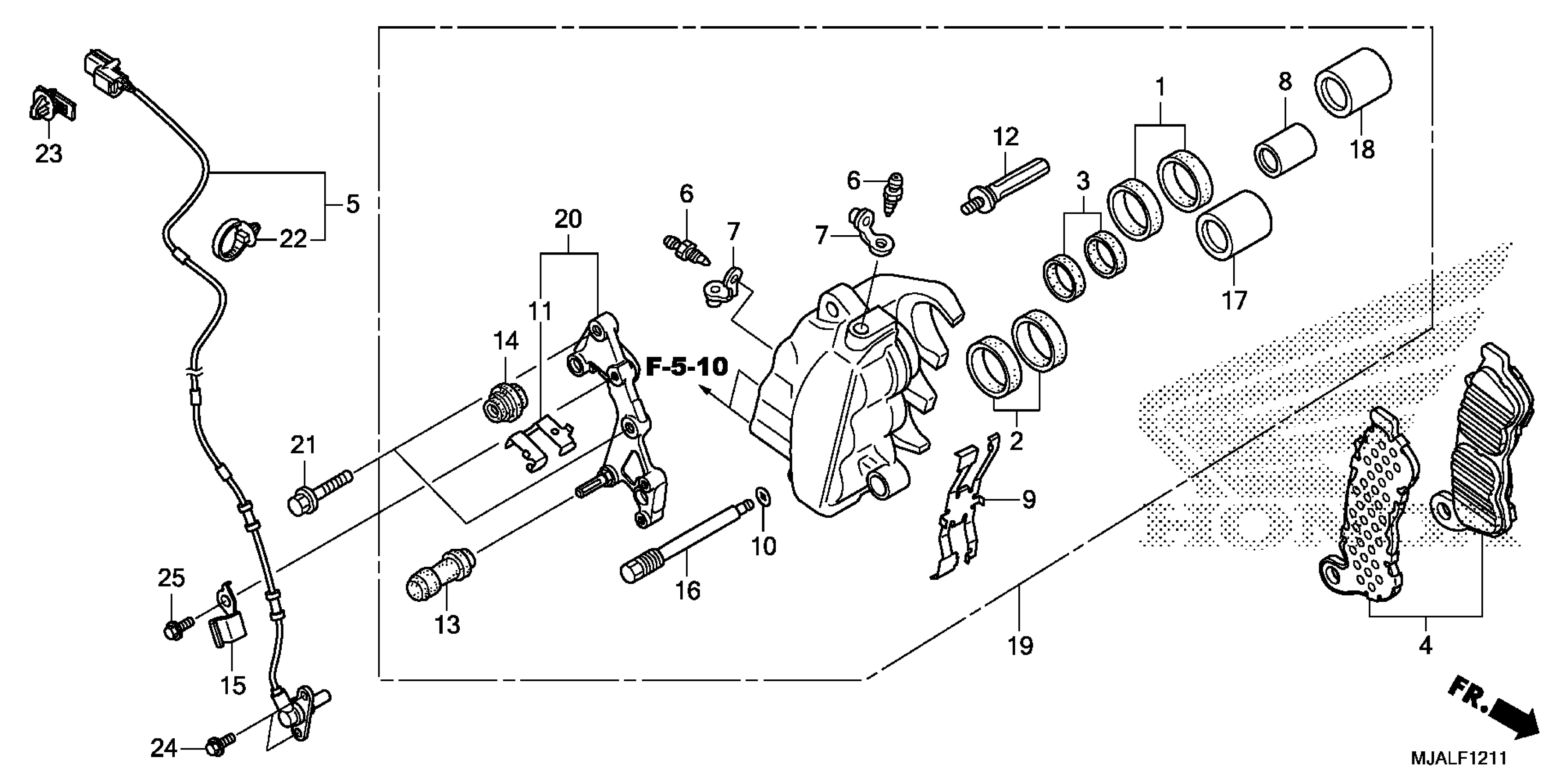

Honda VT750CSAC (20) MOTORCYCLE, JPN, VIN# JH2RC508-LK800001 TO JH2RC508-LK899999 FRONT BRAKE CALIPER (2) Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.00

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$10.47

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)

06451-MZ2-405

$11.51

PAD SET, FR.

06455-MEG-H12

$129.06

SENSOR, FR. WHEEL SPEED

38520-MEG-H11

$351.07

SCREW, BLEEDER (NISSIN)

43352-568-003

$9.83

CAP, BLEEDER

43353-461-771

$4.83

PISTON A (22X27)

45107-MAJ-G41

$36.21

SPRING, PAD

45108-MET-652

$5.35

RING, STOPPER

45111-MAJ-G41

$3.63

RETAINER, BRACKET

45112-MCT-911

$4.79

BOLT A, PIN

45131-MET-651

$15.19

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

CLAMP, SPEED SENSOR CORD

45161-MCW-D10

$4.47

PIN, HANGER

45215-MBT-D51

$6.38

PISTON B (25X35)

45217-MAJ-G41

$33.92

PISTON B (27X35)

45218-MAJ-G41

$36.21

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MEG-H11

$987.28

BRACKET SUB-ASSY., R. FR.

45290-MEG-H11

$178.62

BOLT, SPECIAL FLANGE (8X32)

90101-MEG-B00

$4.69

CLIP, HARNESS BAND (145MM) (BLACK)

91541-S0A-003

$3.15

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.52

BOLT, FLANGE (6X12)

96001-06012-00

$1.66

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.66
