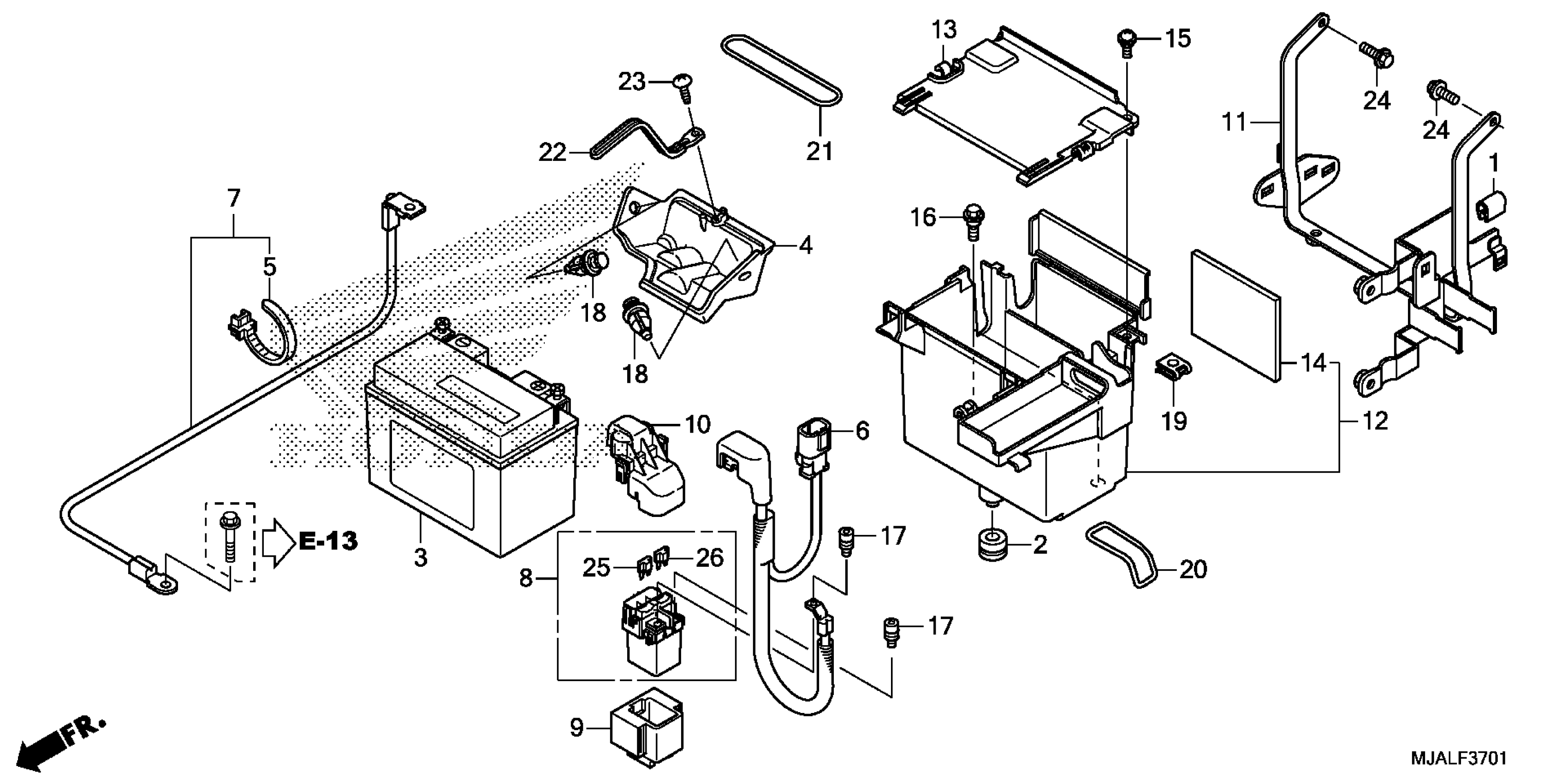

Honda VT750CSAC (20) MOTORCYCLE, JPN, VIN# JH2RC508-LK800001 TO JH2RC508-LK899999 BATTERY (2) Diagram

TRIM, FUEL TANK

17516-HC4-000

$3.97

RUBBER, RADIATOR MOUNTING

19051-KA4-000

$3.63

BATTERY (YTZ14S) (YUASA) (MSDS)

31500-MCR-D03

$187.19

HOLDER, CONNECTOR

32102-MEG-H10

$16.10

BAND, WIRE HARNESS

32161-GFL-J41

$1.71

CABLE, STARTER BATTERY

32401-MEG-H11

$46.00

CABLE, BATTERY GROUND

32601-MEG-H10

$37.06

SWITCH ASSY., STARTER MAGNETIC

35850-MFL-003

$69.91

RUBBER, SHOCK

35856-KBG-007

$9.63

COVER, MAGNETIC SWITCH

35857-MFN-D00

$8.06

HOLDER, BATTERY BOX

50322-MEG-H10

$95.07

BOX, BATTERY

50325-MEG-H10

$79.93

COVER, BATTERY

50326-MEG-H10

$24.18

CUSHION, BATTERY

50328-MFE-640

$3.54

SCREW, SPECIAL (5X12)

90105-MB1-000

$3.19

BOLT, FLANGE (6MM)

90111-GJ5-000

$4.05

BOLT, SOCKET (5X9)

90111-MR5-000

$2.41

CLIP, SPLASH SHIELD

90657-SB0-003

$5.04

NUT, CLIP (5MM)

90677-GR1-003

$4.09

O-RING (48.5X2.5)

91301-MCH-003

$5.35

O-RING (109.4X3.1)

91311-MFE-640

$5.91

CLIP (2X70)

91413-679-000

$8.51

SCREW, TAPPING (4X10) (PO)

93913-14180

$0.84

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

FUSE, MINI (20A)

98200-42000

$1.12

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.62
