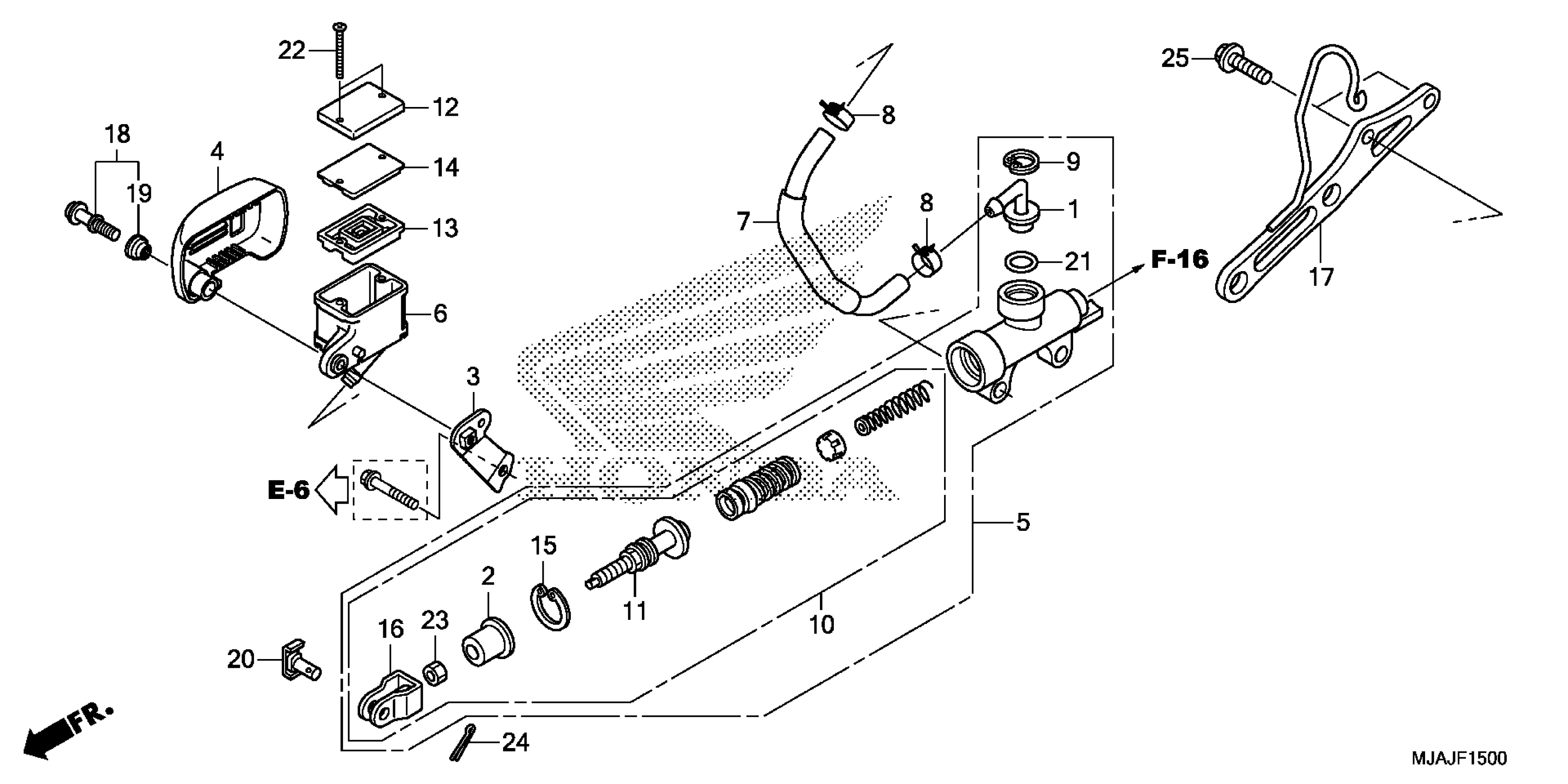

Honda VT750CSAC (19) MOTORCYCLE, JPN, VIN# JH2RC508-KK700001 REAR BRAKE MASTER CYLINDER Diagram

CONNECTOR, MASTER CYLINDER

43503-KS6-701

$10.26

BOOT

43504-MB2-006

$10.04

STAY, OIL CUP

43505-MEG-H10

$9.97

COVER, OIL CUP

43506-MEG-H10

$26.93

MASTER CYLINDER SUB-ASSY., RR. (COO) (NISSIN) This part replaces 43510-MEG-H11.

43510-MJA-305

$188.21

MASTER CYLINDER SUB-ASSY., RR. (COO) (NISSIN)

43510-MJA-305

$188.21

CUP, OIL

43511-KV3-831

$23.70

HOSE, RR. MASTER CYLINDER

43512-MEG-H11

$33.49

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

CIRCLIP, RR. MASTER CYLINDER (FOR FR.)

43517-KS6-701

$3.81

PISTON SET, RR. MASTER CYLINDER

43520-MEG-H11

$89.31

ROD, PUSH (NISSIN)

43530-MW0-006

$30.67

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$4.28

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

DIAPHRAGM

45520-MG7-006

$10.61

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

CIRCLIP

46182-MEL-D21

$1.93

JOINT, BRAKE ROD

46504-MAH-671

$14.30

BRACKET, RR. BRAKE MASTER CYLINDER

50616-MEG-H10

$55.95

BOLT ASSY., SPECIAL (6X26.6)

90110-MEG-H10

$22.08

RUBBER, MOUNTING (FRAME NO.)

90543-MBA-000

$2.92

PIN, JOINT

90751-MEH-000

$3.26

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW, FLAT (4X40)

93600-04040-1G

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55
