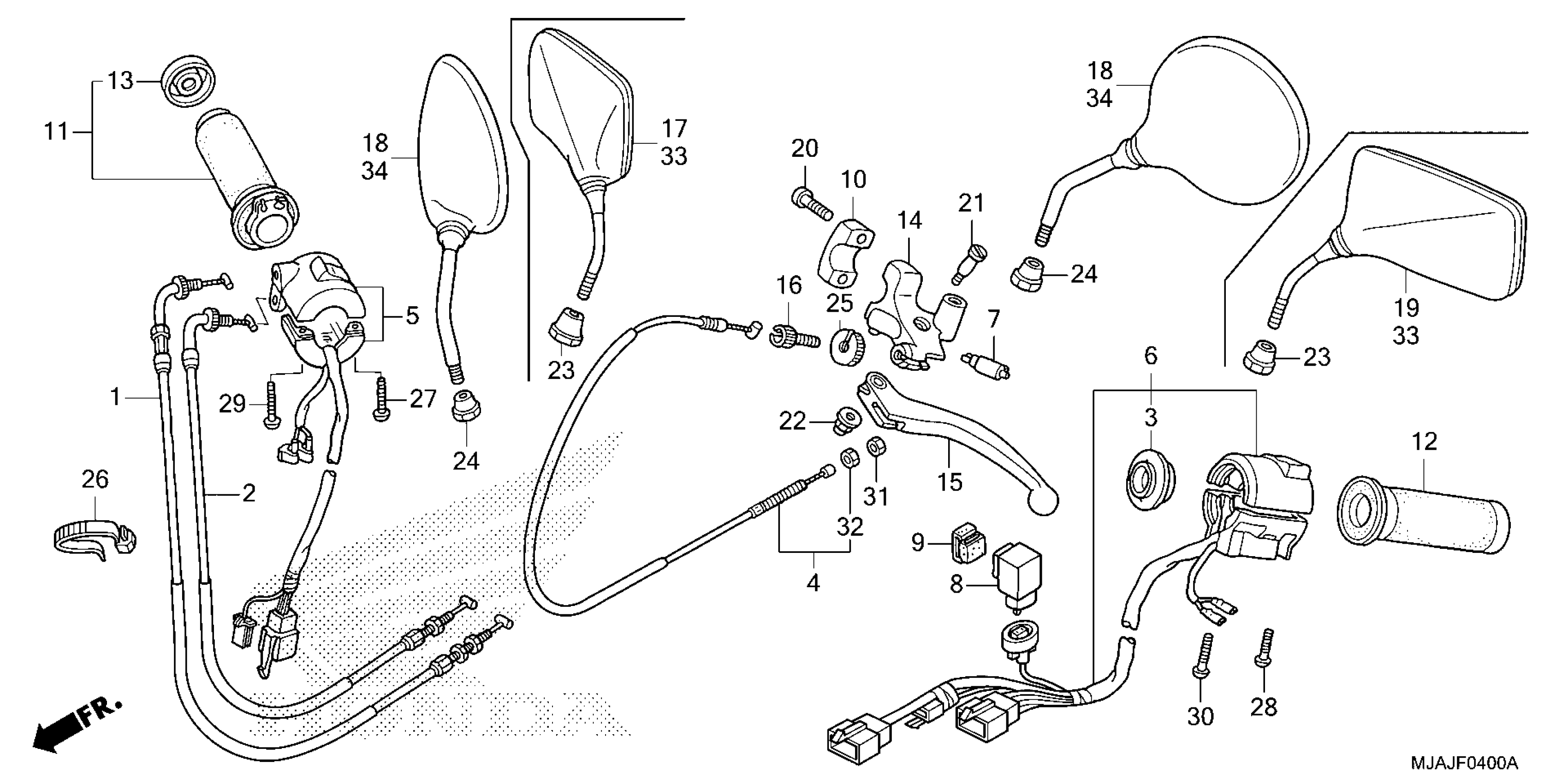

Honda VT750CSAC (19) MOTORCYCLE, JPN, VIN# JH2RC508-KK700001 HANDLE LEVER@SWITCH@CABLE Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MEG-D50

$24.52

2

CABLE B, THROTTLE

17920-MEG-D50

$24.52

3

ADAPTER

17962-MR1-000

$17.31

4

CABLE, CLUTCH

22870-MEG-A41

$24.06

5

SWITCH ASSY., STARTER STOP

35130-MEG-A42

$106.80

6

SWITCH ASSY., TURN SIGNAL

35200-MEG-A41

$109.35

7

SWITCH, FR. LEVER (TOYO DENSO)

35330-413-003

$19.67

8

RELAY, TURN SIGNAL (MITSUBA)

38301-MEG-000

$35.31

9

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.42

10

HOLDER, MASTER CYLINDER (NISSIN)

45517-MEG-006

$9.46

11

GRIP ASSY., R.

53145-MM8-000

$39.08

12

GRIP, L. HANDLE

53166-KCR-000

$32.91

13

CAP, GRIP END

53167-MM8-000

$8.41

14

BRACKET, HANDLE LEVER

53172-MEG-000

$28.51

15

LEVER, L. HANDLE

53178-MAH-000

$17.39

16

BOLT, CABLE ADJUSTING

53192-268-000

$6.08

18

MIRROR

88210-MEG-670

Unavailable

20

BOLT, SOCKET (6X22)

90101-MCL-000

$1.32

21

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.06

22

NUT, CAP (6MM)

90201-415-000

$1.96

24

NUT, LOCK

90314-MS9-000

$3.99

25

NUT, FIXING

90321-MA6-750

$9.38

26

BAND, WIRE HARNESS

90620-SB2-003

$23.54

27

SCREW, PAN (5X20)

93500-05020-0A

$0.75

28

SCREW, PAN (5X22)

93500-05022-0A

$0.61

29

SCREW, PAN (5X25) SCREW, PAN (5X32)

93500-05025-0A

$0.86

30

SCREW, PAN (5X32)

93500-05032-0A

$1.00

31

NUT, HEX. (8MM)

94002-08070-0S

$1.19

32

NUT, HEX. (8MM)

94030-08070

$0.43

34

MIRROR SET

88100-MJA-305

$78.72
