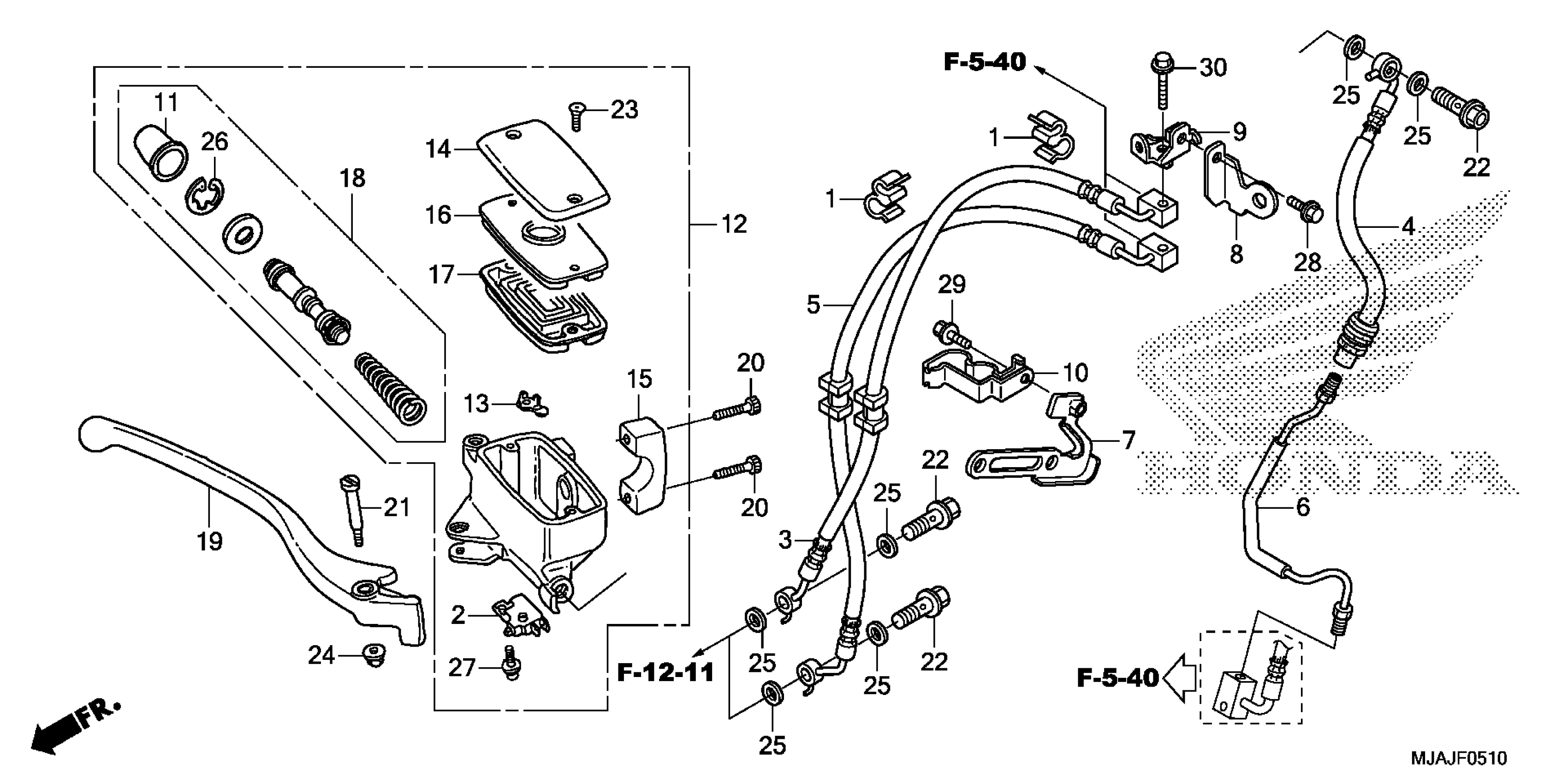

Honda VT750CSAC (19) MOTORCYCLE, JPN, VIN# JH2RC508-KK700001 FRONT BRAKE MASTER CYLINDER (2) Diagram

CLAMP, PIPE

11152-KS4-003

$7.13

SWITCH ASSY., FR. STOP

35340-MM5-601

$12.97

SUB-HOSE, RR. BRAKE

43316-MEG-H11

$135.64

HOSE A, FR. BRAKE

45124-MEG-H11

$91.56

HOSE B, FR. BRAKE

45127-MEG-H11

$118.43

PIPE C, FR. BRAKE

45128-MEG-H10

$26.80

BRACKET, R. FR. HOSE CLIP

45138-MEG-H10

$18.59

STAY A, FR. BRAKE HOSE

45155-MEG-H10

$14.92

STAY B, FR. BRAKE HOSE

45156-MEG-H10

$18.95

CLAMP, FR. BRAKE HOSE & SENSOR

45357-MEG-H10

$18.84

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-MEG-006

$203.82

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN)

45513-MM4-016

$18.48

HOLDER, MASTER CYLINDER (NISSIN)

45517-MEG-006

$9.80

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

MASTER CYLINDER SET (SET INCLD.7 PARTS,ITEM SHOWN BELOW SPRING DOES NOT APPLY)

45530-MN9-305

$50.74

LEVER, R. HANDLEBAR (COO)

53175-MFR-305

$18.76

LEVER, R. HANDLE (COO) This part replaces 53175-ML5-006.

53175-MFR-305

$18.76

BOLT, SOCKET (6X22)

90101-MCL-000

$1.49

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

SCREW, FLAT (4X12)

90158-MT7-000

$2.15

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.72

BOLT, FLANGE (6X32)

96001-06032-07

$1.54
