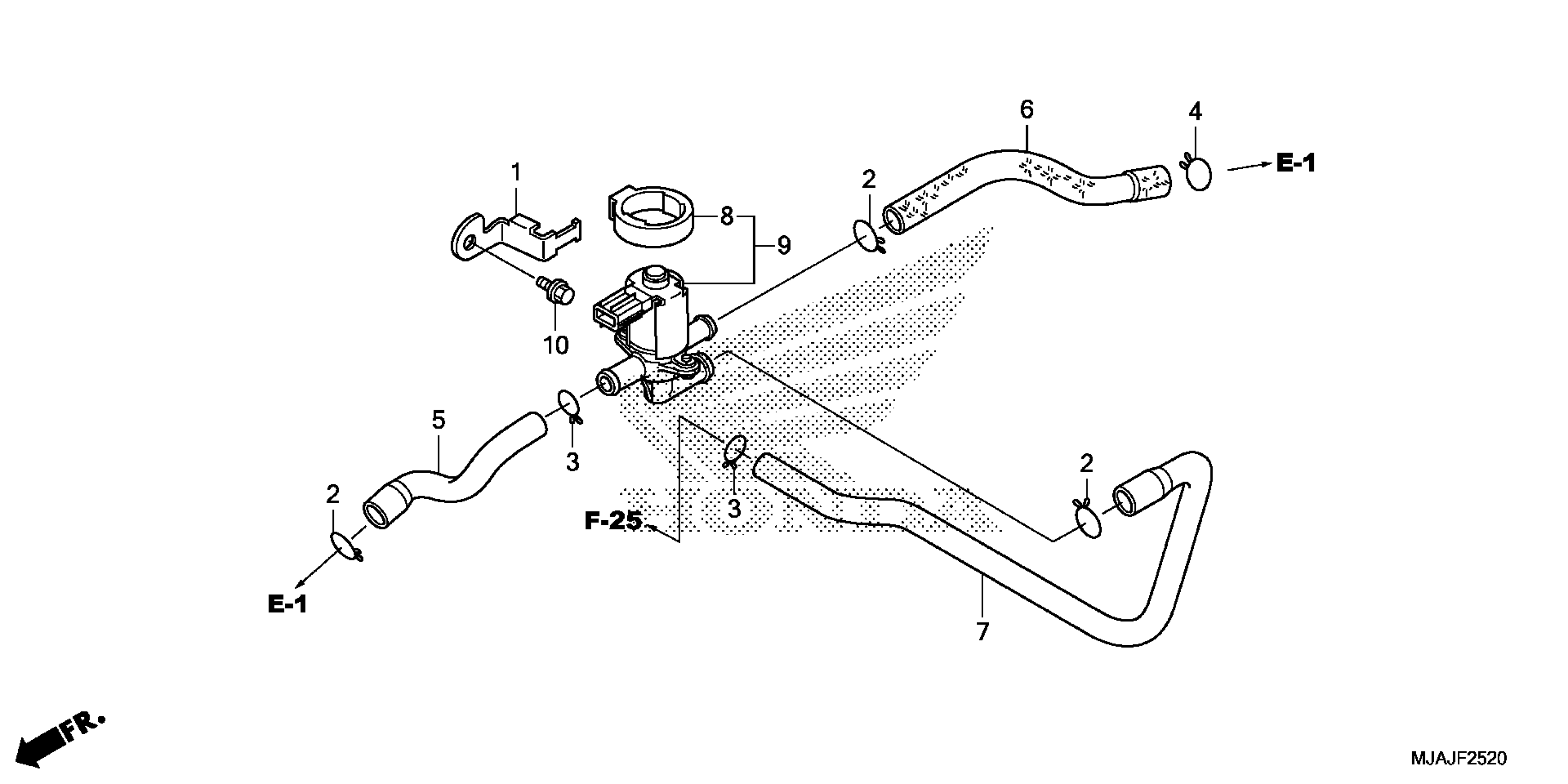

Honda VT750CSAC (19) MOTORCYCLE, JPN, VIN# JH2RC508-KK700001 AIR INJECTION VALVE Diagram

#

Description

Price

1

STAY, EX. AIR INJECTION VALVE

17269-MFE-640

$3.04

2

CLIP, BREATHER TUBE

17554-MB0-000

$2.65

3

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

4

CLIP, AIR HOSE (21.5)

18532-634-670

$7.39

5

TUBE A, AIR INJECTION CONTROL VALVE

18651-MFE-640

$8.43

6

TUBE B, AIR INJECTION CONTROL VALVE

18652-MFE-640

$15.94

7

TUBE C, AIR INJECTION CONTROL VALVE

18653-MFE-640

$13.93

8

SUSPENSION, SOLENOID VALVE

36172-MCA-A61

$2.97

9

VALVE ASSY., EX. AIR INJECTION This part replaces 36450-MCA-A62.

36450-MCA-A63

$59.54

9

VALVE ASSY., EX. AIR INJECTION

36450-MCA-A63

$59.54

10

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81
