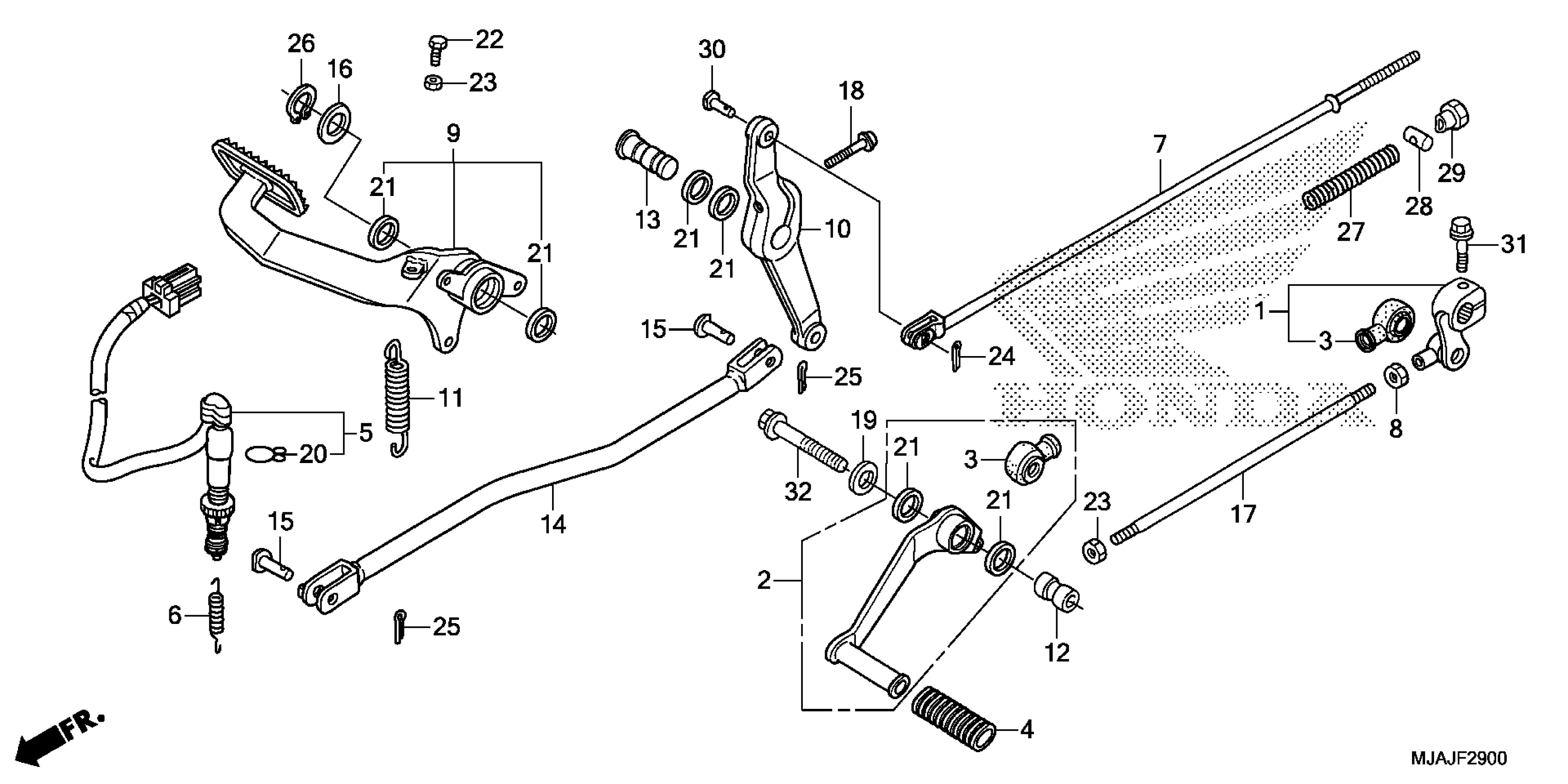

Honda VT750CSAC (18) MOTORCYCLE, JPN, VIN# JH2RC508-JK600001 TO JH2RC508-JK699999 PEDAL Diagram

ARM, GEARSHIFT

24702-MEG-000

$48.15

PEDAL, GEARSHIFT (COO) This part replaces 24710-MEG-000.

24710-MEG-305

$64.80

COVER, DUST

24724-MBW-D21

$6.98

RUBBER, GEARSHIFT PEDAL

24781-371-000

$5.13

SWITCH ASSY., RR. STOP

35350-MEG-003

$19.01

SPRING, STOP SWITCH

35357-KR3-670

$5.12

NUT, HEX. (6MM) (LEFT HAND THREAD)

45423-KA4-700

$1.55

PEDAL ASSY., RR. BRAKE (COO) This part replaces 46500-MEG-H10.

46500-MEG-306

$104.59

SPRING, BRAKE PEDAL

46514-KZ9-000

$5.14

COLLAR, RR. BRAKE PIVOT

46515-MM8-000

$11.72

BUSH, WASHER

53312-657-000

$6.70

BOLT, TIE ROD

90065-MEG-000

$7.78

WASHER (10.3MM)

90521-427-770

$2.28

CLIP, SWITCH COVER

90601-KAF-003

$2.67

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

NUT, HEX. (6MM)

94002-06000-0S

$1.49

CIRCLIP (OUTER) (15MM)

94511-15000

$1.49

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

BOLT, FLANGE (10X50) BOLT, FLANGE (10X60)

95801-10050-00

$6.23
