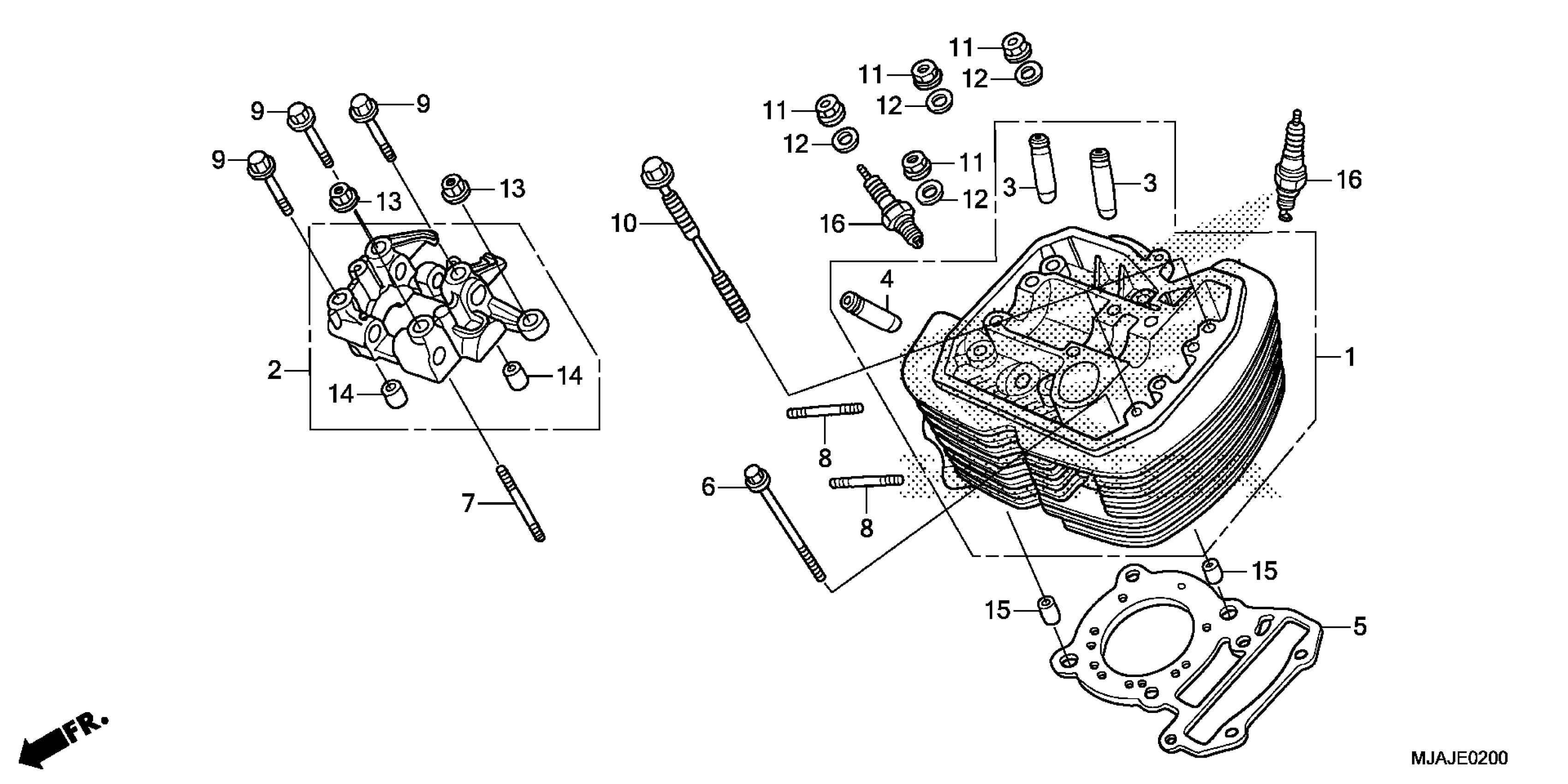

Honda VT750CSAC (18) MOTORCYCLE, JPN, VIN# JH2RC508-JK600001 TO JH2RC508-JK699999 FRONT CYLINDER HEAD Diagram

CYLINDER HEAD, FR.

12210-MEG-000

$617.72

HOLDER, CAMSHAFT

12225-MEG-000

$121.31

GUIDE, IN. VALVE (OVER SIZE)

12231-MF5-305

$22.36

GUIDE, EX. VALVE (OVER SIZE)

12241-KW0-305

$18.51

GASKET, CYLINDER HEAD

12251-MN8-911

$36.47

BOLT, FLANGE (6X70) (NSHF)

90004-GHB-770

$5.44

BOLT, STUD (8X50)

90013-MF5-000

$4.97

BOLT, STUD (8X25)

90016-MBA-000

$4.39

BOLT, FLANGE (8X68)

90066-MC7-000

$4.05

BOLT, CYLINDER (8X187)

90081-MZ8-H01

$10.31

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.59

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.59

NUT, FLANGE (10MM)

94050-10000

$1.59

WASHER (10MM)

90410-HC4-000

$3.81

NUT, FLANGE (8MM)

94050-08080

$1.49

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.28

PIN A, DOWEL (14X20)

94301-14200

$2.28

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.62

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.54

SPARK PLUG (DPR8EA-9) (NGK) | (Optional).

98069-58916

$2.62

SPARK PLUG (X24EPR-U9) (DENSO) | (Optional).

98069-58926

$2.54
