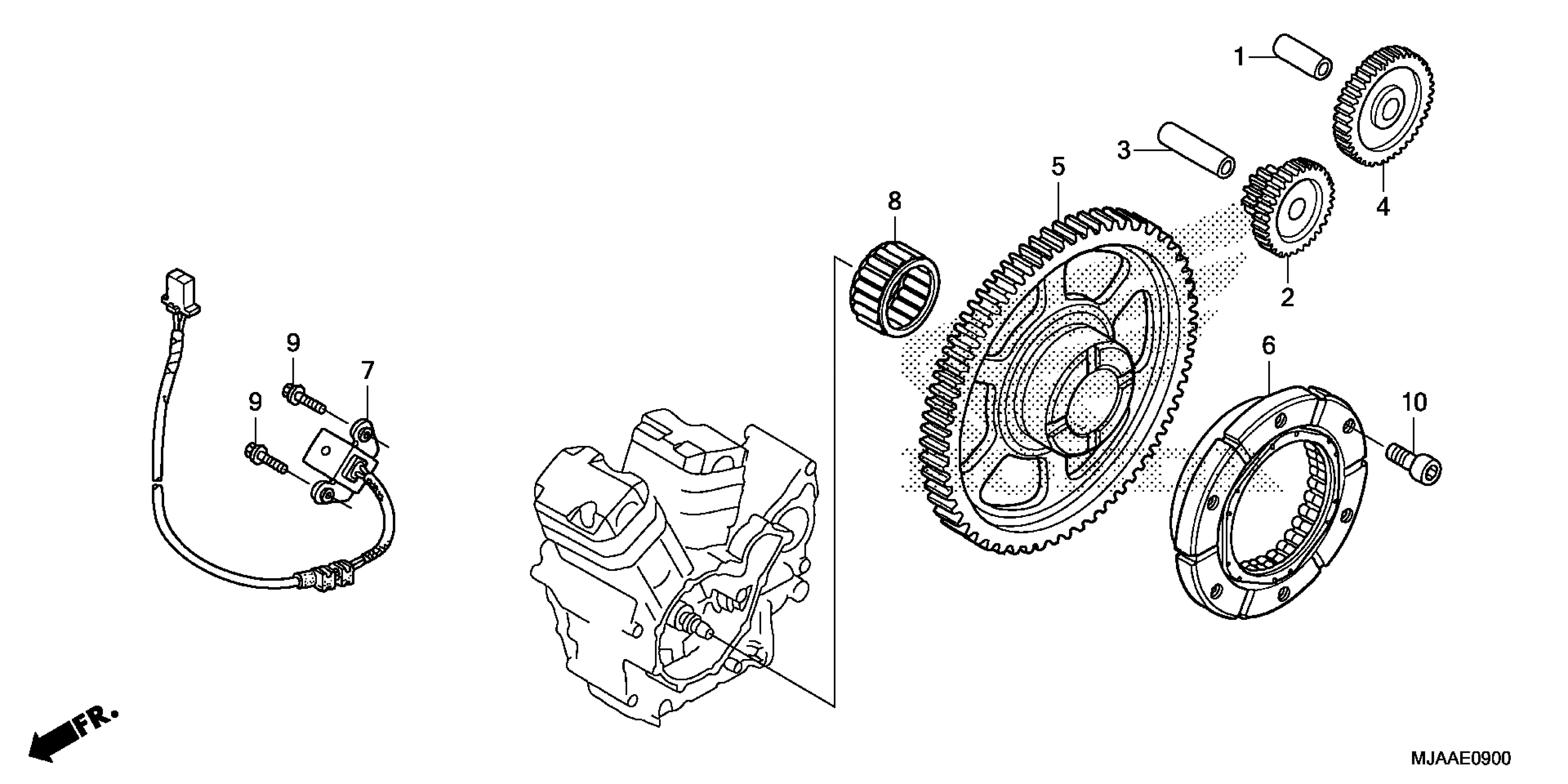

Honda VT750CSAC (13) SHADOW AERO ABS, JPN, VIN# JH2RC508-DK200001 STARTING CLUTCH Diagram

#

Description

Price

1

PIN, PISTON

13111-GS7-000

$8.80

1

PIN, PISTON This part replaces 13111-122-000.

13111-GS7-000

$8.80

2

GEAR, STARTER REDUCTION (39T/12T) | Use from Engine SN 2511051.

28101-MGS-D30

$74.15

2

GEAR, STARTER REDUCTION (39T/12T) | Use up to Engine SN 2511050. This part replaces 28101-MN8-000.

28101-MGS-D30

$74.15

3

PIN (10X44)

28102-ME9-000

$9.23

4

GEAR, STARTER (51T) | Use up to Engine SN 2511050. This part replaces 28106-ME9-010.

28106-MGS-D30

$72.03

4

GEAR, STARTER (51T)

28106-MGS-D30

$72.03

5

GEAR, STARTER DRIVEN (88T) | Use from Engine SN 2511051.

28110-MGS-D30

$163.10

6

CLUTCH OUTER ASSY., STARTING (FUJI)

28125-MBA-003

$215.35

7

GENERATOR ASSY., PULSE

30300-MEG-000

$49.22

8

BEARING, NEEDLE (30X37X20) (NTN)

91021-MF5-841

$30.04

9

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.63

10

BOLT, SOCKET (8X20)

96700-08020-00

$1.66

10

BOLT, SOCKET (8X20) This part replaces 96700-08020-10.

96700-08020-00

$1.66
