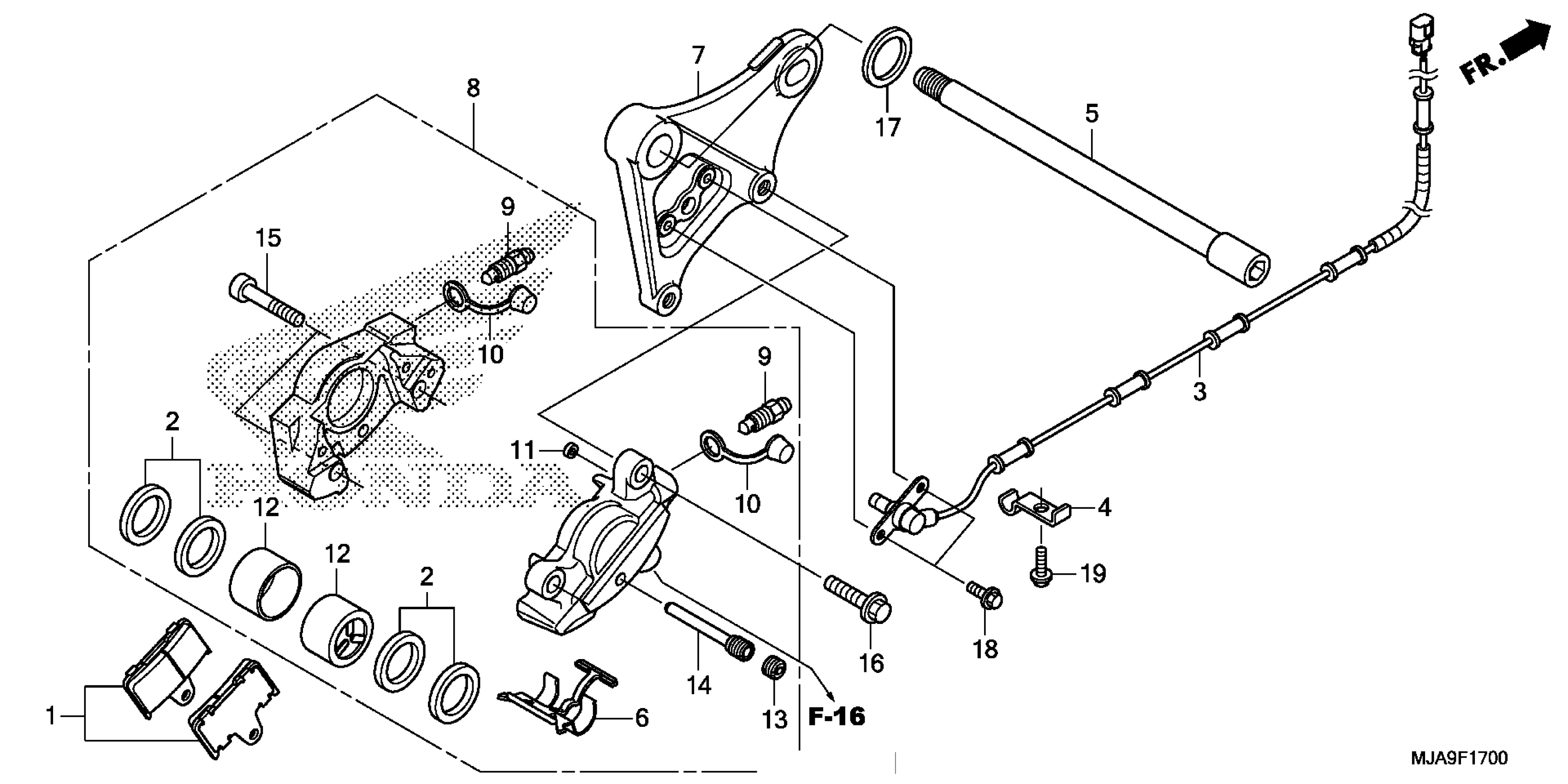

Honda VT750CSA (16) SHADOW AERO ABS, JPN, VIN# JH2RC507-GK500001 TO JH2RC507-GK599999 REAR BRAKE CALIPER Diagram

PAD SET, RR. This part replaces 06435-MAZ-006.

06435-MAZ-016

$58.35

SEAL SET, PISTON

06451-443-405

$11.88

SENSOR, RR. WHEEL SPEED

38510-MEG-H11

$361.62

CLAMP, ABS SENSOR

38511-MEG-H10

$10.20

AXLE, RR. WHEEL

42301-MEG-640

$54.52

SPRING, PAD

43108-MCE-006

$8.43

BRACKET, RR. BRAKE

43110-MEG-H11

$198.65

CALIPER SUB-ASSY., RR. BRAKE (NISSIN)

43150-MEG-H11

$664.14

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.39

CAP, BLEEDER

43353-461-771

$4.70

SEAL, JOINT (NISSIN)

45103-MR7-006

$3.48

PISTON

45107-MBS-006

$36.14

PLUG, PIN

45203-MG3-016

$4.76

PIN, HANGER (NISSIN)

45215-ML7-922

$9.51

BOLT, TORX (10X45)

90107-MAZ-006

$4.35

BOLT, FLANGE (10X32)

90131-MY9-870

$2.04

WASHER (20.2X32X3)

90502-MEG-H10

$12.14

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

BOLT, FLANGE (6X16)

96001-06016-07

$0.96
