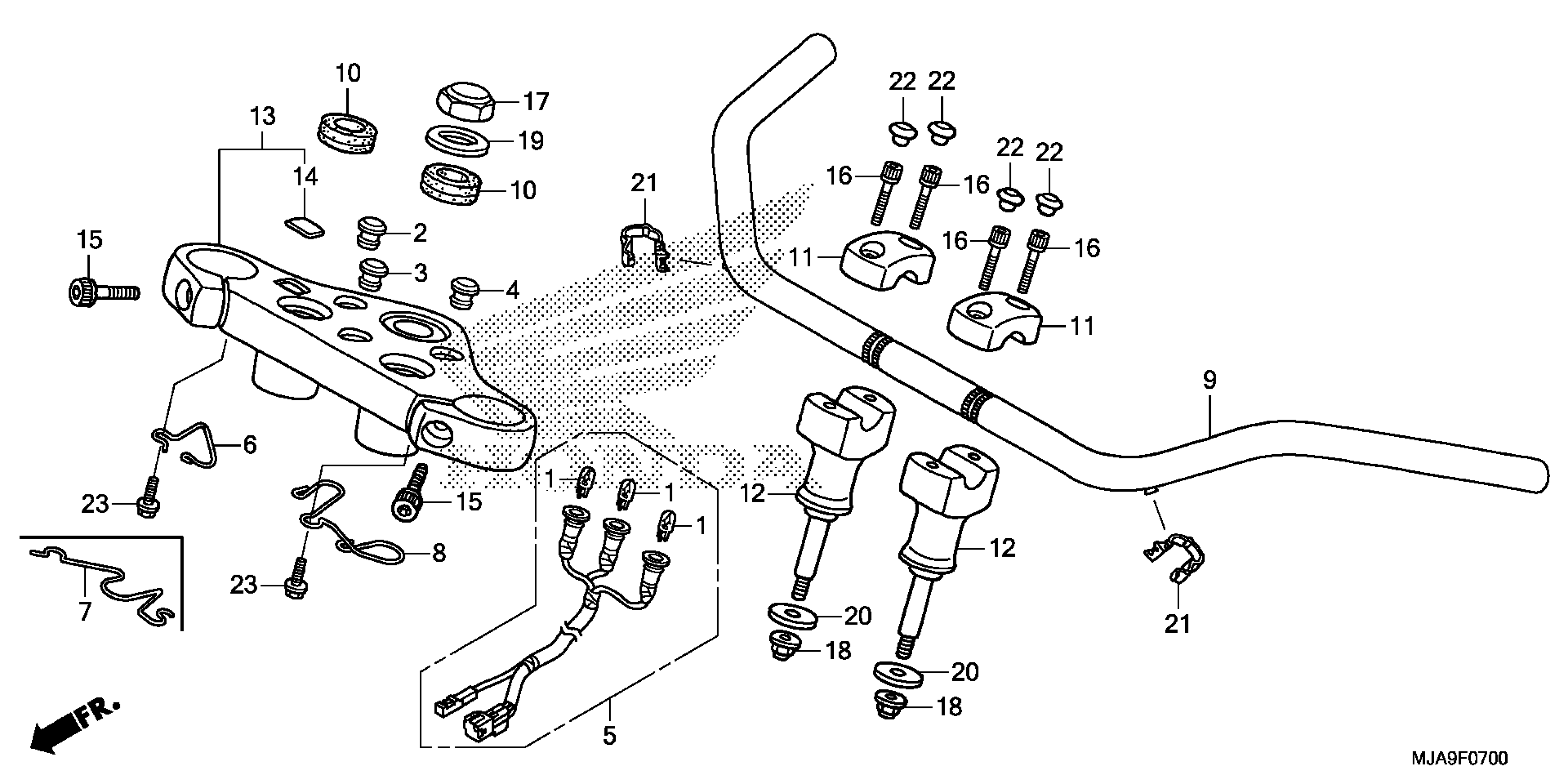

Honda VT750CSA (16) SHADOW AERO ABS, JPN, VIN# JH2RC507-GK500001 TO JH2RC507-GK599999 HANDLEBAR (1) Diagram

BULB, WEDGE BASE (12V 3.4W) (STANLEY)

34908-KW3-003

$3.62

LENS, HIGH BEAM PILOT (BLUE)

37551-MZ0-018

$7.49

LENS, TURN SIGNAL PILOT (GREEN)

37561-MZ0-611

$6.84

LENS, FUEL PILOT (ORANGE)

37581-MBS-008

$7.64

SOCKET ASSY., PILOT

37605-MEG-A41

$69.87

GUIDE, R. CABLE

45135-MEG-H10

$27.30

GUIDE, L. CABLE

45136-MEG-A40

$18.25

HANDLEBAR

53100-MEG-A40

$113.72

HANDLEBAR This part replaces 53100-MEG-305.

53100-MEG-A40

$113.72

CAP, HANDLE (LOWER)

53125-KW9-700

$4.94

HOLDER, HANDLE (UPPER)

53131-MM8-000

$17.26

HOLDER, HANDLE (LOWER)

53231-MZ8-A20

$48.23

BRIDGE ASSY., FORK TOP

53300-MBA-J11

$221.51

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.37

EMBLEM, PRODUCT (UEHARA)

86150-KPG-902

$3.65

BOLT, SOCKET (8X30)

90112-MCL-000

$2.58

BOLT, SOCKET (8X32)

90154-ME9-000

$5.12

NUT, STEERING STEM

90304-415-000

$17.81

NUT, FLANGE (8MM) This part replaces 90309-ML4-901.

90309-MR1-770

$2.90

NUT, FLANGE (8MM)

90309-MR1-770

$2.90

WASHER, STEERING STEM

90503-283-000

$4.07

WASHER, HANDLE HOLDER (LOWER)

90535-MR1-770

$3.55

CLIP, CABLE (17MM)

90690-GHB-701

$2.78

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.36

BOLT, FLANGE (8X16)

95701-08016-00

$1.64
