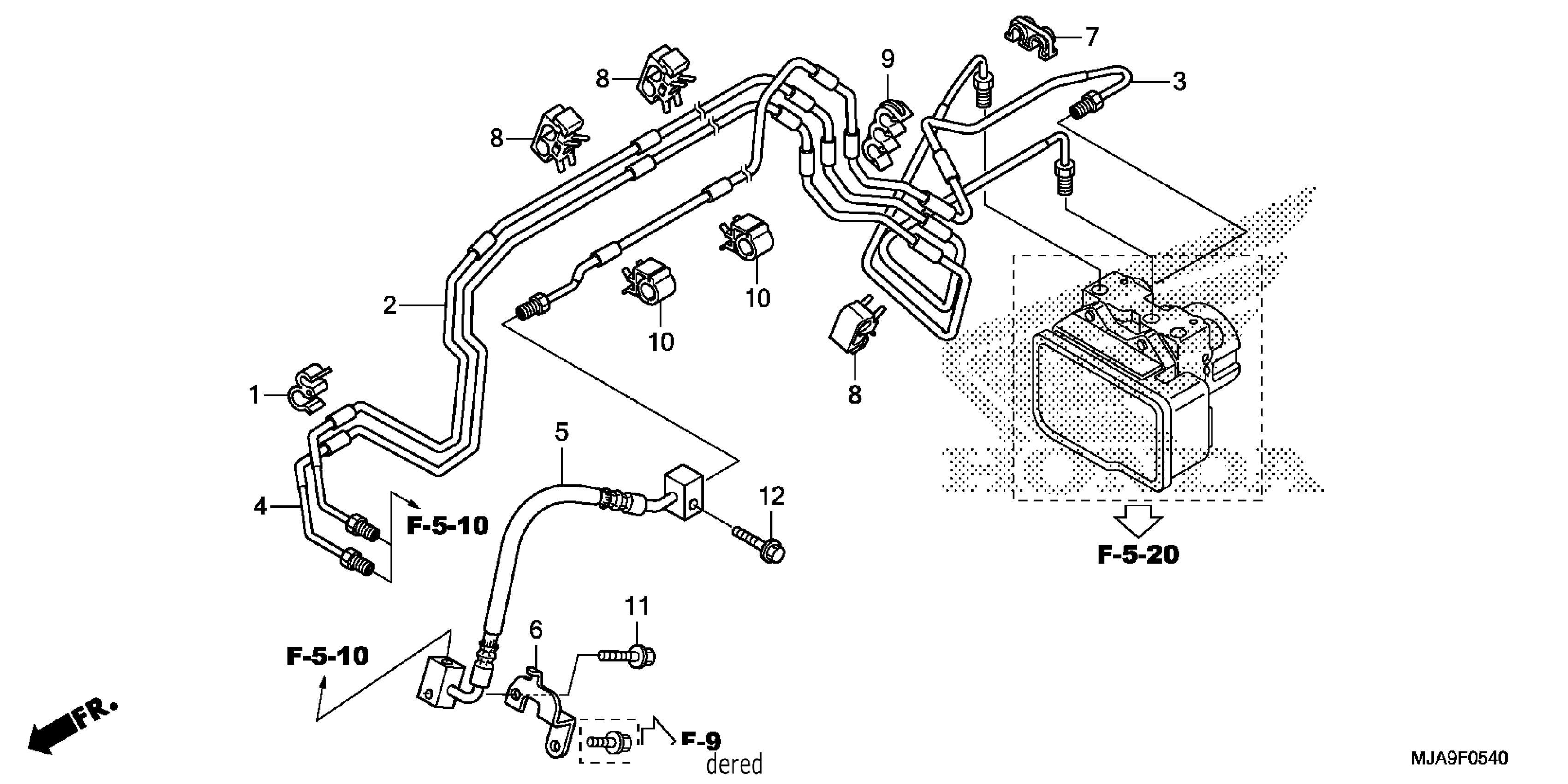

Honda VT750CSA (16) SHADOW AERO ABS, JPN, VIN# JH2RC507-GK500001 TO JH2RC507-GK599999 FRONT BRAKE PIPE Diagram

CLAMP, PIPE

11152-KS4-003

$7.13

SUB-PIPE, RR. BRAKE

43315-MEG-H11

$61.41

PIPE A, FR. BRAKE

45125-MEG-H10

$80.30

PIPE B, FR. BRAKE

45126-MEG-H10

$80.30

HOSE C, FR. BRAKE

45129-MEG-H11

$96.31

STAY, FR. BRAKE BLOCK

45358-MEG-H10

$16.44

CLAMP, BRAKE PIPE

90661-MCA-003

$2.15

CLAMP, BRAKE PIPE (7.0X2)

90661-MEW-921

$2.84

CLAMP, BRAKE PIPE (6.8X3)

90662-MCA-971

$2.54

CLIP, CABLE (10MM) CLIP, CABLE (8MM)

90690-GHB-641

$2.18

BOLT, FLANGE (6X16)

96001-06016-07

$1.49

BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)

96001-06025-07

$1.49
