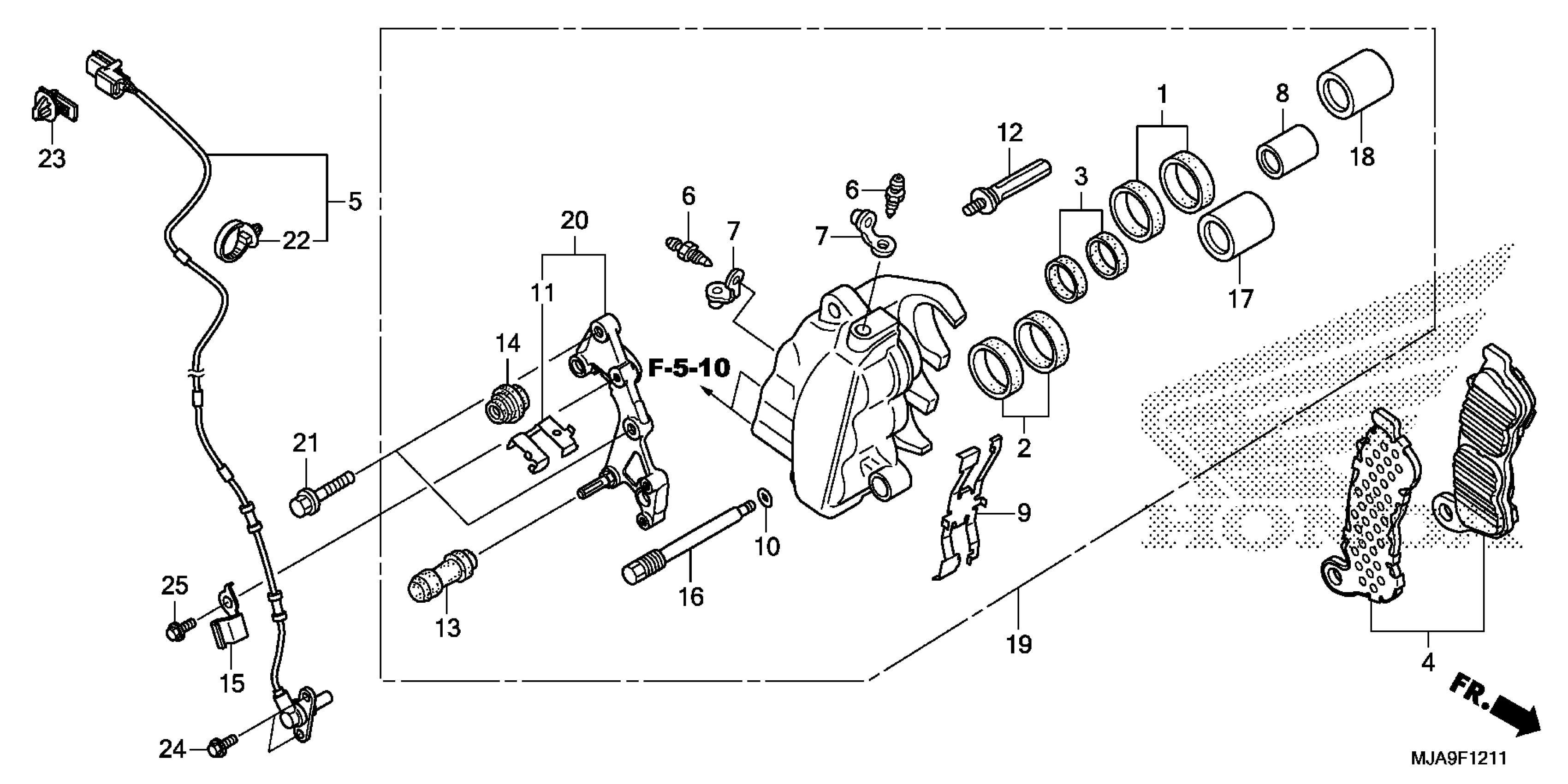

Honda VT750CSA (15) SHADOW AERO ABS, JPN, VIN# JH2RC507-FK400001 TO JH2RC507-FK499999 FRONT BRAKE CALIPER (2) Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$6.82

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$10.24

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)

06451-MZ2-405

$11.27

PAD SET, FR. This part replaces 06455-MEG-H11.

06455-MEG-H12

$127.19

PAD SET, FR.

06455-MEG-H12

$127.19

SENSOR, FR. WHEEL SPEED

38520-MEG-H11

$345.99

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.39

CAP, BLEEDER

43353-461-771

$4.70

PISTON A (22X27)

45107-MAJ-G41

$35.68

SPRING, PAD

45108-MET-652

$5.28

RING, STOPPER

45111-MAJ-G41

$3.54

RETAINER, BRACKET

45112-MCT-911

$4.72

BOLT A, PIN

45131-MET-651

$14.97

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.07

BOOT B

45133-MA3-006

$5.07

CLAMP, SPEED SENSOR CORD

45161-MCW-D10

$4.41

PIN, HANGER

45215-MBT-D51

$6.29

PISTON B (25X35)

45217-MAJ-G41

$33.16

PISTON B (27X35)

45218-MAJ-G41

$35.68

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MEG-H11

$972.97

BRACKET SUB-ASSY., R. FR.

45290-MEG-H11

$176.03

BOLT, SPECIAL FLANGE (8X32)

90101-MEG-B00

$4.62

CLIP, HARNESS BAND (145MM) (BLACK)

91541-S0A-003

$3.08

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.42

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

Unavailable
