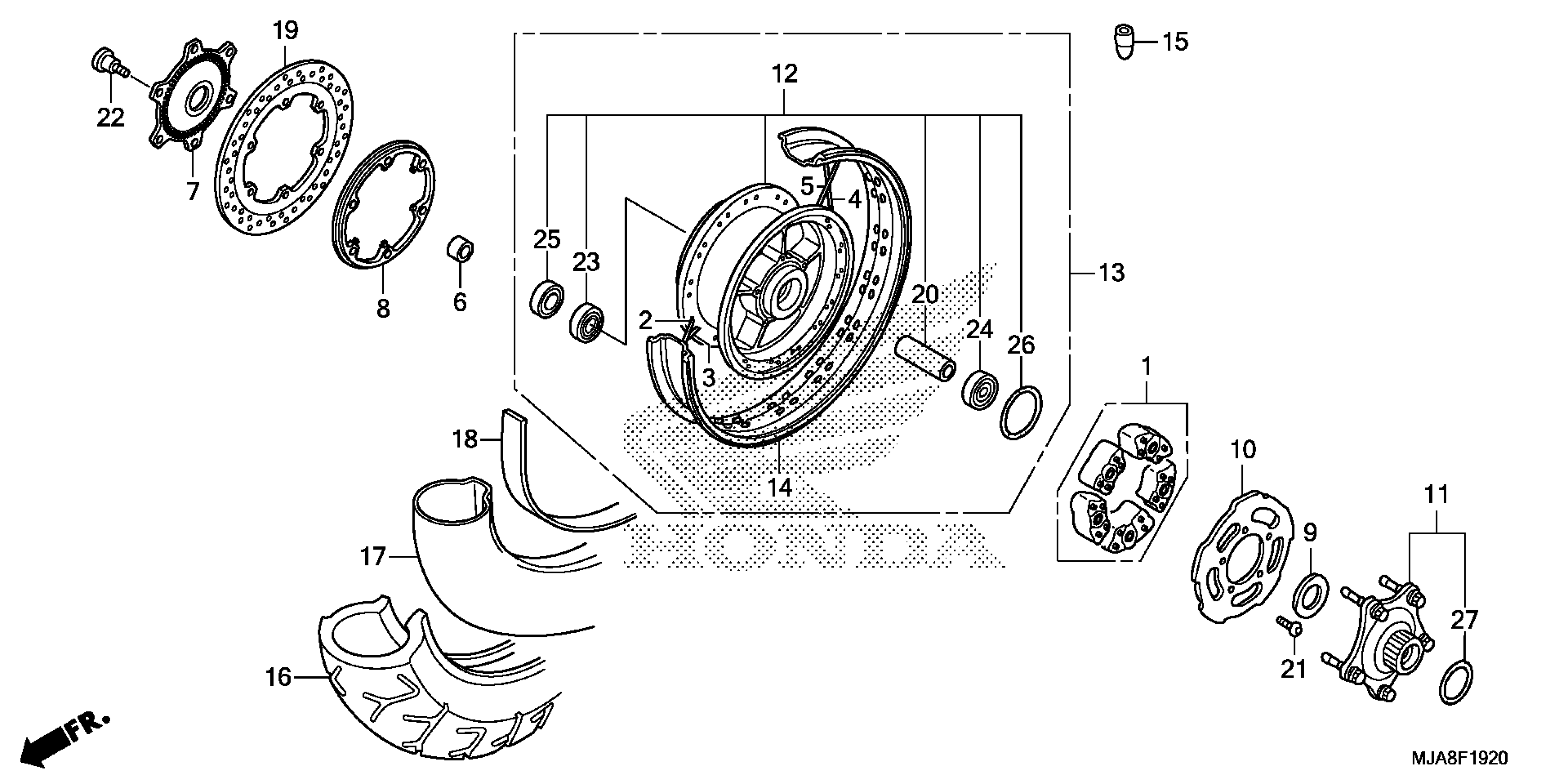

Honda VT750CSA (14) SHADOW AERO ABS, JPN, VIN# JH2RC507-EK300001 REAR WHEEL (2) Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MBH-000

$54.62

2

SPOKE SET, R. RR. (INNER)

06420-MEG-H10

$6.90

3

SPOKE SET, R. RR. (OUTER)

06421-MEG-H10

$6.90

4

SPOKE SET, L. RR. (INNER)

06422-MEG-H10

$6.90

5

SPOKE SET, L. RR. (OUTER)

06423-MEG-H10

$6.90

6

COLLAR, R. RR. WHEEL SIDE

42313-MEG-H10

$20.89

7

RING, PULSER

42515-MEG-H10

$117.21

8

SPACER, BRAKE DISK

42516-MEG-H10

$185.77

9

WASHER, THRUST

42616-MT3-000

$7.51

10

HOLDER, DAMPER

42617-MT8-000

$42.97

11

FLANGE SET, FINAL DRIVEN

42630-MAH-305

$192.11

12

HUB SUB-ASSY., RR. WHEEL

42635-MAH-A20

$570.80

13

WHEEL SET, RR. (COO)

42650-MEG-306

$826.80

14

RIM, RR. WHEEL

42701-MAH-013

$173.18

15

WEIGHT, BALANCE (15G)

42704-MEG-003

$8.08

15

WEIGHT, BALANCE (20G)

42705-MEG-003

$8.08

16

TIRE, RR. (160/80-15) (M/C 74S) (BS) This part replaces 42711-MEG-017.

42711-MCL-023

$290.61

16

TIRE, RR. (160/80-15) (M/C 74S) (BS)

42711-MCL-023

$290.61

16

TIRE (160/80-15) This part replaces 42711-MEG-014.

42711-MEG-034

$234.10

16

TIRE (160/80-15) This part replaces 42711-MEG-024.

42711-MEG-034

$234.10

16

TIRE (160/80-15)

42711-MEG-034

$234.10

17

TUBE, TIRE (BS) This part replaces 42712-MEG-903.

42712-MEG-901

$42.69

17

TUBE, TIRE (BS)

42712-MEG-901

$42.69

17

TUBE, TIRE (DUNLOP)

42712-MEG-902

$37.54

18

FLAP, TIRE (BS) This part replaces 42713-MEG-007.

42713-MR1-671

$7.32

18

FLAP, TIRE (BS)

42713-MR1-671

$7.32

18

FLAP, TIRE (45-15) (DUNLOP)

42713-MR1-672

$7.32

19

DISK, RR. BRAKE

43251-MEG-H11

$635.08

20

COLLAR, FR. AXLE DISTANCE (RR.)

44620-MT3-000

$18.26

21

BOLT, DISK (6X17)

90105-KN5-000

$3.89

21

BOLT, DISK (6X17) (SAGA) This part replaces 90105-KV3-851.

90106-MT3-003

$3.80

21

BOLT, DISK (6X17)

90106-MBB-000

$3.65

21

BOLT, DISK (6X17) (SAGA)

90106-MT3-003

$3.80

22

BOLT, RR. DISK (8X34)

90106-MEG-H10

$12.20

23

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$27.50

24

BEARING, RADIAL BALL (20X47X20.6) (TOYO)

91053-MN5-003

$74.94

25

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$12.13

25

DUST SEAL (30X47X8) (NOK)

91253-443-762

$12.13

26

O-RING (61X2)

91302-MA6-003

$5.17

27

O-RING (46.5X3.5) (Honda Code 1251610)

91358-MB0-000

$3.76
