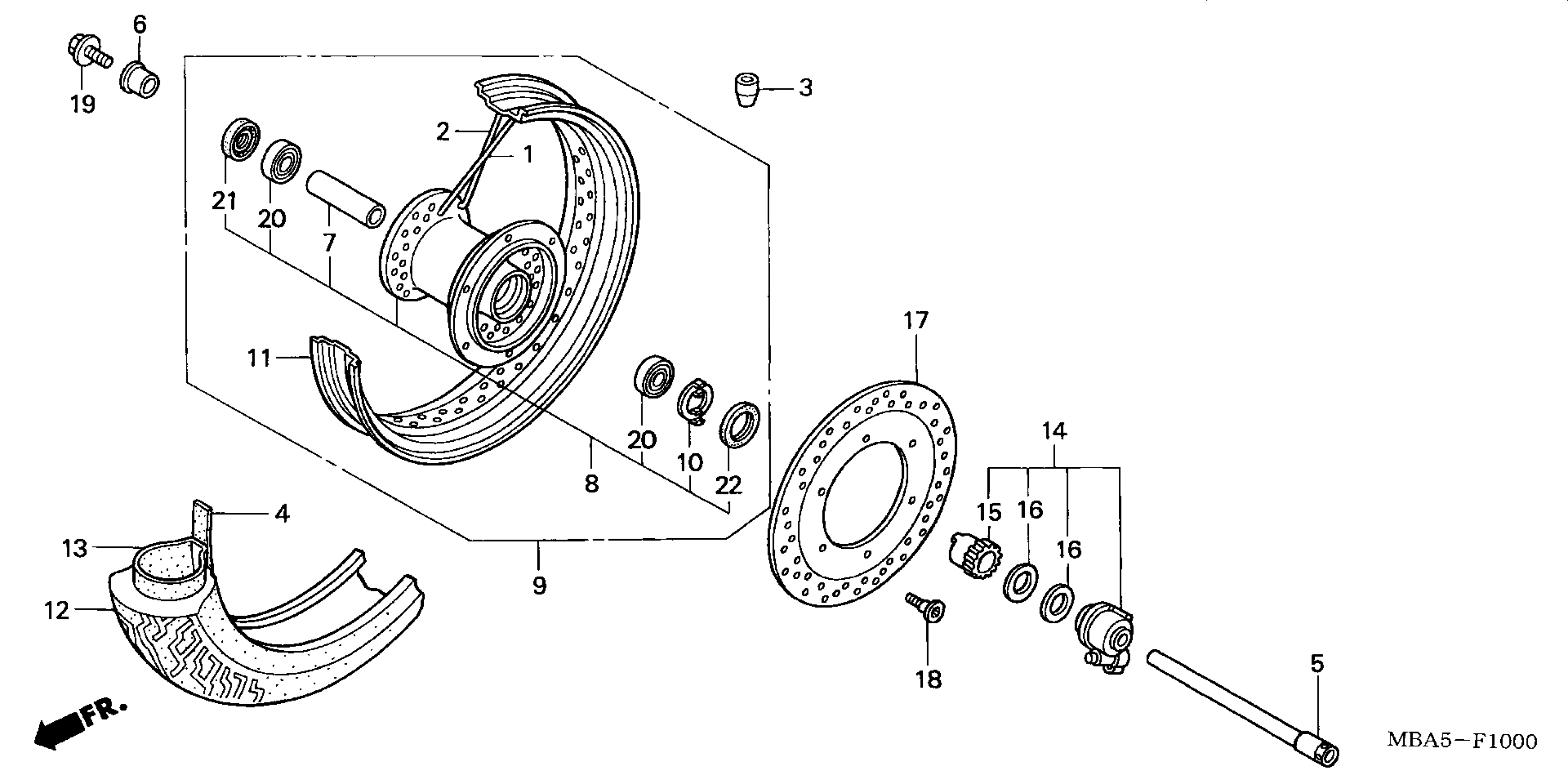

Honda VT750CDDAC (03) SHADOW ACE 750 DELUXE, JPN, VIN# JH2RC44H-3M100001 FRONT WHEEL Diagram

#

Description
Price

1

SPOKE SET (A)

06440-MBA-000

$4.93

2

SPOKE SET (B)

06441-MBA-000

$4.93

3

WEIGHT, BALANCE (15G)

42704-MEG-003

$7.52

3

WEIGHT, BALANCE (20G)

42705-MEG-003

$7.52

3

WEIGHT, BALANCE (20G) This part replaces 42707-MR6-670.

42705-MEG-003

$7.52

3

WEIGHT, BALANCE (15G) This part replaces 42708-MR1-670.

42704-MEG-003

$7.52

4

FLAP, TIRE (BS)

42713-MY1-003

$6.70

4

FLAP, TIRE (DUNLOP)

44713-MAV-004

$6.15

5

AXLE, FR. WHEEL

44301-MAH-671

$59.77

6

COLLAR, FR. WHEEL SIDE

44311-MM8-000

$17.20

7

COLLAR, FR. AXLE DISTANCE

44620-MBC-000

$15.41

8

HUB SUB-ASSY., FR. | Use up to Frame SN 3M100224 This part replaces 44635-MBA-000.

44635-MBA-010

$224.61

8

HUB SUB-ASSY., FR.

44635-MBA-010

$224.61

9

WHEEL SUB-ASSY., FR. | Use up to Frame SN 3M100224 This part replaces 44650-MBA-010.

44650-MBA-020

Unavailable

9

WHEEL SUB-ASSY., FR.

44650-MBA-020

Unavailable

10

RETAINER, GEAR BOX

44680-ML7-000

$4.73

11

RIM, FR. WHEEL (DAIDO) This part replaces 44701-MBA-013.

44701-MBA-023

$103.36

11

RIM, FR. WHEEL (DAIDO)

44701-MBA-023

$103.36

12

TIRE, FR. (120/90-17) (M/C 64S) (BS)

44711-MBA-013

$166.16

12

TIRE, FR. (120/90-17) (M/C 65S) (DUNLOP)

44711-MBA-014

Unavailable

13

TUBE, TIRE (BS)

44712-MBA-003

$22.86

13

TUBE, TIRE (BS) This part replaces 44712-MBA-004.

44712-MBA-003

$22.86

14

BOX ASSY., SPEEDOMETER GEAR

44800-MR1-003

$100.08

15

GEAR, SPEEDOMETER

44806-MR1-003

$27.93

16

WASHER, SPEEDOMETER GEAR

44809-ML7-003

$2.80

17

DISK, FR. BRAKE This part replaces 45351-MBA-000.

45351-MGR-670

$390.49

18

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$5.78

18

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$5.78

19

BOLT, FR. AXLE

90305-ML7-000

$9.03

20

BEARING, RADIAL BALL (6204UU) This part replaces 91052-MBC-004.

91052-MAE-004

$24.70

21

OIL SEAL (28X47.2X7) (ARAI) | Use up to Frame SN 3M100224 This part replaces 91252-MC4-003.

91252-MC4-013

$6.49

21

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.49

22

DUST SEAL (45X55X5) (ARAI)

91258-ML7-003

$7.77
