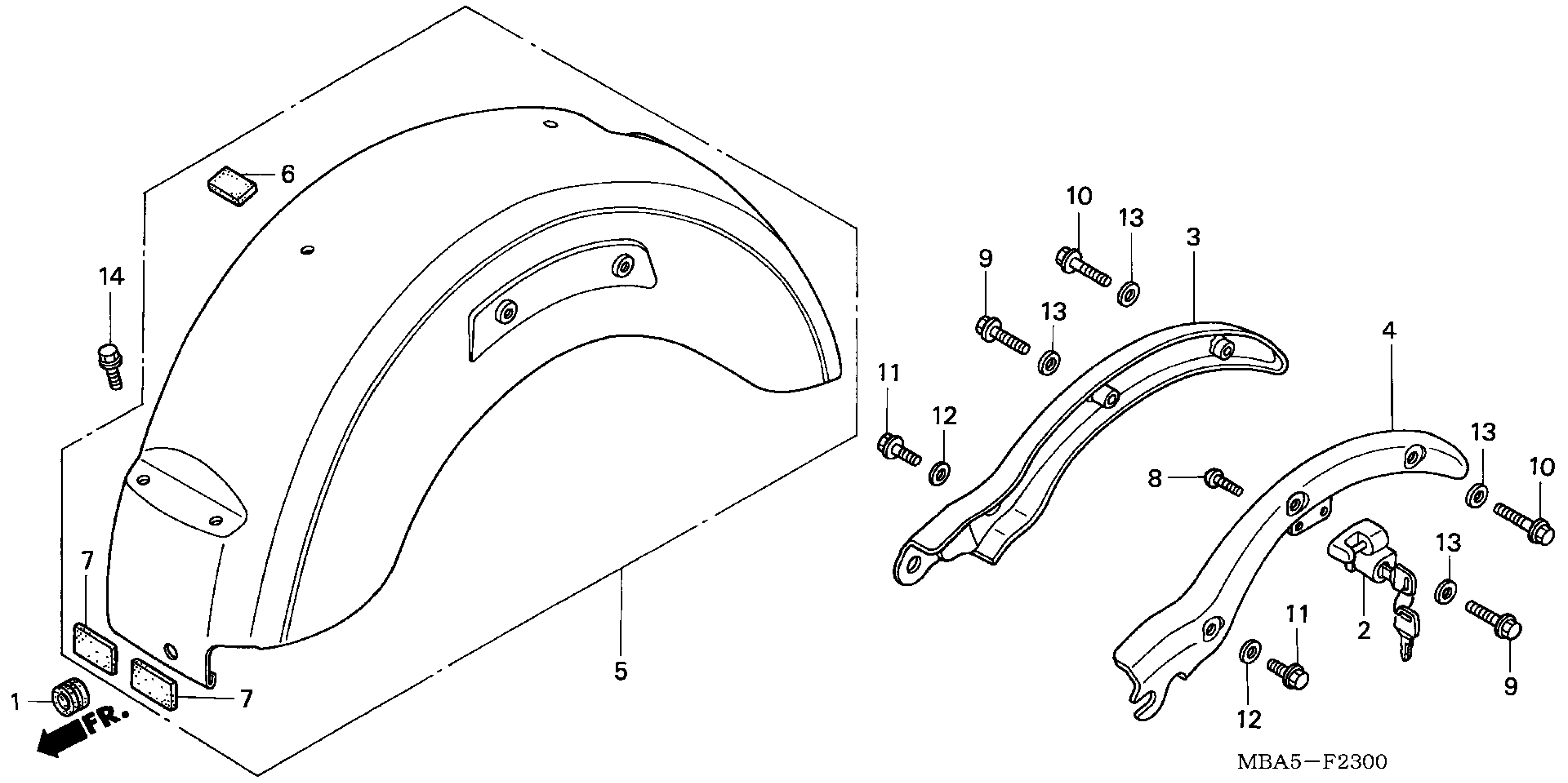

Honda VT750CDCA (02) SHADOW ACE 750 DELUXE, JPN, VIN# JH2RC446-2K600001 REAR FENDER Diagram

#

Description
Price

1

GROMMET B, TUBE

36038-657-000

Unavailable

2

HOLDER ASSY., HELMET (HONDALOCK)

50710-GB4-007

$67.46

3

GRAB RAIL, R.

77330-MBA-000

Unavailable

4

GRAB RAIL, L.

77340-MBA-000

Unavailable

5

FENDER SET, RR. (TYPE1) (WL)

80110-MBA-A60ZA

Unavailable

5

FENDER SET, RR. (TYPE2) (WL)

80110-MBA-A60ZB

Unavailable

6

RUBBER, PROTECTOR

81214-MT3-300

$2.29

7

RUBBER, RR. COWL

83856-GT4-940

$3.51

8

SCREW, PAN

90106-MAV-000

$1.99

9

BOLT, SPECIAL FLANGE (8X35)

90107-ME7-000

$4.80

10

BOLT, FLANGE (8X30)

90129-KR3-740

$4.06

11

BOLT, FLANGE (10X20)

90130-126-900

$4.18

12

WASHER, PLAIN (10MM)

90502-MM8-610

$2.80

13

WASHER, PLAIN (8MM)

90518-921-000

$1.19

14

BOLT, FLANGE (8X40)

95701-08040-00

$1.14
