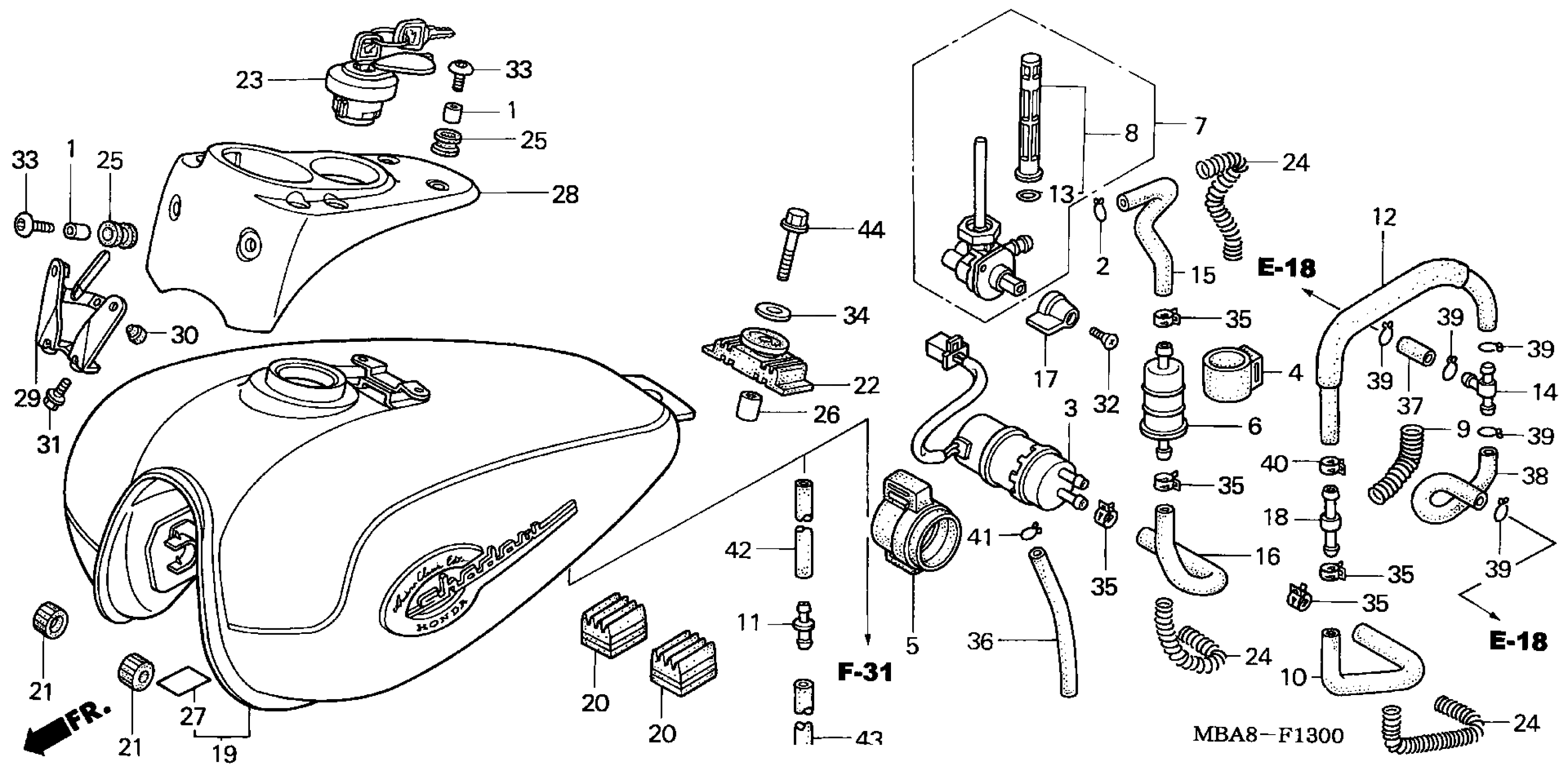

Honda VT750CDAAC (02) SHADOW ACE 750 DELUXE, JPN, VIN# JH2RC444-2K600001 FUEL TANK + FUEL PUMP Diagram

#

Description
Price

1

COLLAR, ADJUSTING COVER

11346-371-300

$9.70

2

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.56

3

PUMP ASSY., FUEL (MITSUBISHI) (MSDS) This part replaces 16710-MBA-611.

16710-MBA-612

$167.42

3

PUMP ASSY., FUEL (MITSUBISHI)

16710-MBA-612

$167.42

4

HOLDER, STRAINER

16711-MF2-000

$16.16

5

RUBBER, FUEL PUMP MOUNTING

16711-MZ7-000

$21.86

6

FILTER, FUEL

16900-MG8-003

$21.57

7

PETCOCK ASSY., FUEL

16950-MBA-023

$98.62

8

SCREEN SET, FUEL STRAINER

16952-MBA-003

$19.55

9

WIRE B, GUARD

16952-MF5-000

Unavailable

10

TUBE C, FUEL

16953-MBA-000

$8.80

12

TUBE D, FUEL

16955-MBA-000

$8.79

13

O-RING

16958-KM9-005

$3.71

14

JOINT, FUEL TUBE

16958-MB0-000

$11.11

15

TUBE A, FUEL

16961-MBA-000

$5.38

16

TUBE B, FUEL

16962-MBA-000

$7.36

17

LEVER, PETCOCK

16963-MY5-610

$12.30

18

JOINT, FUEL TUBE

16966-MR1-000

$7.23

19

TANK SET, FUEL (TYPE1) (WL) This part replaces 17520-MBA-600ZA.

17520-MBA-601ZA

Unavailable

19

TANK SET, FUEL (TYPE1) (WL)

17520-MBA-601ZA

Unavailable

20

CUSHION, FUEL TANK

17611-MBA-000

$7.58

21

CUSHION, FR. FUEL TANK

17611-KE8-000

$4.02

21

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.02

22

CUSHION, RR. FUEL TANK

17613-KY1-000

$10.72

23

CAP, FUEL FILLER This part replaces 17620-KR3-751.

17620-KR3-753

$65.11

24

WIRE, GUARD

17672-MY1-000

$6.62

25

RUBBER, PROTECTOR GASKET

18293-GN2-000

$2.68

26

COLLAR, CUSHION RUBBER BUSH (SHOWA)

52486-074-000

$3.61

27

TAPE A

64301-MN5-300

$2.69

28

COVER, METER

83510-MBA-000

Unavailable

29

STAY, FR. METER

83511-MBA-000

Unavailable

30

RUBBER, NUMBER PLATE BRACKET CUSHION

84702-MF2-670

$3.97

31

BOLT, FLANGE (6X16)

90003-KL4-000

Unavailable

32

SCREW, OVAL (5X12)

90111-MZ5-000

$3.68

33

SCREW, PAN (6X14)

90118-MR1-000

$2.95

34

WASHER (8.5X28)

90534-MV4-000

$2.66

35

CLAMP, CANISTER HOSE

90682-SA0-671

$7.32

36

BULK HOSE, FUEL (4.5X3000) (95001-450(95001-45001-60M)

95001-45003-50M

$70.04

37

BULK HOSE, FUEL (7.5X8000) (7.5X35)

95001-75008-60M

$100.95

38

BULK HOSE, FUEL (7.5X8000) (7.3X200)

95001-75008-60M

$100.95

39

CLIP, TUBE (B12)

95002-02120

$1.79

40

CLAMP, TUBE (D12)

95002-41200-08

$2.31

41

CLIP, TUBE (C9)

95002-50000

$1.16

44

BOLT, FLANGE (8X35)

95701-08035-00

$2.78
