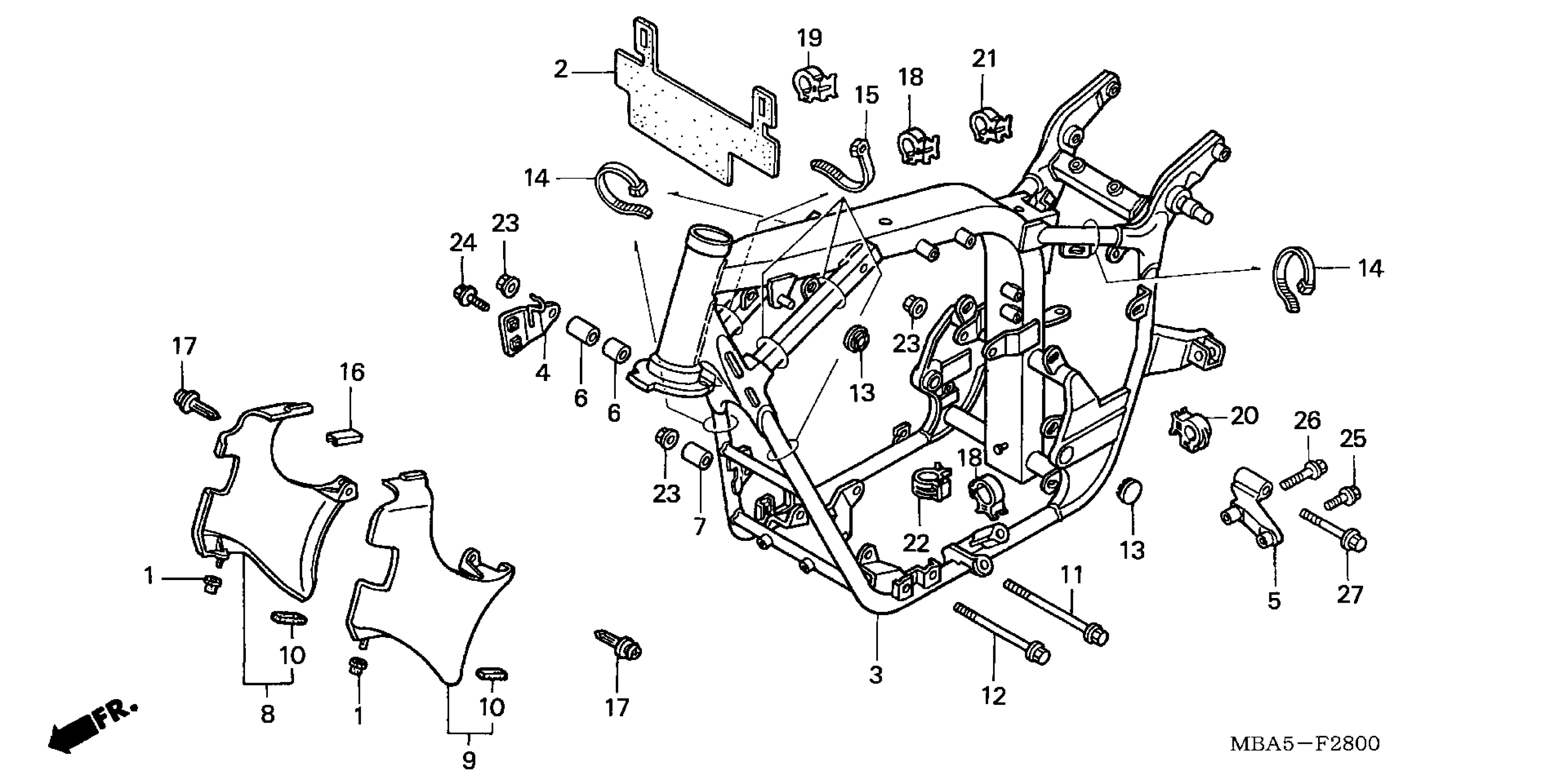

Honda VT750CDAAC (02) SHADOW ACE 750 DELUXE, JPN, VIN# JH2RC444-2K600001 FRAME Diagram

#

Description
Price

1

RUBBER, VISOR (LOWER)

19113-KCY-650

$2.64

2

RUBBER, HEAT GUARD

19126-MBA-000

Unavailable

3

FRAME *NH1* (BLACK)

50100-MBA-L60ZA

$1,884.14

4

PLATE, FR. ENGINE HANGER (UPPER)

50176-MBA-000

$14.46

5

STAY, RR. ENGINE HANGER

50178-MBA-000

$28.77

6

COLLAR, FR. ENGINE HANGER (B)

50197-KR1-760

$11.52

7

COLLAR, ENGINE HANGER

50363-KT7-000

$12.97

8

COVER, R. FR. SIDE

63500-MBA-650

Unavailable

9

COVER, L. FR. SIDE

63600-MBA-650

Unavailable

10

RUBBER B, SIDE COVER

83509-KV3-950

Unavailable

11

BOLT, FLANGE (10X205)

90102-KBV-000

$18.99

12

BOLT, FLANGE (10X180)

90106-MY9-000

$7.74

13

CAP, LOCK NUT

90302-ME5-000

$17.40

14

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.80

15

BAND, WIRE (BLACK)

90652-KT1-771

$4.16

16

SPRING, COWL SETTING

90655-GT4-000

$2.80

17

CLIP, BODY COVER

90683-GR1-003

$2.71

18

CLIP, CABLE (8MM)

90690-GHB-631

$1.99

19

CLIP, CABLE (10MM)

90690-GHB-641

$1.99

20

CLIP, CABLE (15MM)

90690-GHB-651

$1.99

21

CLIP, CABLE (20MM)

90690-GHB-661

$1.99

22

CLIP, CABLE (30MM)

90690-GHB-681

$2.80

23

NUT, FLANGE (10MM)

90303-428-900

$3.12

23

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.12

24

BOLT, FLANGE (8X16)

95701-08016-07

$1.59

25

BOLT, FLANGE (8X30)

95701-08030-07

$2.07

26

BOLT-WASHER (8X40) This part replaces 95701-08040-07.

90141-GGZ-J00

$2.20

27

BOLT, FLANGE (10X70)

95801-10070-07

$2.41
