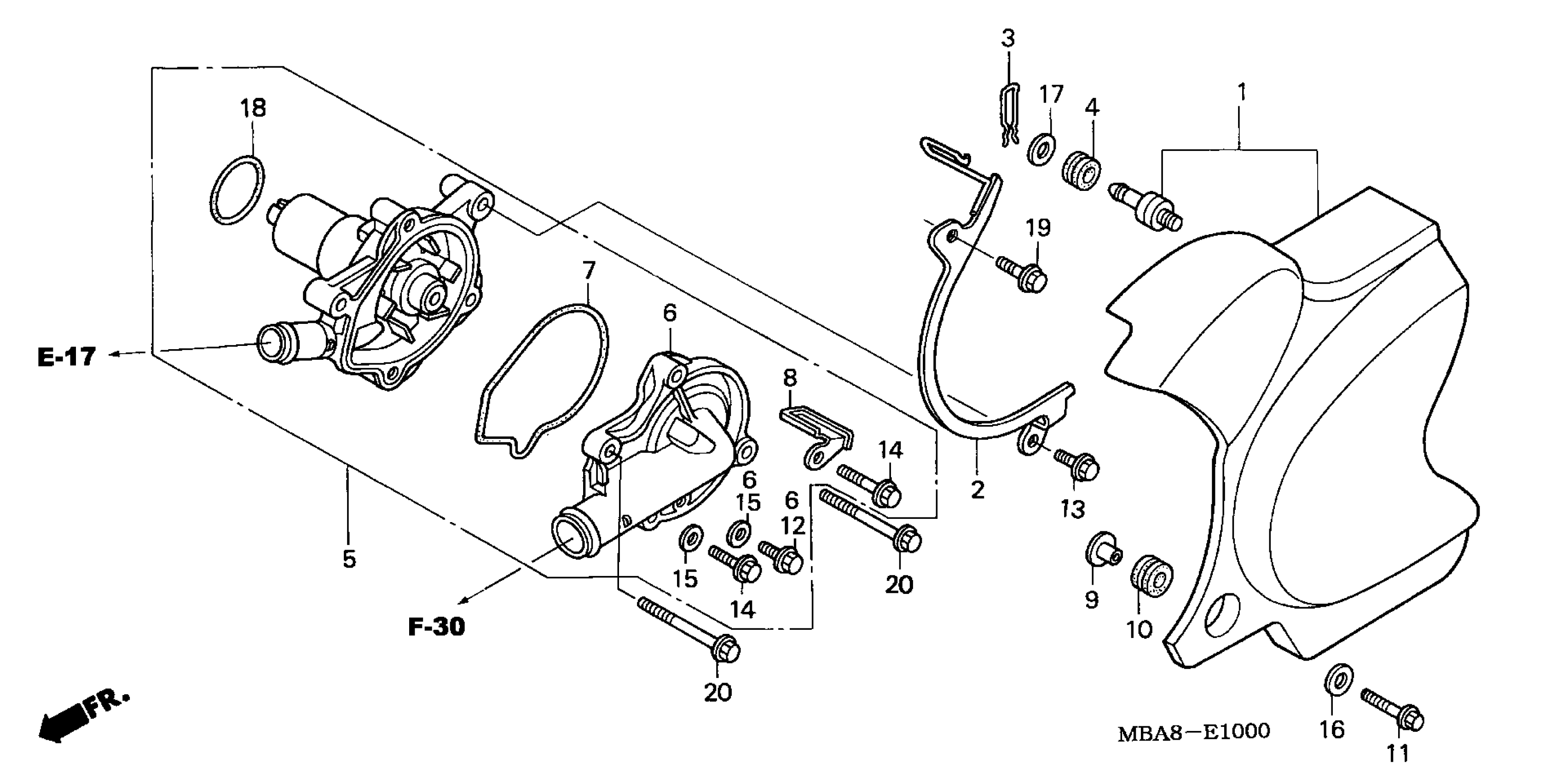

Honda VT750CDAA (03) SHADOW ACE 750 DELUXE, JPN, VIN# JH2RC443-3M700001 WATER PUMP Diagram

COVER, L. RR.

11350-MBA-710

Unavailable

PLATE, DRIVE CHAIN GUIDE

11355-MBA-000

$16.69

CLIP, L. RR. COVER

11356-MAH-000

$5.74

RUBBER, CUSHION

17622-GB7-900

$4.78

WATER PUMP ASSY.

19200-MBA-710

$269.38

COVER ASSY., WATER PUMP

19220-MBA-710

$87.13

GASKET, WATER PUMP COVER

19226-MM9-000

$4.49

CLAMP, OIL PRESSURE WIRE

32972-MS8-000

$9.30

COLLAR, CHAIN GUARD

52159-KB7-000

$6.34

CUSHION, AIR CLEANER

80105-MG9-000

$2.47

BOLT, FLANGE (6X25) (NSHF)

90006-GHB-670

$1.80

BOLT, FLANGE (6X12) (CT200)

90013-883-000

$1.54

BOLT, FLANGE (6X20) (CT200)

90022-888-010

$2.41

BOLT, FLANGE (6X25)

90121-MV9-670

$2.92

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

WASHER, PLAIN (9MM)

90503-SA0-000

$4.93

WASHER (9.5MM)

90504-MAH-000

$2.38

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45)

95701-06045-07

$2.06
