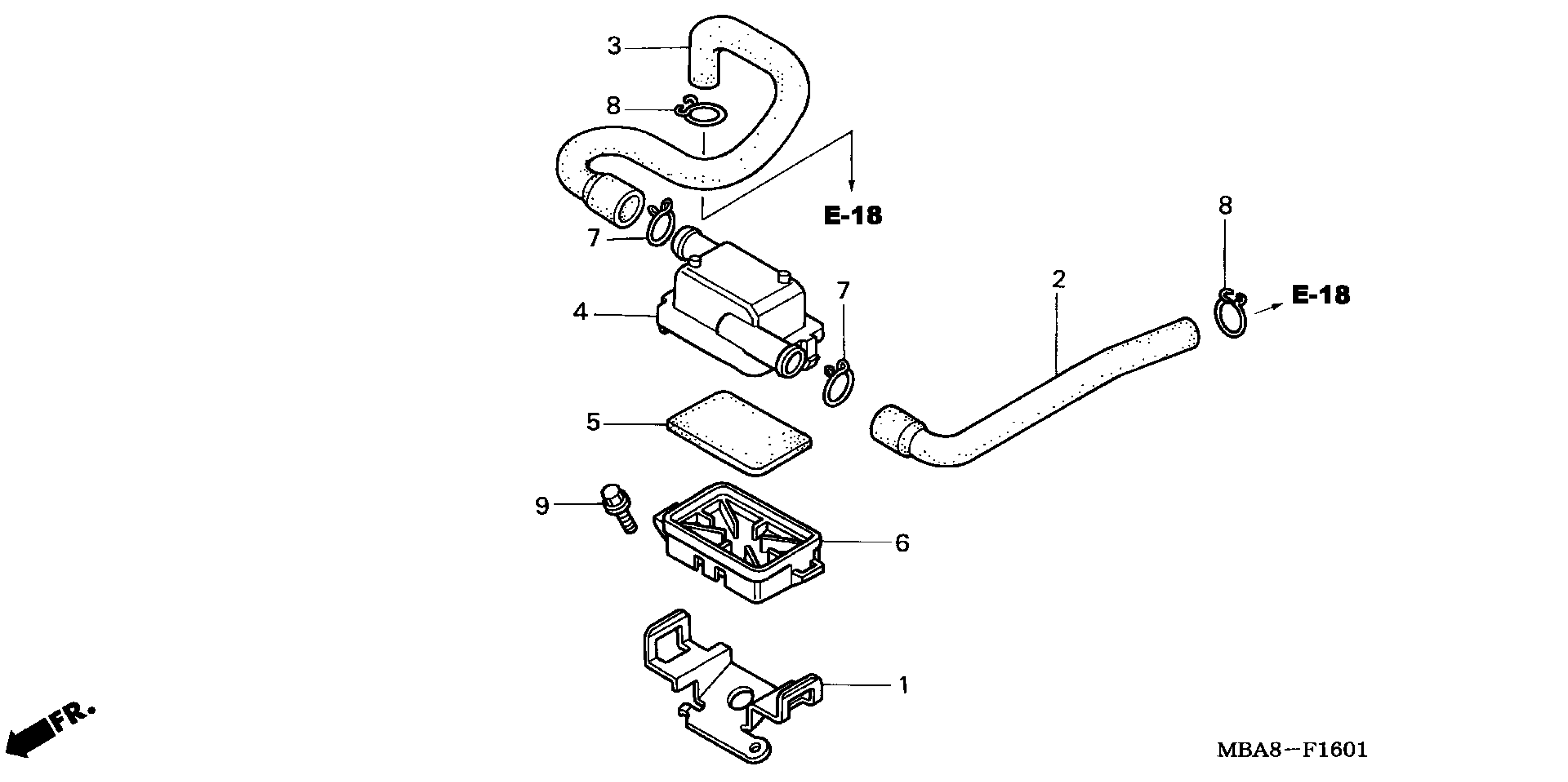

Honda VT750CDAA (03) SHADOW ACE 750 DELUXE, JPN, VIN# JH2RC443-3M700001 SUB AIR CLEANER Diagram

#

Description

Price

1

STAY, SUB-AIR CLEANER

17243-MBA-000

Unavailable

2

TUBE, FR. SUB-AIR CLEANER

17244-MBA-000

Unavailable

3

TUBE, RR. SUB-AIR CLEANER

17245-MBA-000

Unavailable

4

CASE, SUB-AIR CLEANER

17256-MAH-610

$10.15

5

FILTER, SUB-AIR CLEANER

17258-MAH-610

$2.80

6

COVER, SUB-AIR CLEANER

17259-MAA-A00

Unavailable

7

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

8

CLIP, TUBE (B16)

90643-MK3-781

$2.04

9

BOLT, FLANGE (6X12)

95701-06012-00

$1.81
