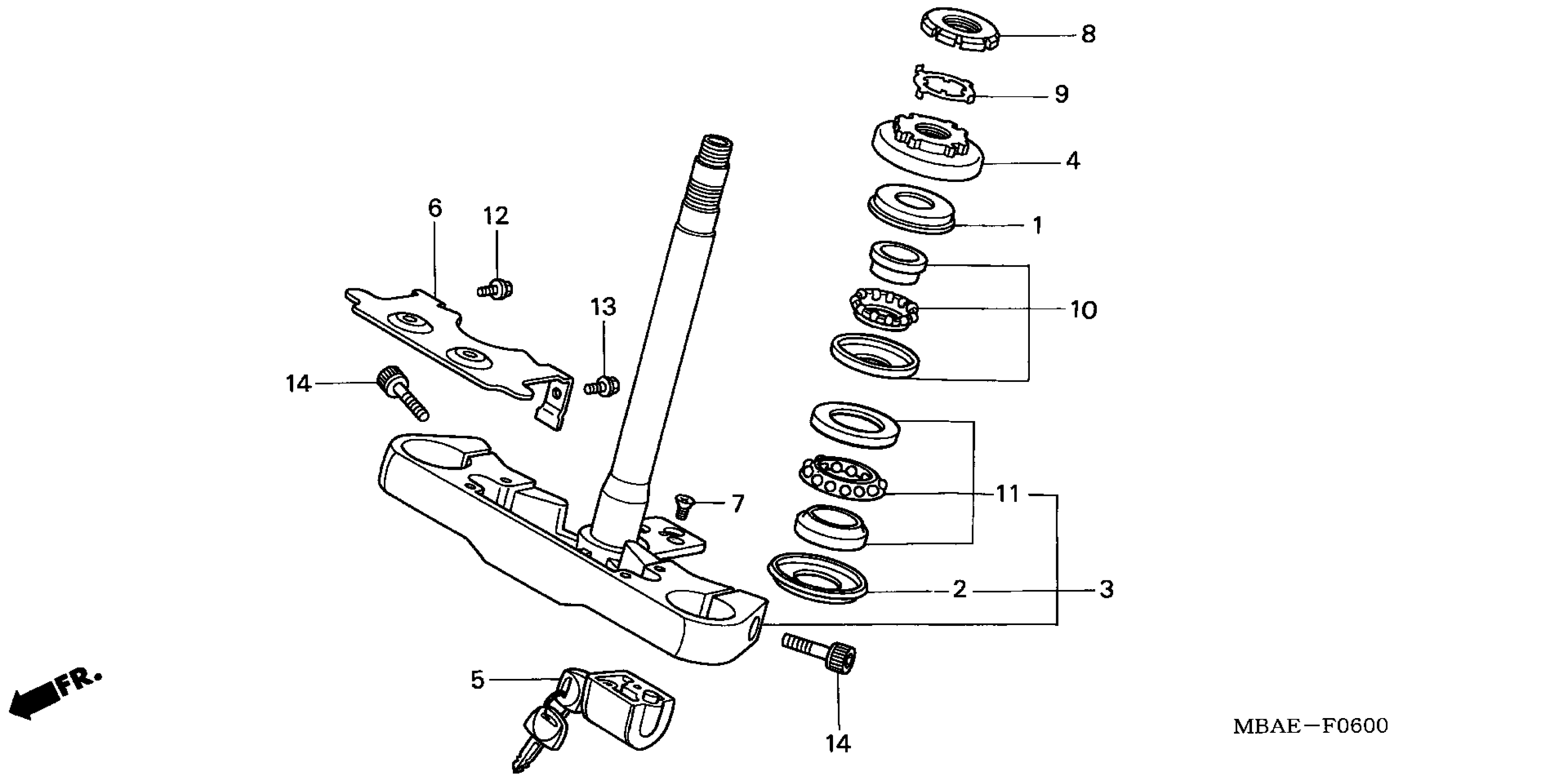

Honda VT750CDAA (03) SHADOW ACE 750 DELUXE, JPN, VIN# JH2RC443-3M700001 STEERING STEM Diagram

#

Description
Price

1

DUST SEAL, STEERING HEAD (ARAI)

53213-MB4-771

$12.13

2

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

3

STEM SUB-ASSY., STEERING

53219-MBA-H00

Unavailable

4

THREAD, STEERING HEAD TOP

53220-422-000

$32.73

5

LOCK, HANDLEBAR

53600-086-007

$47.89

5

LOCK, HANDLEBAR This part replaces 53600-126-921.

53600-086-007

$47.89

6

COVER, HEADLIGHT

61305-MBA-000

$15.66

7

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

8

THREAD B, STEERING HEAD TOP

90302-425-830

$21.73

9

WASHER, LOCK

90506-425-830

$7.05

10

BEARING, HEAD PIPE (UPPER) (KOYO)

91015-KT8-005

$36.57

11

BEARING, HEAD PIPE (LOWER) (KOYO)

91016-KT8-005

$36.57

12

BOLT, FLANGE (6X12)

96001-06012-07

$1.72

13

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

14

BOLT, SOCKET (10X25)

96700-10025-10

$2.51
