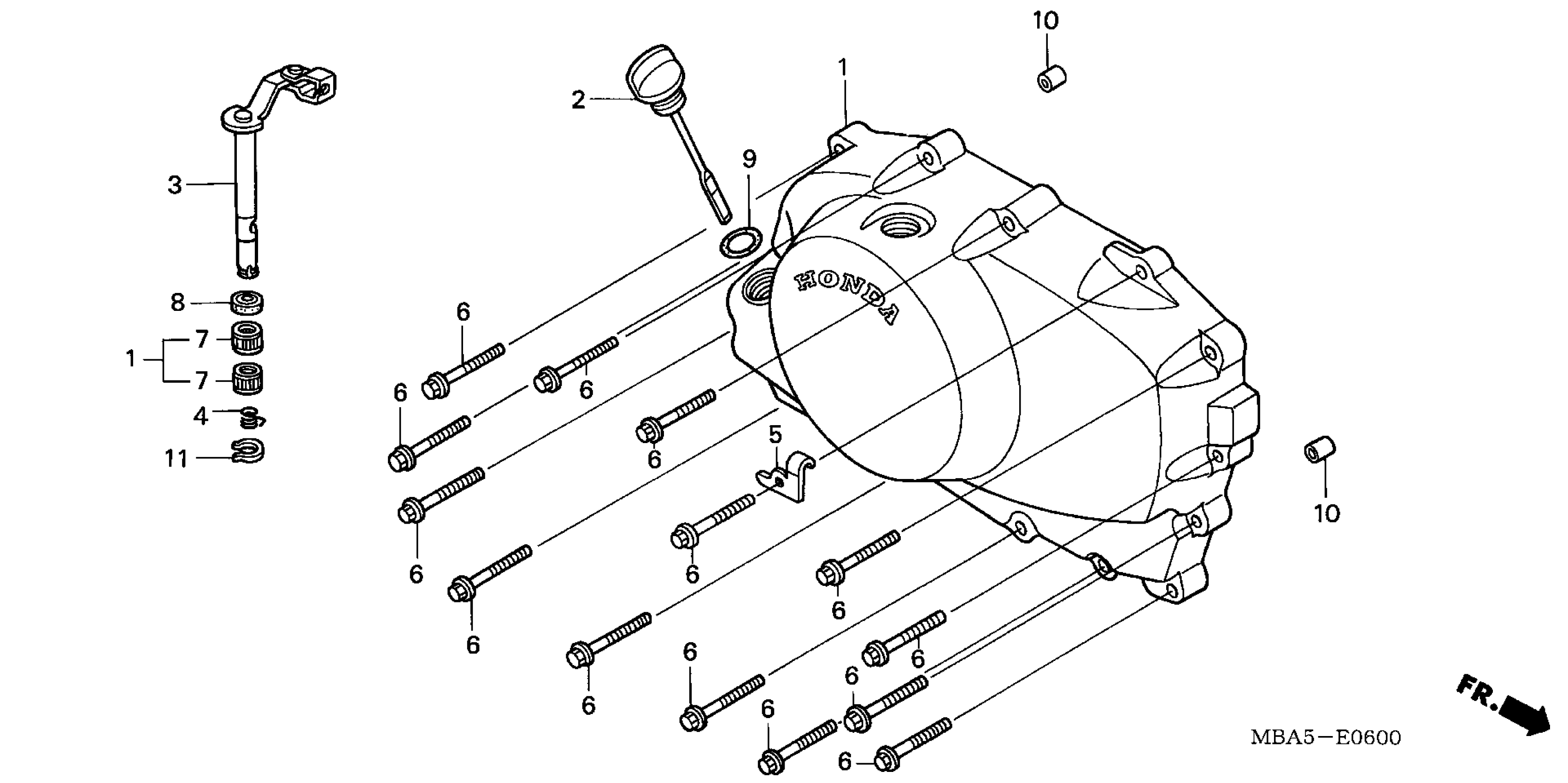

Honda VT750CDAA (03) SHADOW ACE 750 DELUXE, JPN, VIN# JH2RC443-3M700001 RIGHT CRANKCASE COVER Diagram

#

Description

Price

1

COVER, R. CRANKCASE This part replaces 11330-MBA-710.

11330-MBA-711

$284.37

1

COVER, R. CRANKCASE

11330-MBA-711

$284.37

2

DIPSTICK, OIL

15650-MBA-000

$17.95

3

LEVER, CLUTCH

22810-MBS-000

$49.90

4

SPRING, CLUTCH LEVER

22815-413-000

$2.95

5

RECEIVER, CLUTCH WIRE

22825-MEW-920

$7.12

5

RECEIVER, CLUTCH WIRE This part replaces 22825-MZ8-B40.

22825-MEW-920

$7.12

6

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.78

7

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$7.99

7

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$7.99

8

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

Unavailable

9

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.57

9

O-RING (21.5X3.2)

91307-425-003

$2.57

10

PIN, DOWEL (8X14)

94301-08140

$2.62

11

CIRCLIP, OUTER (10MM)

94510-10000

$1.01
