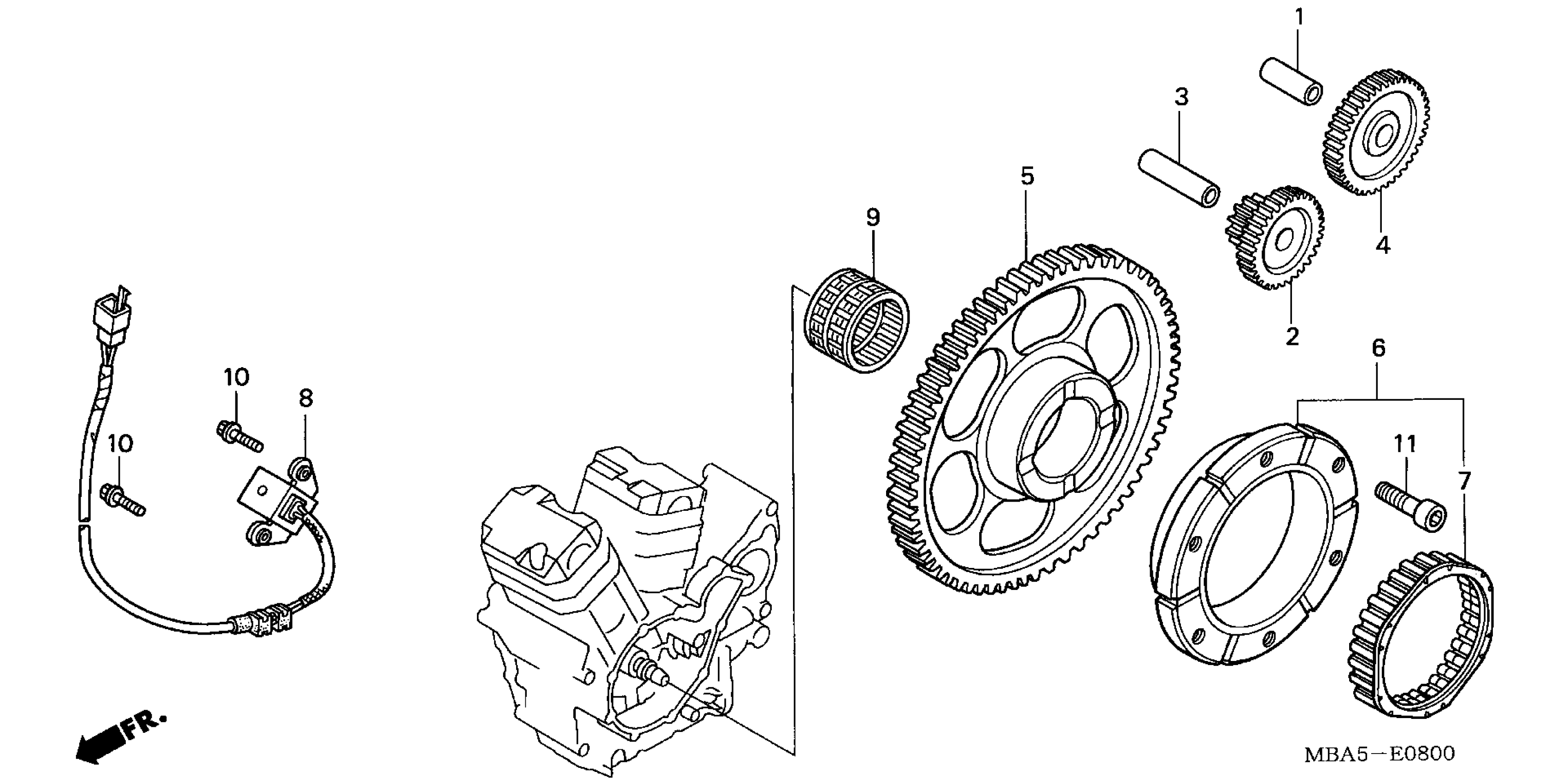

Honda VT750CDAA (03) SHADOW ACE 750 DELUXE, JPN, VIN# JH2RC443-3M700001 PULSE GENERATOR + STARTING CLUTCH Diagram

#

Description

Price

1

PIN, PISTON This part replaces 13111-GK8-000.

13111-GS7-000

$9.55

1

PIN, PISTON

13111-GS7-000

$9.55

1

PIN, PISTON This part replaces 13111-122-000.

13111-GS7-000

$9.55

2

GEAR, STARTER REDUCTION (39T/12T) This part replaces 28101-MN8-000.

28101-MGS-D30

$80.25

3

PIN (10X44)

28102-ME9-000

$10.35

4

GEAR, STARTER (51T) This part replaces 28106-ME9-010.

28106-MGS-D30

$77.95

5

GEAR, STARTER DRIVEN (88T)

28110-MV1-000

Unavailable

6

CLUTCH OUTER ASSY., STARTING

28125-MBA-003

$233.08

7

CLUTCH, ONE-WAY

28126-MAA-A01

$85.77

8

GENERATOR, PULSE This part replaces 30300-MBA-610.

30300-MBA-611

$62.15

9

BEARING, NEEDLE (32X40X23)

91002-MAY-003

Unavailable

10

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

11

BOLT, SOCKET (8X35)

96700-08035-10

$2.04
