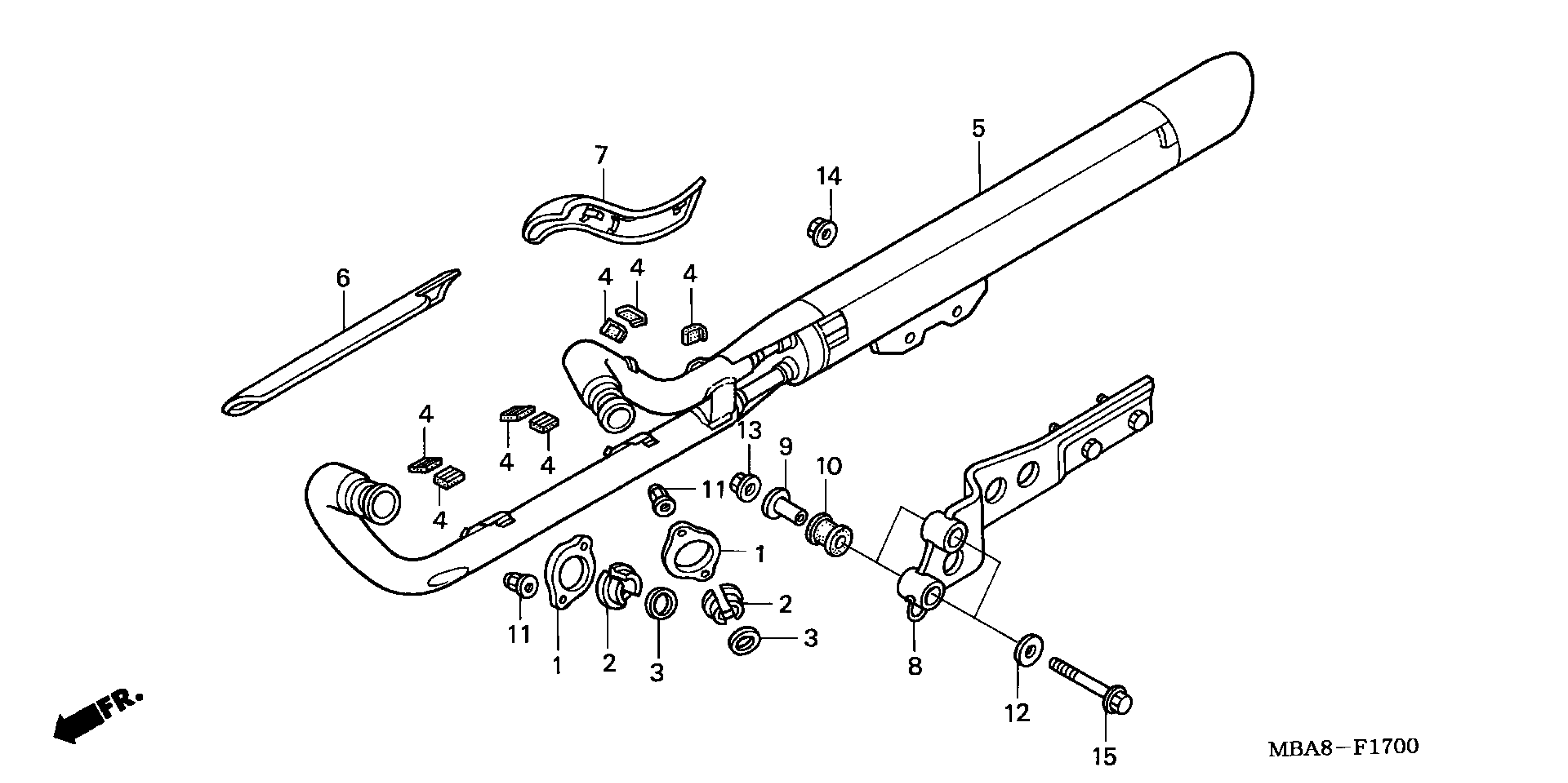

Honda VT750CDAA (03) SHADOW ACE 750 DELUXE, JPN, VIN# JH2RC443-3M700001 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-MBA-003

$26.53

2

COLLAR, EX. PIPE JOINT

18233-MBA-000

$15.27

3

GASKET, EX. PIPE

18291-MM5-860

$5.17

4

RUBBER, PROTECTOR

18293-MN0-000

$2.13

5

MUFFLER, EX.

18300-MBA-671

Unavailable

6

PROTECTOR, FR. EX. PIPE

18423-MBA-003

$87.44

7

PROTECTOR, RR. EX. PIPE

18424-MBA-003

$74.93

8

BRACKET, MUFFLER

18455-MBA-000

Unavailable

9

COLLAR, MOUNTING RUBBER

50607-KK6-000

$9.13

10

RUBBER, MUFFLER MOUNTING

50608-KV0-000

$6.22

11

NUT, CAP (8MM)

90304-ME1-670

$5.94

12

WASHER (8.3MM)

90534-011-000

$1.49

13

NUT, FLANGE (8MM)

94050-08000

$1.49

14

NUT, FLANGE (8MM)

94050-08070

$1.49

15

BOLT, FLANGE (8X60)

95701-08060-00

$1.49
