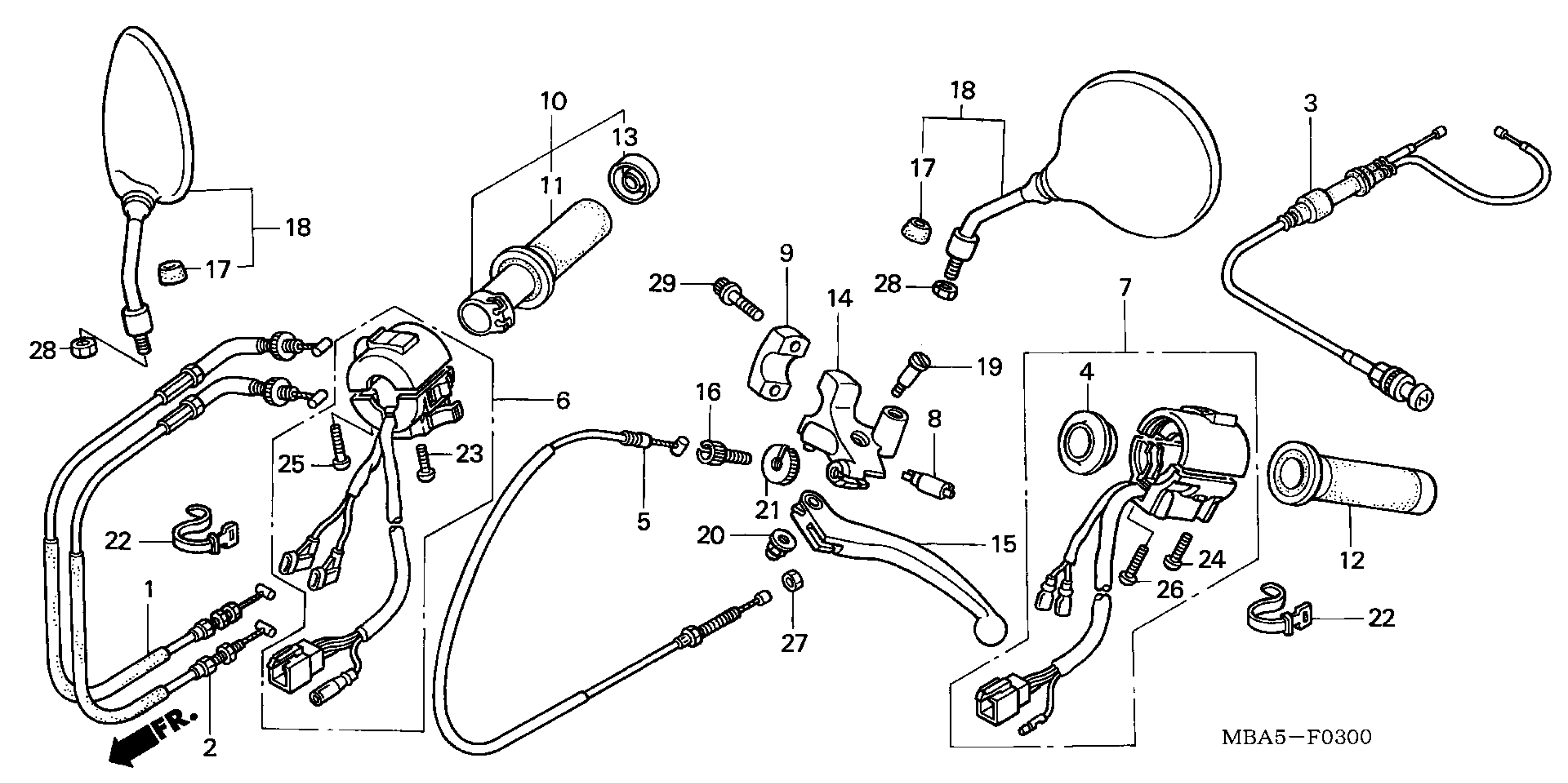

Honda VT750CDAA (03) SHADOW ACE 750 DELUXE, JPN, VIN# JH2RC443-3M700001 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MBA-000

$30.95

2

CABLE B, THROTTLE

17920-MBA-000

$30.95

3

CABLE, CHOKE

17950-MBA-000

$52.16

4

ADAPTER

17962-MR1-000

$17.70

5

CABLE, CLUTCH

22870-MBA-000

$32.20

6

SW ASSY,ST ENGSTO This part replaces 35013-MBA-000.

35130-MBK-J01

$98.78

6

SW ASSY,ST ENGSTO This part replaces 35013-MBA-010.

35130-MBK-J01

$98.78

6

SW ASSY,ST ENGSTO This part replaces 35130-MBK-J20.

35130-MBK-J01

$98.78

7

SWITCH SET, TURN SIGNAL

35020-MBA-000

$114.91

8

SWITCH, FR. LEVER (TOYO)

35330-413-003

$20.11

9

HOLDER, MASTER CYLINDER (NISSIN)

45517-MR1-671

$25.01

10

GRIP, R.

53145-MM8-000

$39.08

11

GRIP, R.

53145-MM8-000

$39.08

11

GRIP, R. This part replaces 53165-MM8-000.

53145-MM8-000

$39.08

12

GRIP, L. HANDLE

53166-KCR-000

$32.91

13

CAP, GRIP END

53167-MM8-000

$8.63

14

BRACKET, HANDLE LEVER

53172-MR1-000

$32.76

15

LEVER, L. HANDLE

53178-MAH-000

$17.39

16

BOLT, WIRE ADJUSTING

53192-268-000

$6.23

17

COVER, LOCK NUT

88113-KN8-000

$5.72

18

MIRROR

88210-MBA-670

$59.88

19

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.24

20

NUT, CAP (6MM)

90201-415-000

Unavailable

21

NUT, FIXING

90321-MA6-750

$9.59

22

BAND, WIRE HARNESS

90652-MB0-000

$3.19

23

SCREW, PAN (5X20)

93500-05020-0A

$0.82

24

SCREW, PAN (5X22)

93500-05022-0B

$1.28

25

SCREW, PAN (5X25)

93500-05025-0A

$1.28

26

SCREW, PAN (5X32)

93500-05032-0B

$1.34

27

NUT, HEX. (8MM)

94002-08070-0S

$1.31

28

NUT, HEX. (10MM)

94031-10020

$0.90

29

BOLT, SOCKET (6X22)

96600-06022-10

$1.94
