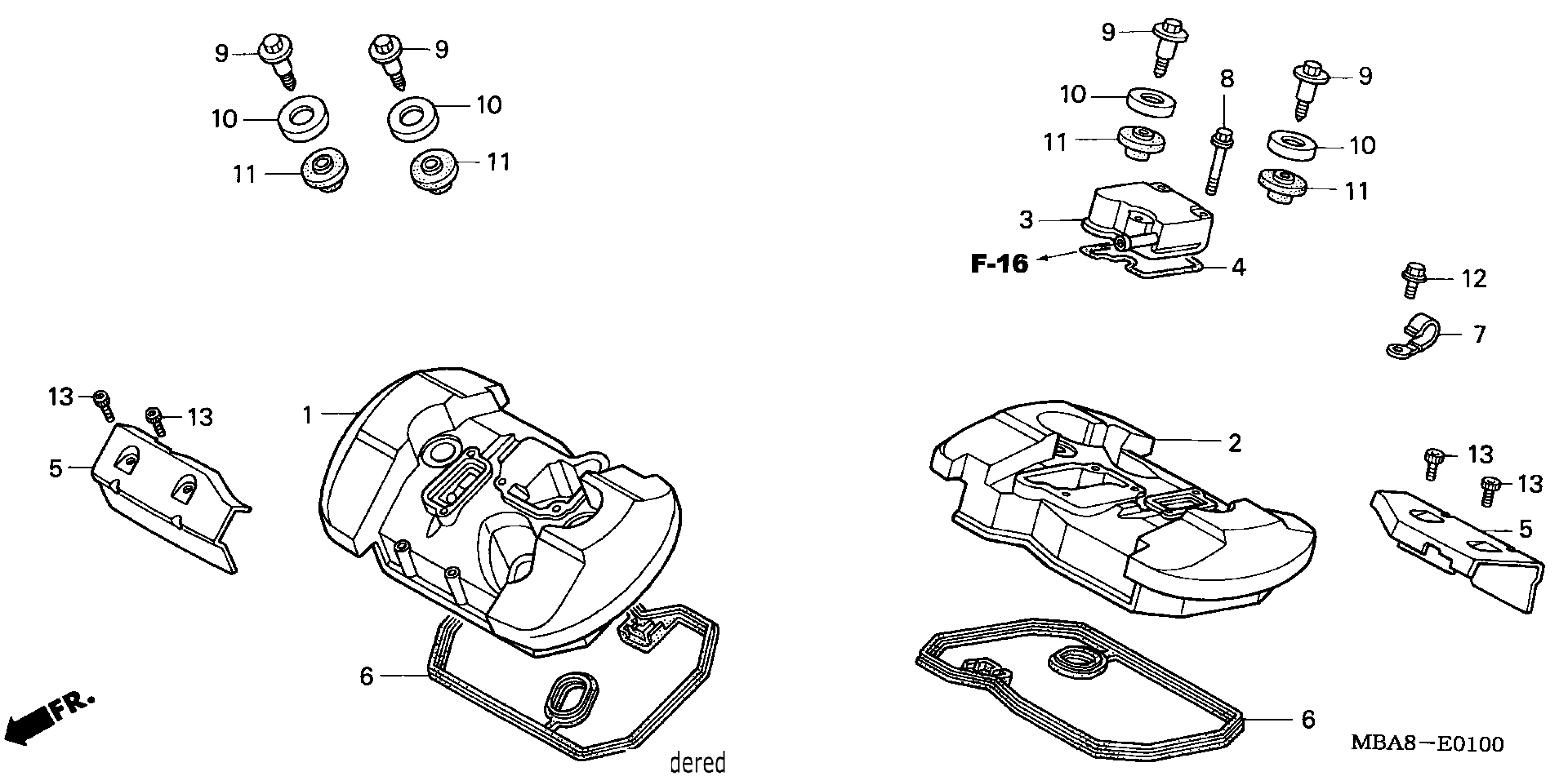

Honda VT750CDAA (03) SHADOW ACE 750 DELUXE, JPN, VIN# JH2RC443-3M700001 CYLINDER HEAD COVER Diagram

COVER, FR. CYLINDER HEAD

12311-MBA-710

Unavailable

COVER, RR. CYLINDER HEAD

12321-MBA-710

Unavailable

COVER, BREATHER

12331-MBA-000

Unavailable

GASKET, BREATHER COVER

12332-MBA-000

$6.71

COVER, OVER HEAD

12340-MBA-710

$47.23

GASKET, HEAD COVER

12391-MZ8-650

$19.00

CLAMP, OIL HOSE

55109-GAA-000

$2.64

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$3.79

BOLT, HEAD COVER

90011-MBA-000

$6.28

WASHER, MOUNTING RUBBER

90541-MBA-000

$3.68

RUBBER, SETTING

90542-MZ8-650

$3.38

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

BOLT, SOCKET (6X25)

96600-06025-00

$1.71
