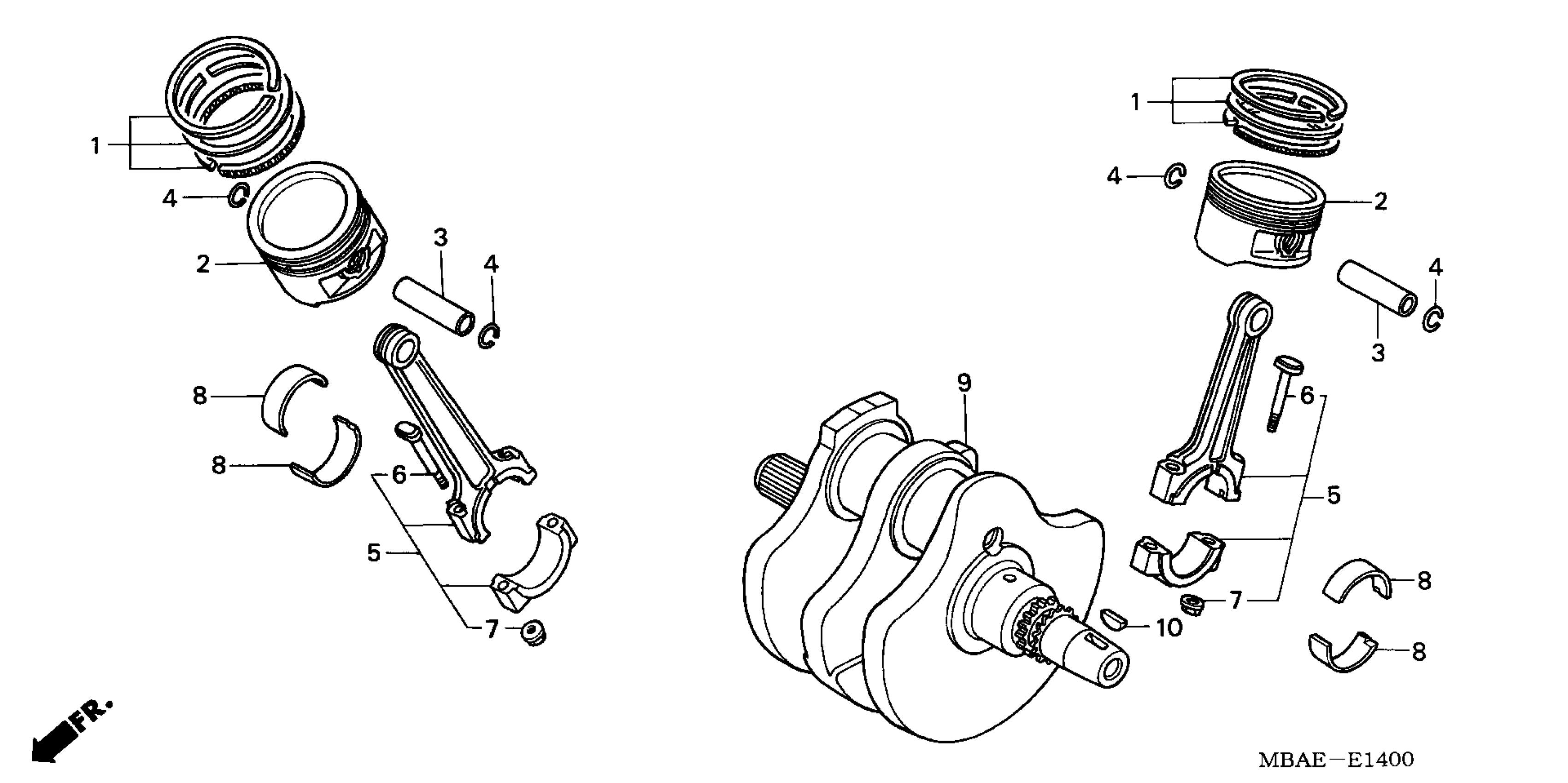

Honda VT750CDAA (03) SHADOW ACE 750 DELUXE, JPN, VIN# JH2RC443-3M700001 CRANKSHAFT + PISTON Diagram

RING SET, PISTON (STD)

13011-MBA-A40

$54.64

RING SET, PISTON (0.25) | (Optional).

13021-MBA-A40

$57.95

RING SET, PISTON (0.50) | (Optional).

13031-MBA-A40

$57.95

PISTON (STD)

13101-MBA-000

Unavailable

PISTON (OVER SIZE) (0.25) | (Optional).

13102-MBA-305

Unavailable

PISTON (OVER SIZE) (0.50) | (Optional).

13103-MBA-305

Unavailable

PIN, PISTON

13111-MT3-000

$11.04

CLIP, PISTON PIN (18MM)

13112-MF5-000

$2.39

ROD ASSY., CONNECTING

13210-MBA-A40

Unavailable

BOLT, CONNECTING ROD

13213-463-003

$16.11

NUT, CONNECTING ROD

13215-ML7-000

$3.89

BEARING A, CONNECTING ROD (BLUE) This part replaces 13216-MF5-003.

13216-MF5-004

Unavailable

BEARING A, CONNECTING ROD (BLUE)

13216-MF5-004

Unavailable

BEARING B, CONNECTING ROD (BLACK)

13217-MF5-003

$18.93

BEARING B, CONNECTING ROD (BLACK) This part replaces 13217-MF5-004.

13217-MF5-003

$18.93

BEARING C, CONNECTING ROD (BROWN)

13218-MF5-003

Unavailable

CRANKSHAFT

13310-MBA-A40

Unavailable

KEY, WOODRUFF (25X14)

90741-413-000

$2.56
