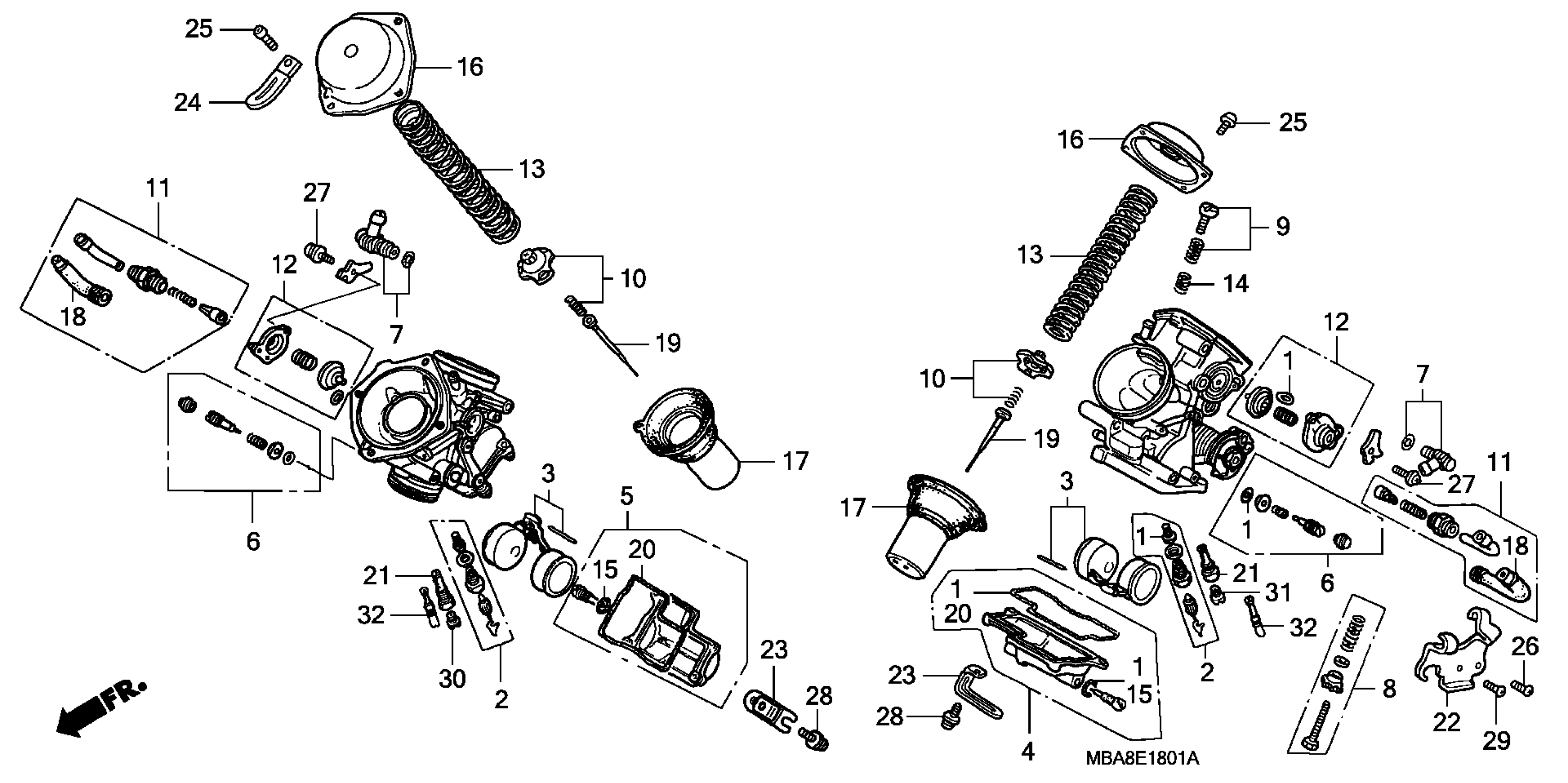

Honda VT750CDAA (03) SHADOW ACE 750 DELUXE, JPN, VIN# JH2RC443-3M700001 CARBURETOR (COMPONENT PARTS) Diagram

#

Description
Price

1

GASKET SET

16010-MZ8-B40

$41.04

2

VALVE SET, FLOAT

16011-MZ8-B40

$48.83

3

FLOAT SET

16013-MAH-000

$49.54

4

CHAMBER SET, FLOAT

16015-MAH-750

$131.75

5

CHAMBER SET, FLOAT This part replaces 16015-MZ8-B40.

16015-MBL-731

Unavailable

6

SCREW SET

16016-MBA-980

$19.20

7

JOINT SET

16026-MR1-004

$41.04

8

SCREW SET

16028-MAH-000

$55.95

9

SCREW SET This part replaces 16029-KE8-004.

16029-KEJ-900

Unavailable

9

SCREW SET This part replaces 16029-MN4-003.

16029-KEJ-900

Unavailable

10

PLATE SET, VALVE

16037-ME5-671

$29.52

11

VALVE SET, STARTER

16046-MAV-000

$54.49

12

VALVE SET, AIR CUT

16048-MBA-600

Unavailable

13

SPRING, COMPRESSION COIL

16051-MBA-670

Unavailable

14

SPRING

16052-ME9-672

$5.67

15

O-RING (1.3X4.3)

16075-GHB-640

$2.92

16

TOP

16107-MBA-600

Unavailable

17

PISTON, VACUUM

16111-MBA-600

$150.92

18

CAP, CABLE SEALING

16118-GB4-003

$13.07

19

NEEDLE, JET

16131-MBA-670

Unavailable

20

GASKET, FLOAT CHAMBER

16163-MAH-750

$35.12

21

HOLDER, NEEDLE JET

16165-MBA-600

$34.51

21

HOLDER, NEEDLE JET This part replaces 16165-MBA-670.

16165-MBA-600

$34.51

22

STAY, WIRE

16169-MR1-004

Unavailable

23

CLIP, PLATE

16179-ME9-751

$10.15

24

CLIP, PLATE

17191-MN5-740

Unavailable

25

SCREW, PAN (4X10)

93500-04010-0A

$1.49

25

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$1.49

26

SCREW-WASHER (4X8)

93892-04008-00

$1.49

26

SCREW-WASHER (4X8) This part replaces 93892-04008-10.

93892-04008-00

$1.49

27

SCREW-WASHER (4X12)

93892-04012-00

$1.49

27

SCREW-WASHER (4X12) This part replaces 93892-04012-10.

93892-04012-00

$1.49

28

SCREW-WASHER (4X16)

93892-04016-00

$1.49

28

SCREW-WASHER (4X16) This part replaces 93892-04016-10.

93892-04016-00

$1.49

29

SCREW-WASHER (5X12)

93892-05012-00

$1.49

29

SCREW-WASHER (5X12) This part replaces 93892-05012-10.

93892-05012-00

$1.49

30

JET, MAIN (#105)

99101-GHB-1050

$6.40

31

JET (#110) This part replaces 99101-GHB-1100.

99101-MBA-1100

$9.11

32

JET, SLOW (#40)

99103-MT2-0400

$12.25
