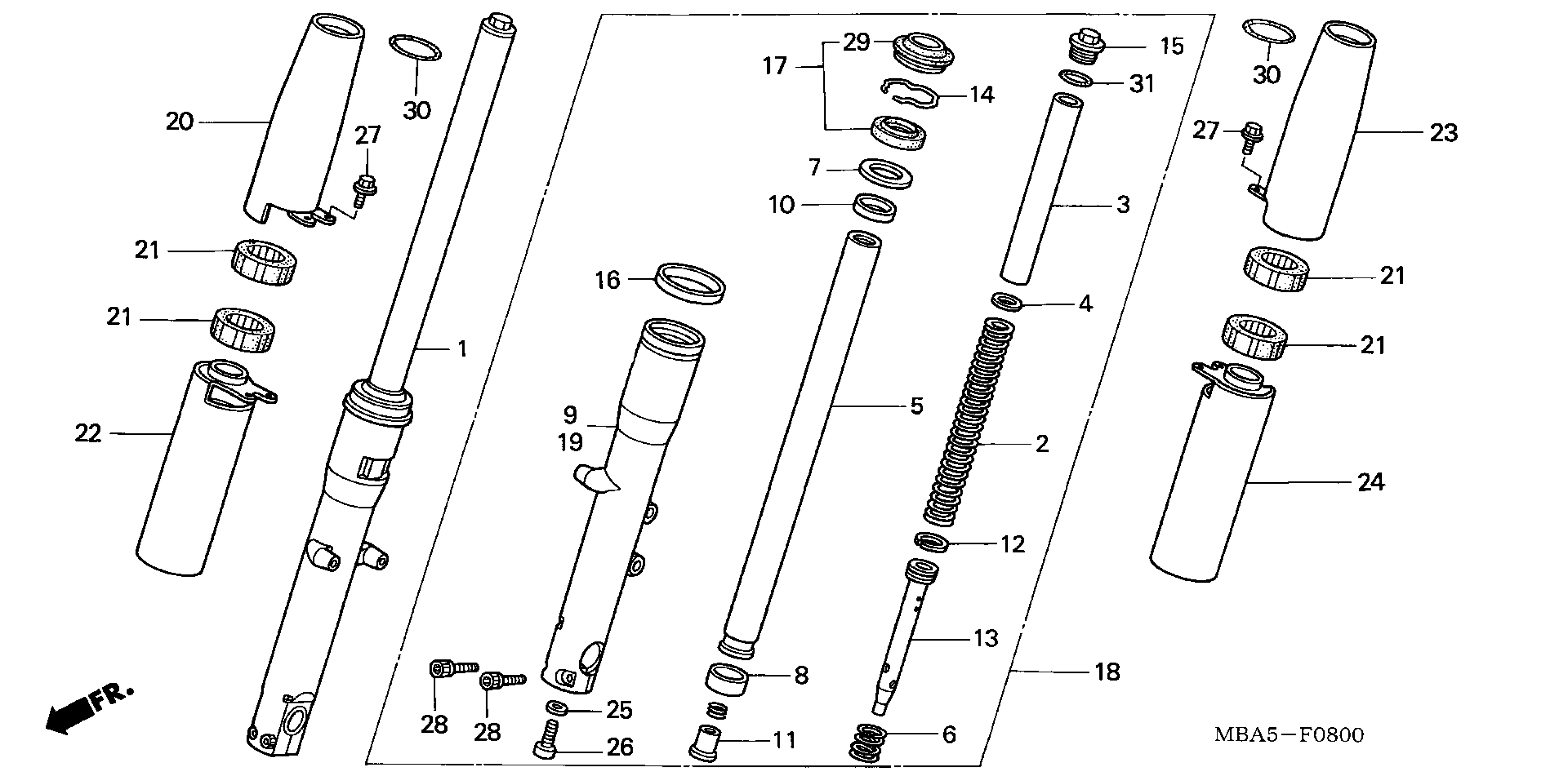

Honda VT750CDAA (02) SHADOW ACE 750 DELUXE, JPN, VIN# JH2RC443-2K600001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-MBA-611

Unavailable

2

SPRING, FR. FORK

51401-MBA-003

Unavailable

3

SPACER, SPRING

51402-MBA-611

Unavailable

4

WASHER

51404-MBA-003

$5.22

5

PIPE, FR. FORK

51410-MBA-003

Unavailable

6

SPRING, FR. REBOUND

51411-MBA-003

$6.75

7

WASHER

51412-KA4-004

$6.75

8

BUSH, SLIDER This part replaces 51415-MBA-003.

51415-MBA-013

$15.27

8

BUSH, SLIDER

51415-MBA-013

$15.27

9

CASE, R. (LOWER)

51421-MBA-003

$316.36

10

BUSH, FORK PIPE

51424-KZ1-671

$22.15

11

PIECE, OIL LOCK

51431-MBA-003

$16.86

12

RING, PISTON

51437-MBA-003

Unavailable

13

PIPE, SEAT

51440-MBA-003

Unavailable

14

RING, SNAP

51447-KA4-004

$4.24

15

BOLT, FR. FORK

51450-MBA-003

Unavailable

16

GUIDE, COVER

51460-MCK-A01

$9.96

17

SEAL SET, FR. FORK

51490-MBA-003

$32.75

18

FORK ASSY., L. FR.

51500-MBA-611

Unavailable

19

CASE, L. (LOWER)

51521-MBA-003

Unavailable

20

COVER, R. FR. FORK TOP

51610-MBA-000

Unavailable

21

MOUNT, FR. FORK COVER

51611-MBA-000

$9.75

22

COVER, R. FR. FORK (LOWER)

51620-MBH-000

Unavailable

23

COVER, L. FR. FORK TOP

51660-MBA-000

Unavailable

24

COVER, L. FR. FORK (LOWER)

51670-MBH-000

Unavailable

25

WASHER, OIL BOLT

52442-KA3-731

$2.34

26

BOLT, SOCKET (10X25)

90116-KK0-004

$5.94

27

BOLT, FLANGE (6X12)

90123-MBA-000

$2.92

28

BOLT, SOCKET (8X35)

90151-MBA-003

$5.55

29

DUST SEAL

91254-MBA-003

$18.02

30

O-RING (39.5X5)

91305-MC7-000

$3.31

31

O-RING (31.7X3.5)

91356-KT1-671

$3.13
