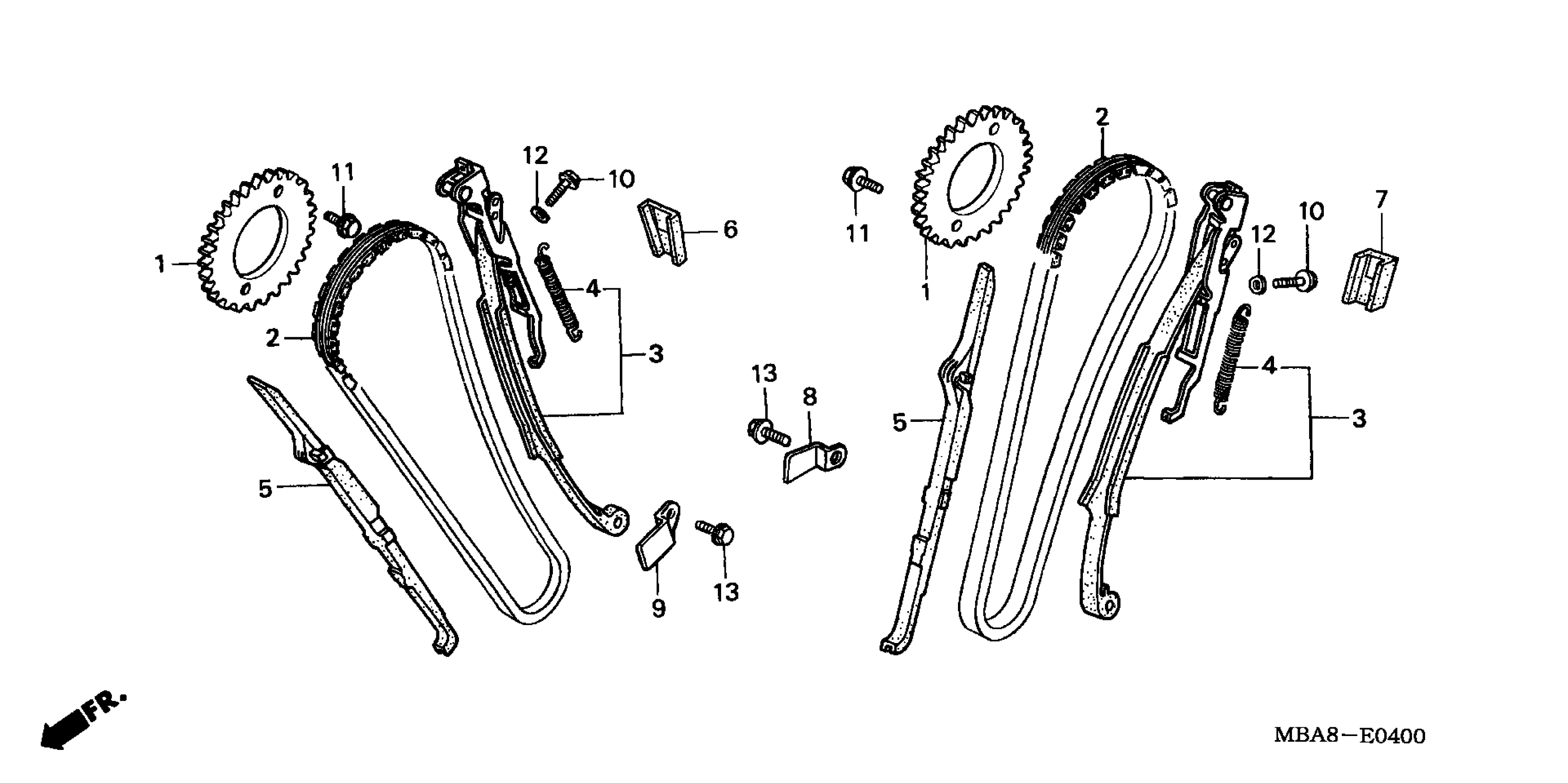

Honda VT750CDAA (02) SHADOW ACE 750 DELUXE, JPN, VIN# JH2RC443-2K600001 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM

14322-MCB-610

$56.36

CHAIN, CAM (118L) (BORG WARNER)

14401-MAN-621

$102.16

TENSIONER, CAM CHAIN

14510-MR1-000

$164.52

SPRING, CAM CHAIN TENSIONER (NIPPON HATSUJO)

14516-MG8-003

$4.78

GUIDE, CAM CHAIN

14522-MV1-000

$52.43

RUBBER, FR. CUSHION

14531-MN8-000

$9.67

RUBBER, RR. CUSHION

14532-MN8-000

$9.67

PLATE, TENSIONER SETTING

14623-MBA-000

$5.66

PLATE, TENSIONER SETTING

14623-MV1-000

$4.87

BOLT, FLANGE (6X18)

90001-MZ8-U40

$1.90

BOLT, FLANGE (6X18) This part replaces 90021-MR1-770.

90001-MZ8-U40

$1.90

BOLT, SPECIAL FLANGE (7X13)

90086-MZ8-H00

$2.98

WASHER, SEALING

90441-MR1-770

$2.92

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
