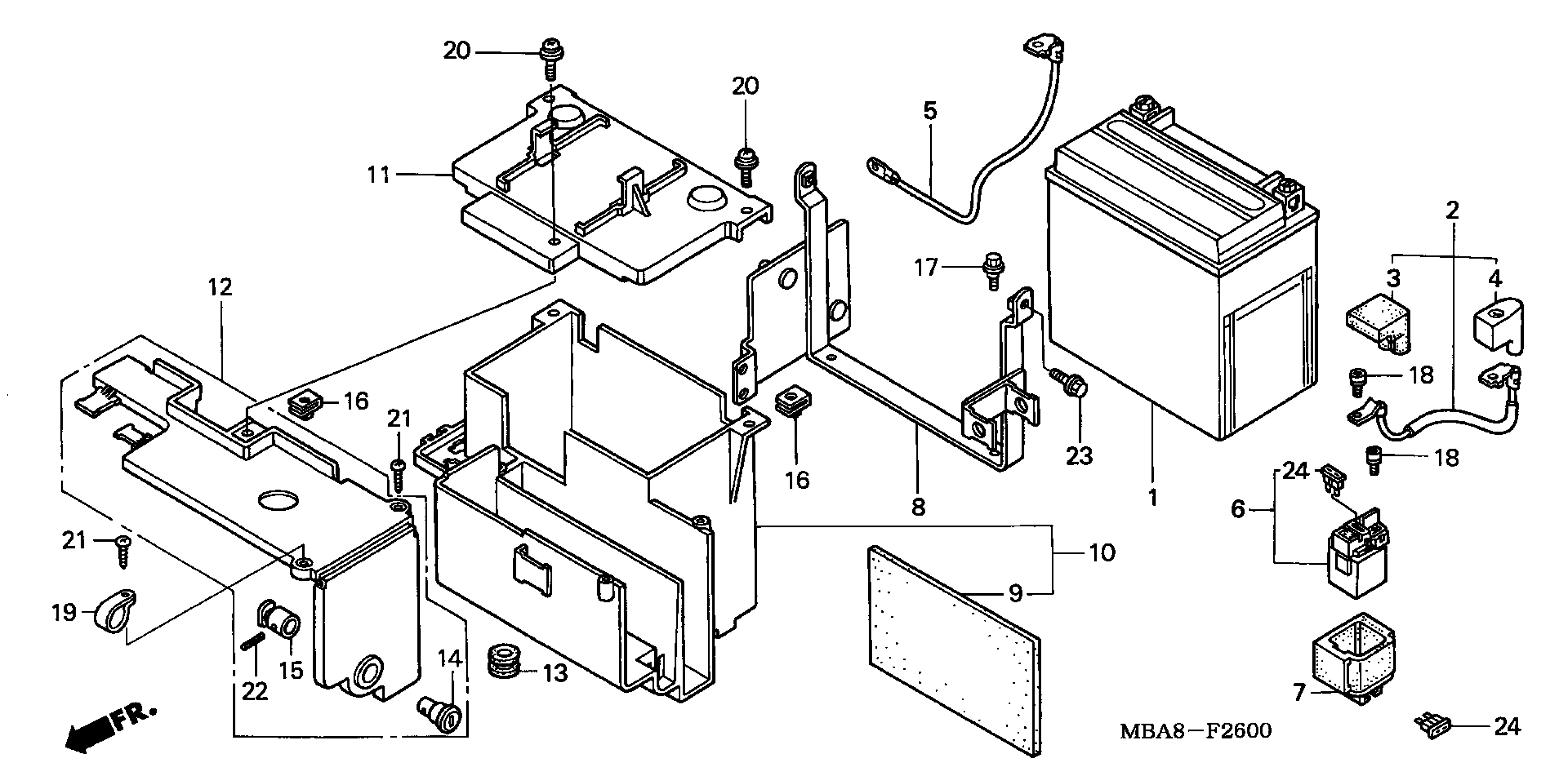

Honda VT750CDAA (02) SHADOW ACE 750 DELUXE, JPN, VIN# JH2RC443-2K600001 BATTERY Diagram

#

Description
Price

1

BATTERY (YTX14-BS) (YUASA) (MSDS) This part replaces 31500-HA7-678.

31500-HC4-726AH

Unavailable

1

BATTERY (YTX14-BS) (YUASA) (MSDS) This part replaces 31500-HC4-726.

31500-HC4-726AH

Unavailable

1

BATTERY (YTX14-BS) (YUASA)

31500-HC4-726AH

Unavailable

2

CABLE, STARTER BATTERY

32401-MBA-610

Unavailable

3

COVER, STARTER MAGNETIC TERMINAL This part replaces 32406-MT4-000.

32406-MT4-010

$5.91

4

COVER, BATTERY TERMINAL

32414-MW0-000

$3.43

5

CABLE, BATTERY GROUND

32601-MBA-610

Unavailable

6

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-MT4-000.

35850-MT4-003

$71.60

7

RUBBER, SHOCK

35856-KBH-000

$11.28

8

HOLDER, BATTERY BOX

50322-MBA-A40

$39.43

9

CUSHION, BATTERY

50325-KM1-000

$4.37

10

BOX, BATTERY

50325-MBA-000

Unavailable

11

COVER, BATTERY

50326-MBA-000

Unavailable

12

COVER ASSY., TOOL

50330-MBA-000

Unavailable

13

RUBBER, FR. FENDER MOUNTING

61103-430-000

$3.52

14

BODY, KEY

83507-422-000

$3.57

15

STOPPER, KEY BODY

83508-KBG-000

$2.68

15

STOPPER, KEY BODY This part replaces 83508-438-000.

83508-KBG-000

$2.68

16

NUT, FENDER SETTING

84601-HA7-670

$5.28

17

BOLT, FLANGE (6MM)

90003-GAZ-000

Unavailable

18

BOLT, SOCKET (5X9)

90111-MR5-000

$2.41

19

CLIP (10.7MM)

90602-SB0-003

$3.52

20

SCREW-WASHER (6X20)

93893-06020-07

$1.53

21

SCREW, TAPPING (4X12)

93903-24380

Unavailable

22

PIN, SPRING (2X14)

94305-20141

$0.87

23

BOLT, FLANGE (6X14)

96001-06014-00

$1.66

24

FUSE, BLADE (30A)

98200-33000

$1.21
