Description

Price

1

CLAMP, PIPE

17368-KV7-671

$2.22

2

BULB, WEDGE BASE (12V3.4W)

34908-KW3-003

$3.89

3

BULB, WEDGE BASE (12V 1.7W) (STANLEY)

34909-KW3-003

$3.31

4

SPEEDOMETER ASSY. (MPH/KPH)

37200-MBA-601

Unavailable

6

CAP, RESET SWITCH

37215-MBA-611

$8.74

7

CUSHION, RUBBER

37235-MBA-610

$9.93

8

LENS, HIGH BEAM PILOT

37551-MZ0-018

$7.49

9

LENS, OIL PILOT

37561-MBA-611

$8.85

10

LENS, TURN SIGNAL PILOT

37561-MZ0-008

$10.11

11

LENS, TEMPERATURE PILOT

37562-MBA-611

Unavailable

12

LENS, SIDE STAND

37563-MBA-611

Unavailable

13

LENS, NEUTRAL PILOT

37571-MZ0-008

$10.13

14

LAMP, PILOT

37605-MBA-611

Unavailable

15

SENSOR ASSY., SPEEDOMETER

37700-MBA-611

$136.24

16

PLUG, HOLE

61110-388-000

$3.24

17

SCREW-WASHER (3X18)

90133-SL9-003

$8.67

18

CLIP (14MM)

90628-750-000

$2.31

19

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

19

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

19

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

20

CLIP, CABLE STUD

91501-SH4-003

$5.28

21

SCREW-WASHER (5X20)

93891-05020-07

$1.49

22

SCREW-WASHER (4X10)

93893-04010-00

$1.49

22

SCREW-WASHER (4X10) This part replaces 93893-04010-10.

93893-04010-00

$1.49

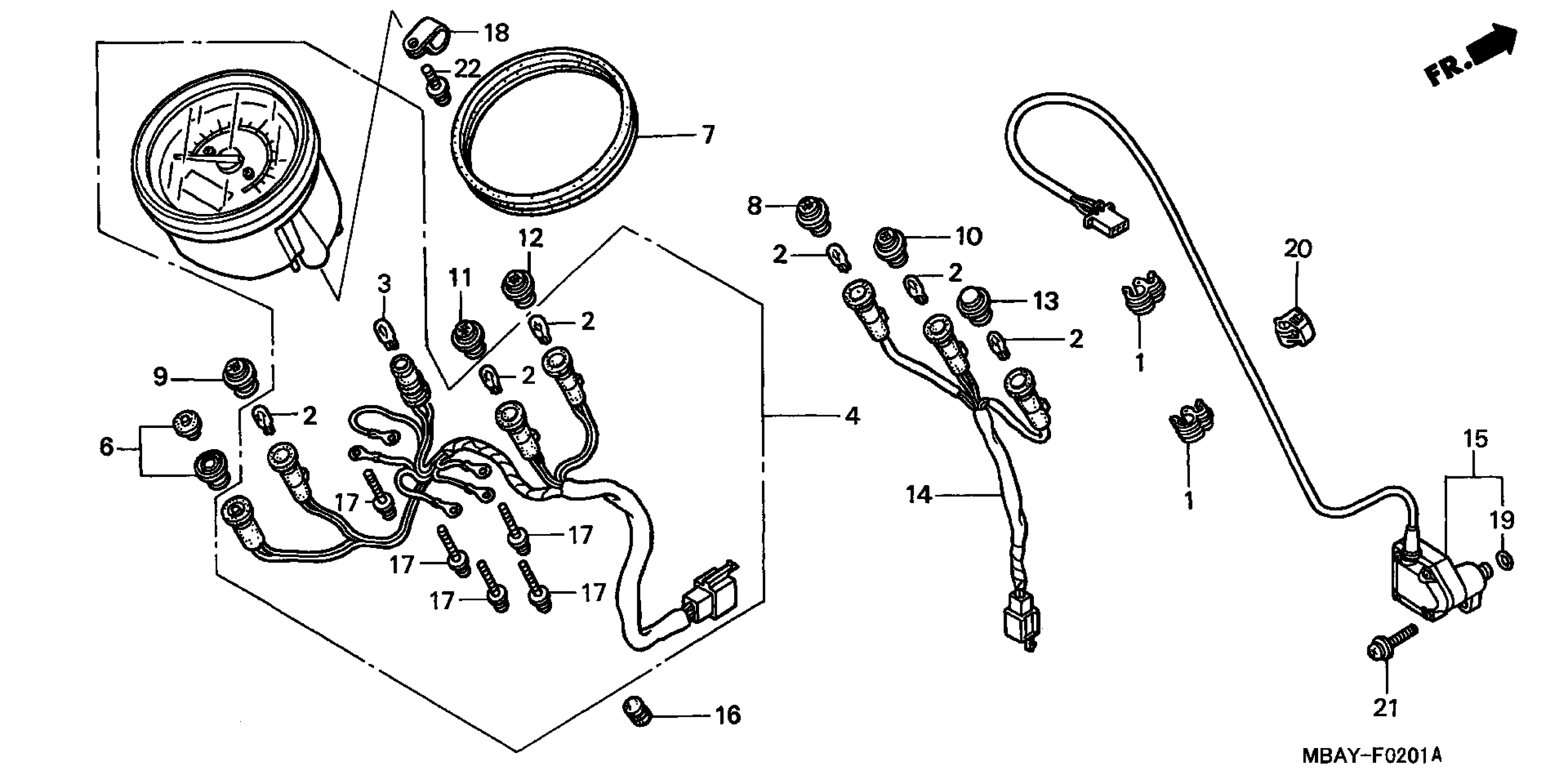

Honda VT750CD2A/A (01) SHADOW DELUXE, JPN, VIN# JH2RC446-1K400001 SPEEDOMETER (2) Diagram

CLAMP, PIPE

BULB, WEDGE BASE (12V3.4W)

BULB, WEDGE BASE (12V 1.7W) (STANLEY)

SPEEDOMETER ASSY. (MPH/KPH)

CAP, RESET SWITCH

CUSHION, RUBBER

LENS, HIGH BEAM PILOT

LENS, OIL PILOT

LENS, TURN SIGNAL PILOT

LENS, TEMPERATURE PILOT

LENS, SIDE STAND

LENS, NEUTRAL PILOT

LAMP, PILOT

SENSOR ASSY., SPEEDOMETER

PLUG, HOLE

SCREW-WASHER (3X18)

CLIP (14MM)

O-RING (6.8X1.9) This part replaces 91301-027-000.

O-RING (6.8X1.9)

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

CLIP, CABLE STUD

SCREW-WASHER (5X20)

SCREW-WASHER (4X10)

SCREW-WASHER (4X10) This part replaces 93893-04010-10.
