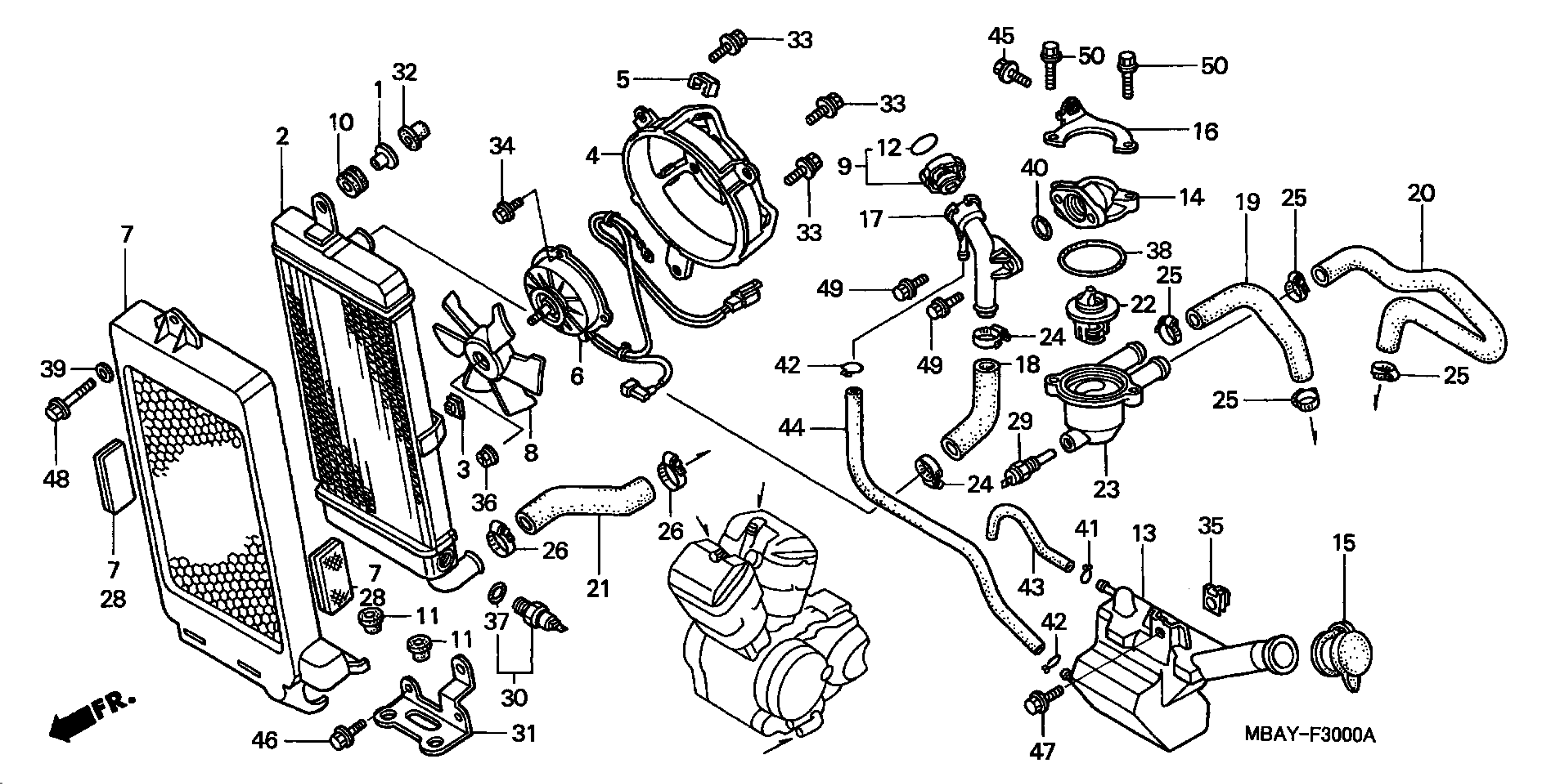

Honda VT750CD2A/A (01) SHADOW DELUXE, JPN, VIN# JH2RC446-1K400001 RADIATOR Diagram

#

Description
Price

1

COLLAR, AIR CLEANER SETTING

17216-HA7-670

$5.73

2

RADIATOR (TOYO)

19010-MBA-013

$530.62

3

NUT, SETTING

19014-KEA-003

$2.88

4

SHROUD (COO) This part replaces 19015-MBA-003.

19015-MBA-305

$48.97

5

CLIP, HARNESS (TOYO)

19017-PK1-004

$8.78

6

MOTOR ASSY., FAN

19030-MBA-610

Unavailable

7

GRILLE, RADIATOR

19035-MBA-670

Unavailable

8

FAN, COOLING (TOYO)

19040-MF5-751

$57.57

9

CAP, RADIATOR This part replaces 19045-GBF-770.

19045-MZ1-621

$45.13

9

CAP, RADIATOR

19045-MZ1-621

$45.13

10

RUBBER, RADIATOR MOUNTING

19051-KA3-710

$4.70

11

RUBBER, RADIATOR MOUNTING

19051-MB2-000

$4.20

12

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE) This part replaces 19055-MV9-921.

19055-MV9-881

$8.28

13

TANK ASSY., RESERVE This part replaces 19101-MBA-000.

19101-MBA-010

$26.92

14

CAP, THERMOSTAT

19103-MBA-000

$44.81

15

CAP, RESERVE TANK

19104-MB0-700

$10.92

16

STAY, THERMOSTAT CASE

19105-MBA-000

$7.51

17

NECK, FILLER

19106-MM8-000

$53.52

18

HOSE, RADIATOR (UPPER)

19107-MBA-000

$11.41

19

HOSE, FR. OUTLET WATER

19108-MBA-000

$12.28

20

HOSE, RR. OUTLET WATER

19109-MBA-000

$27.62

21

HOSE, RADIATOR (LOWER)

19115-MBA-000

$21.87

22

THERMOSTAT ASSY.

19300-KE8-000

$55.61

23

CASE, THERMOSTAT

19311-MBA-000

$59.29

24

CLAMP, WATER HOSE

19505-ML3-770

$6.58

25

CLAMP B, WATER HOSE

19506-KS6-700

$6.98

26

CLAMP, RADIATOR HOSE

19509-MM5-003

$12.19

28

REFLECTOR SET, FR. REFLEX

33745-MBA-670

$25.64

29

SWITCH ASSY., THERMO

37760-MAV-003

$58.43

30

SWITCH ASSY., THERMO This part replaces 37760-MT2-003.

37760-MR1-003

$64.56

31

STAY, RADIATOR

50175-MBA-000

$15.58

32

NUT, COWL SETTING (6MM)

90114-KAS-900

$4.69

33

BOLT-WASHER (6X16)

90120-KCR-003

$4.09

34

BOLT, FLANGE (5X10)

90196-MN5-000

$2.03

35

NUT, CLIP (6MM)

90305-GK8-000

$2.17

36

NUT, SERRATE (5MM)

90315-MK3-003

$2.12

37

O-RING (13.5X1.4)

91307-PH7-660

$2.78

37

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.78

38

O-RING (47.5X2)

91311-KE8-000

$2.17

39

WASHER, PLAIN (6MM)

94101-06700

$0.86

40

O-RING (23X2.4)

94608-30000

$1.09

41

CLIP, TUBE (C9)

95002-50000

$1.14

42

CLIP, TUBE (C11)

95002-70000

$1.49

43

BULK HOSE, VACUUM (5X3000) (5X170)

95005-50003-30M

$18.72

44

BULK HOSE, VACUUM (7X3000) (7X680)

95005-70003-30M

Unavailable

45

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

46

BOLT, FLANGE (6X14)

95701-06014-07

$1.32

47

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

48

BOLT, FLANGE (6X40)

95701-06040-07

$1.71

49

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

50

BOLT, FLANGE (6X22)

96001-06022-00

$1.13
