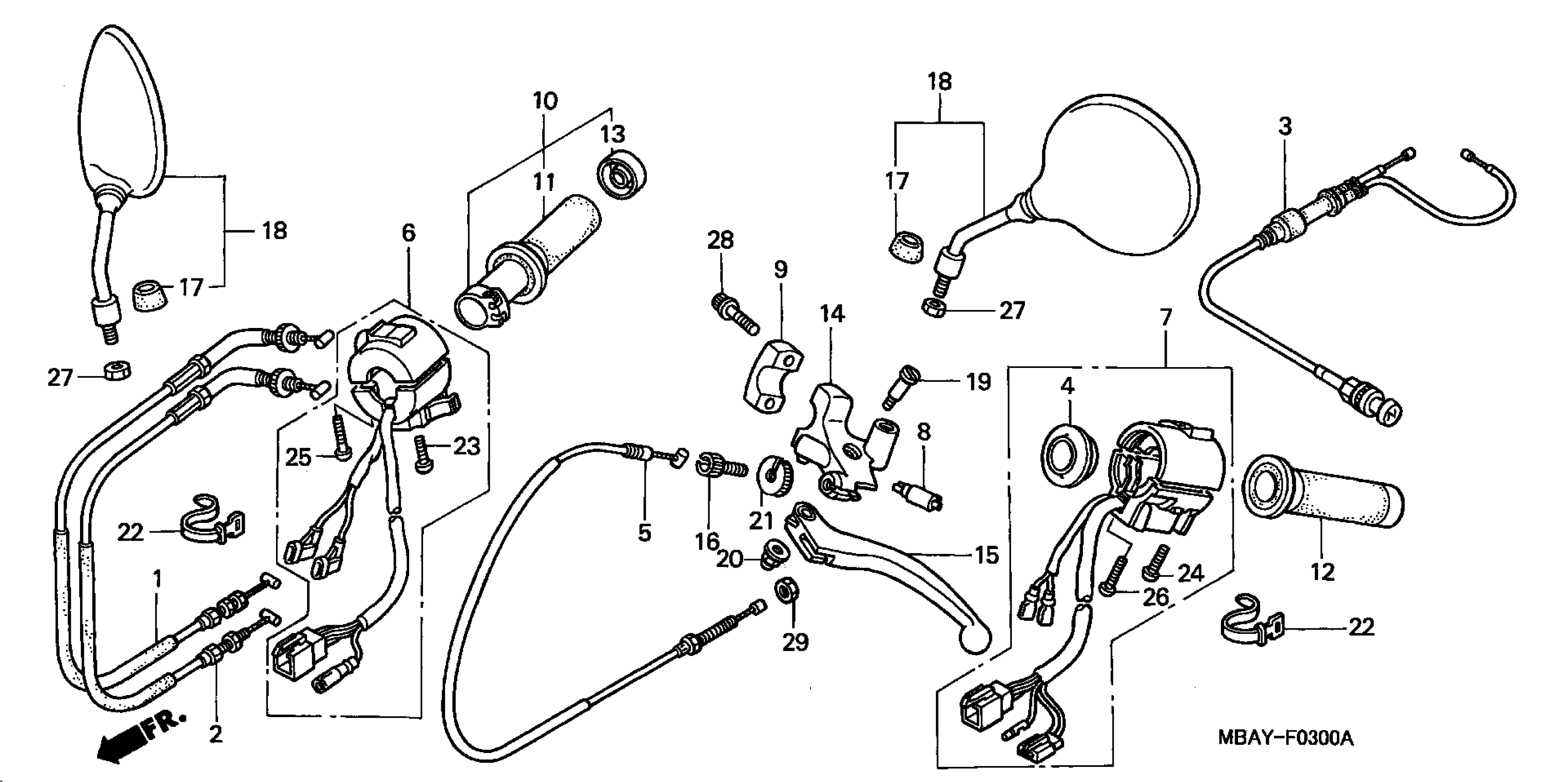

Honda VT750CD2A/A (01) SHADOW DELUXE, JPN, VIN# JH2RC446-1K400001 HANDLE SWITCH Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MBA-000

$30.27

2

CABLE B, THROTTLE

17920-MBA-000

$30.27

3

CABLE, CHOKE

17950-MBA-000

$51.02

4

ADAPTER

17962-MR1-000

$17.31

5

CABLE, CLUTCH

22870-MBA-000

$31.48

6

SW ASSY,ST ENGSTO This part replaces 35013-MBA-000.

35130-MBK-J01

$96.62

6

SW ASSY,ST ENGSTO This part replaces 35013-MBA-010.

35130-MBK-J01

$96.62

7

SWITCH SET, TURN SIGNAL

35020-MBA-000

$112.39

8

SWITCH, FR. LEVER

35330-413-003

$19.67

9

HOLDER, MASTER CYLINDER (NISSIN)

45517-MR1-671

$24.47

10

GRIP, R.

53145-MM8-000

$39.08

11

GRIP, R.

53145-MM8-000

$39.08

11

GRIP, R. This part replaces 53165-MM8-000.

53145-MM8-000

$39.08

12

GRIP, L. HANDLE

53166-KCR-000

$32.91

13

CAP, GRIP END

53167-MM8-000

$8.41

14

BRACKET, HANDLE LEVER

53172-MR1-000

$32.04

15

LEVER, L. HANDLE

53178-MAH-000

$17.39

16

BOLT, WIRE ADJUSTING

53192-268-000

$6.08

17

COVER, LOCK NUT

88113-KN8-000

$5.23

18

MIRROR

88210-MBA-670

$58.57

19

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.06

20

NUT, CAP (6MM)

90201-415-000

$1.96

21

NUT, FIXING

90321-MA6-750

$9.38

22

BAND, WIRE HARNESS

90652-MB0-000

$2.93

23

SCREW, PAN (5X20)

93500-05020-0B

$1.16

24

SCREW, PAN (5X22)

93500-05022-0B

$1.19

25

SCREW, PAN (5X25)

93500-05025-0B

$1.12

26

SCREW, PAN (5X32)

93500-05032-0B

$1.32

27

NUT, HEX. (10MM)

94031-10020

$0.88

28

BOLT, SOCKET (6X22)

96600-06022-10

$1.91

29

NUT, HEX. (8MM)

94002-08070-0S

$1.19
