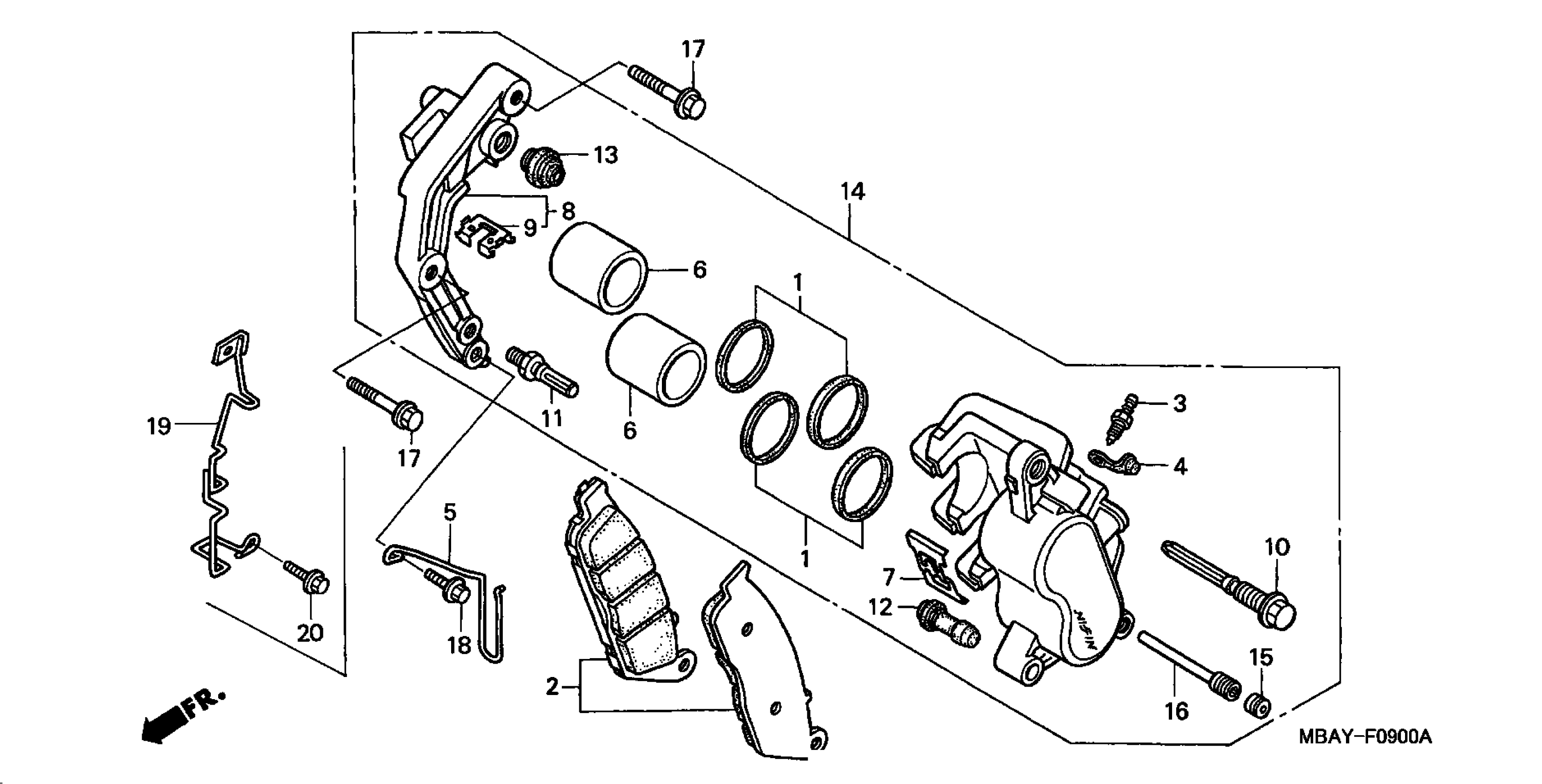

Honda VT750CD2A/A (01) SHADOW DELUXE, JPN, VIN# JH2RC446-1K400001 FRONT BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06431-MA3-405

$6.82

PAD SET, FR. This part replaces 06455-MBK-751.

06455-MBK-752

$48.45

PAD SET, FR.

06455-MBK-752

$48.45

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$3.93

CAP, BLEEDER

43353-461-771

$4.70

PISTON

45107-ML4-006

$34.00

SPRING, PAD (NISSIN)

45108-ML7-922

$5.75

BRACKET, L. FR.

45110-MAH-672

Unavailable

RETAINER

45112-MT4-006

$5.41

BOLT, PIN

45131-MA3-006

$15.79

BOLT, PIN

45131-166-016

$7.10

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.07

BOOT B

45133-MA3-006

$5.07

CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)

45150-MAH-315

$470.45

PLUG, PIN

45203-MG3-016

$4.76

PIN, HANGER

45215-ML7-922

$9.51

BOLT, SPECIAL FLANGE (8X32)

90101-MZ8-000

$6.29

GUIDE, SPEED SENSOR CORD

45136-MBA-610

Unavailable

BOLT, FLANGE (6X12)

90130-ML0-730

$2.77
