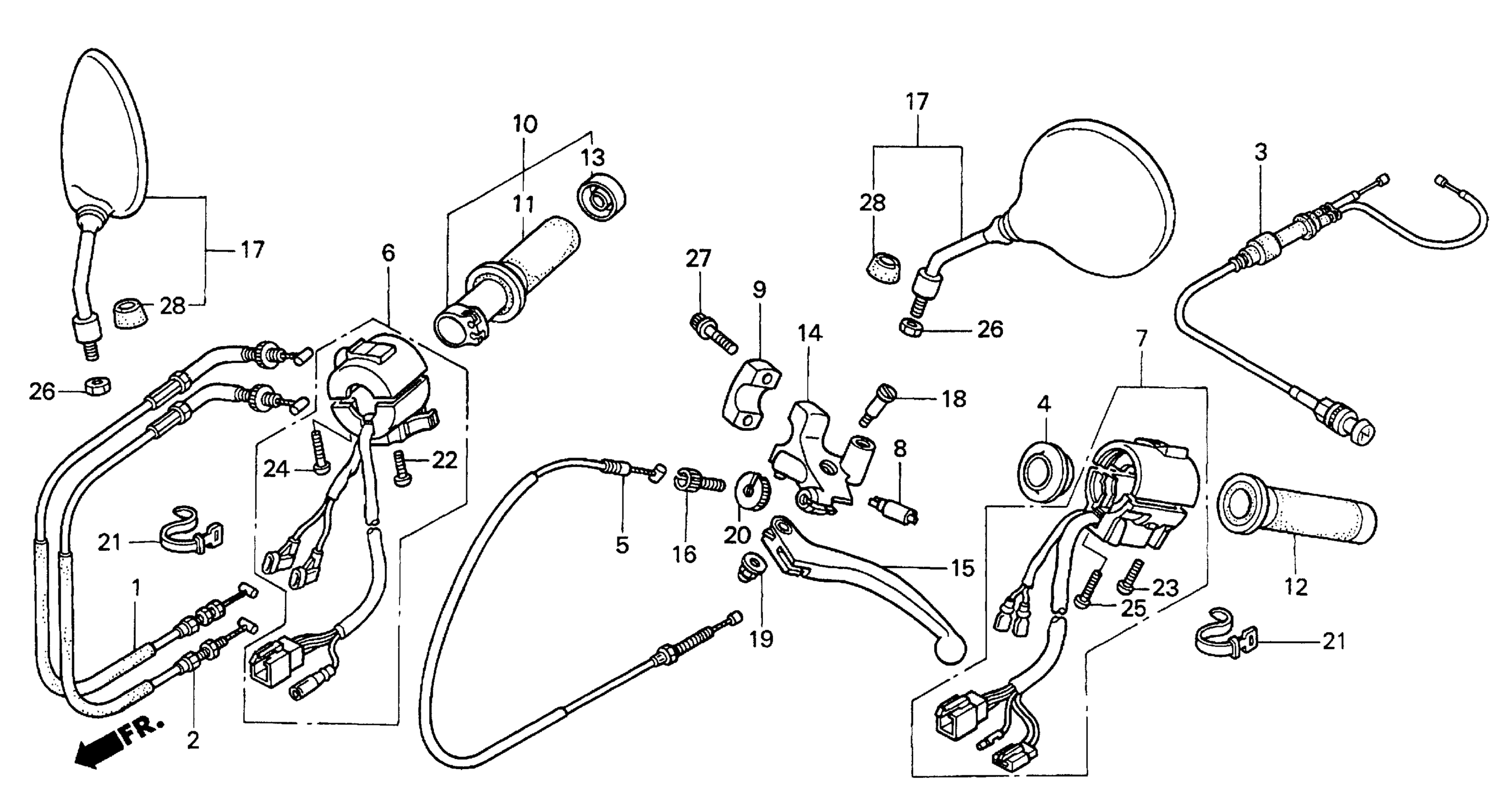

Honda VT750CD2A (99) SHADOWAMERICAN CLASSIC EDITION 750 DELUXE, JPN, VIN# JH2RC446-XM100001 HANDLE SWITCH Diagram

CABLE A, THROTTLE

17910-MBA-000

$33.73

CABLE B, THROTTLE

17920-MBA-000

$33.73

CABLE, CHOKE

17950-MBA-000

$56.81

ADAPTER

17962-MR1-000

$19.30

CABLE, CLUTCH

22870-MBA-000

$35.06

SW ASSY,ST ENGSTO This part replaces 35013-MBA-000.

35130-MBK-J01

$107.59

SW ASSY,ST ENGSTO This part replaces 35013-MBA-010.

35130-MBK-J01

$107.59

SWITCH SET, TURN SIGNAL

35020-MBA-000

$125.16

SWITCH, FR. LEVER

35330-413-003

$21.91

HOLDER, MASTER CYLINDER (NISSIN)

45517-MR1-671

$27.25

GRIP, R.

53145-MM8-000

$43.84

GRIP, R.

53145-MM8-000

$43.84

GRIP, R. This part replaces 53165-MM8-000.

53145-MM8-000

$43.84

GRIP, L. HANDLE

53166-KCR-000

$36.92

CAP, GRIP END

53167-MM8-000

$9.37

BRACKET, HANDLE LEVER

53172-MR1-000

$35.68

LEVER, L. HANDLE

53178-MAH-000

$19.50

BOLT, WIRE ADJUSTING

53192-268-000

$6.72

MIRROR

88210-MBA-670

$65.24

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

NUT, CAP (6MM)

90201-415-000

$2.05

NUT, FIXING

90321-MA6-750

$10.45

BAND, WIRE HARNESS

90652-MB0-000

$3.15

SCREW, PAN (5X20)

93500-05020-0B

$1.49

SCREW, PAN (5X22)

93500-05022-0B

$1.49

SCREW, PAN (5X25)

93500-05025-0B

$1.49

SCREW, PAN (5X32)

93500-05032-0B

$1.49

NUT, HEX. (10MM)

94031-10020

$1.49

BOLT, SOCKET (6X22)

96600-06022-10

$2.10

COVER, LOCK NUT

88113-KN8-000

$5.63
