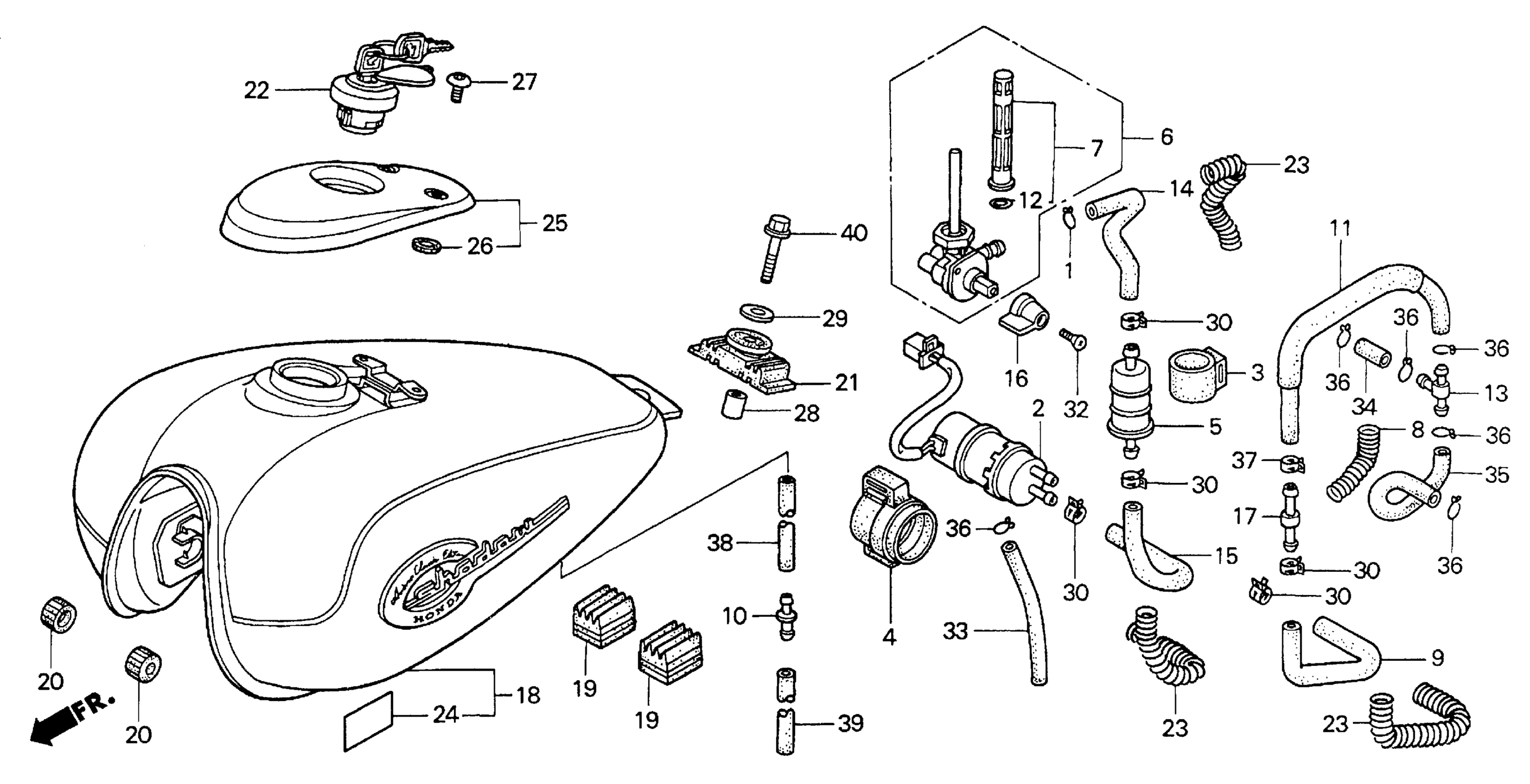

Honda VT750CD2A (99) SHADOWAMERICAN CLASSIC EDITION 750 DELUXE, JPN, VIN# JH2RC446-XM100001 FUEL TANK Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.72

2

PUMP ASSY., FUEL (MITSUBISHI) (MSDS) This part replaces 16710-MBA-611.

16710-MBA-612

$182.38

2

PUMP ASSY., FUEL (MITSUBISHI)

16710-MBA-612

$182.38

3

HOLDER, STRAINER

16711-MF2-000

$17.60

4

RUBBER, FUEL PUMP MOUNTING

16711-MZ7-000

$23.80

5

FILTER, FUEL

16900-MG8-003

$23.49

6

PETCOCK ASSY., FUEL This part replaces 16950-MBA-003.

16950-MBA-023

$107.41

6

PETCOCK ASSY., FUEL This part replaces 16950-MBA-013.

16950-MBA-023

$107.41

6

PETCOCK ASSY., FUEL

16950-MBA-023

$107.41

7

SCREEN SET, FUEL STRAINER

16952-MBA-003

$21.30

8

WIRE B, GUARD

16952-MF5-000

$13.34

9

TUBE C, FUEL

16953-MBA-000

$9.55

10

JOINT, FUEL TUBE

16953-891-810

Unavailable

11

TUBE D, FUEL

16955-MBA-000

$9.55

12

O-RING

16958-KM9-005

$3.89

13

JOINT, FUEL TUBE

16958-MB0-000

$12.10

14

TUBE A, FUEL

16961-MBA-000

$5.64

15

TUBE B, FUEL

16962-MBA-000

$7.72

16

LEVER, PETCOCK

16963-MY5-610

$14.29

17

JOINT, FUEL TUBE

16966-MR1-000

$7.57

18

TANK SET, FUEL (TYPE3) (WL)

17520-MBA-950ZA

Unavailable

18

TANK SET, FUEL (TYPE4) (WL)

17520-MBA-950ZB

Unavailable

19

RUBBER, FUEL TANK

17611-MBA-000

$7.95

20

RUBBER, FR. FUEL TANK

17611-KE8-000

$4.22

20

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.22

21

CUSHION, RR. FUEL TANK

17613-KY1-000

$11.67

22

CAP, FUEL FILLER This part replaces 17620-KR3-751.

17620-KR3-753

$70.93

23

WIRE, GUARD

17672-MY1-000

$6.93

24

TAPE A

64301-MN5-300

$2.92

25

COVER, FUEL CAP

83510-MBA-770

Unavailable

26

RUBBER, MOUNTING

83512-MBA-770

Unavailable

27

SCREW, PAN (6X14)

90113-MM5-000

$3.10

28

COLLAR (8X20)

90513-MAT-000

$3.04

29

WASHER (8.5X28)

90534-MV4-000

$2.89

30

CLAMP, CANISTER HOSE

90682-SA0-671

$7.67

32

SCREW, OVAL (5X12)

93700-05012-0G

$1.49

33

BULK HOSE, FUEL (4.5X3000) (4.5X100)

95001-45003-50M

$61.19

34

BULK HOSE, FUEL (7.5X8000) (7.5X35)

95001-75008-60M

$103.82

35

BULK HOSE, FUEL (7.5X8000) (7.3X200)

95001-75008-60M

$103.82

36

CLIP, TUBE (B12)

95002-02120

$2.00

37

CLAMP, TUBE (D12)

95002-41200-08

$2.34

38

BULK HOSE, VACUUM (4.5X1000) (4.5X520)

95005-45001-20M

$34.14

39

BULK HOSE (7.3X1000)

95005-75001-20M

$22.45

40

BOLT, FLANGE (8X35)

95701-08035-00

$2.30
