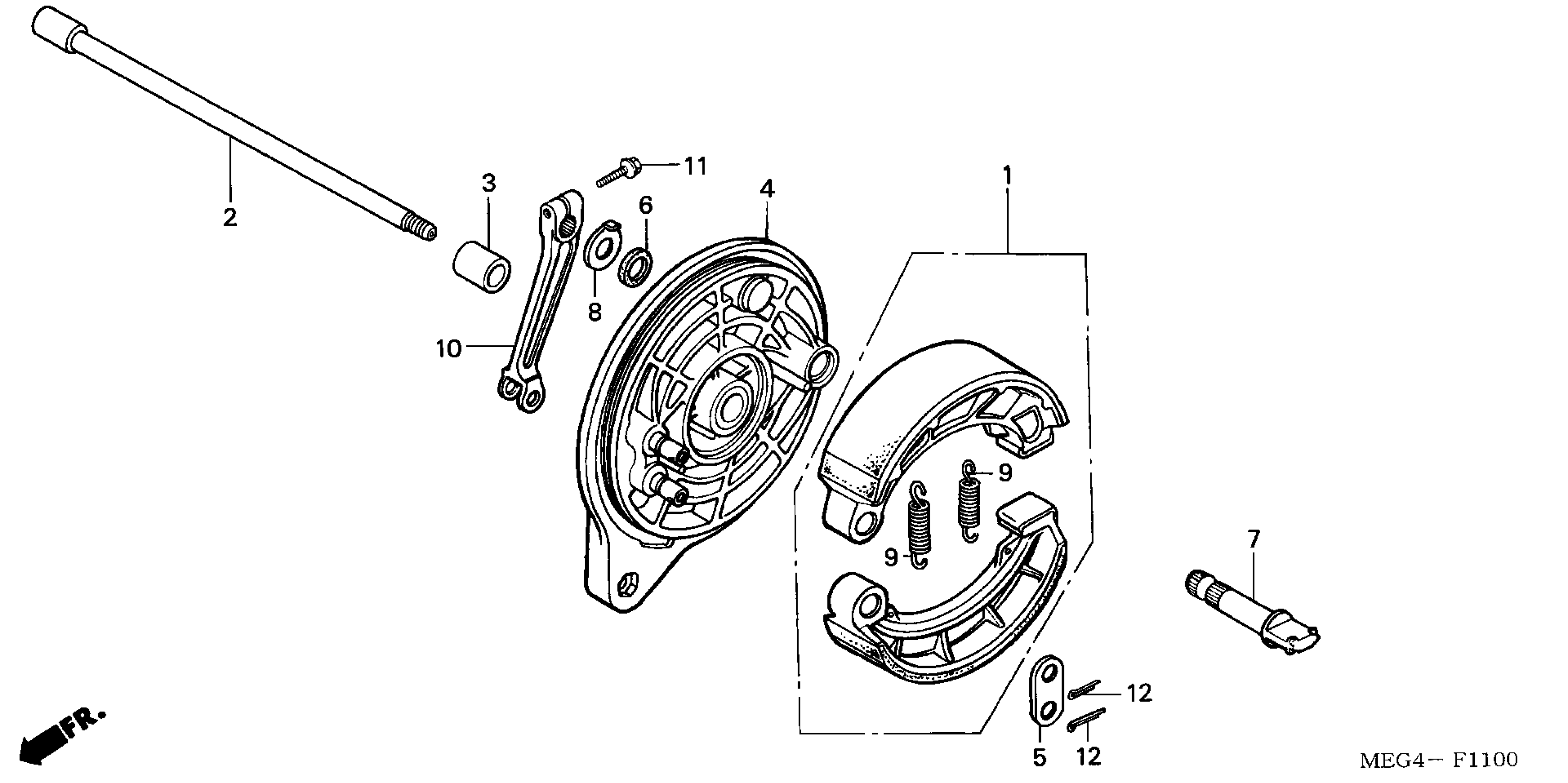

Honda VT750CAC/A (06) SHADOW AERO, JPN, VIN# JH2RC501-6K210001 TO JH2RC501-6K299999 REAR BRAKE PANEL Diagram

SHOE SET, BRAKE (JB)

06430-MCL-700

$58.34

AXLE, RR. WHEEL

42301-MEG-670

Unavailable

COLLAR, RR. BRAKE PANEL SIDE

42313-MEG-670

Unavailable

PANEL, RR. BRAKE *NH109MS* (SHOT SILVER METALLIC SPECIAL)

43100-MEG-000ZA

Unavailable

WASHER, ANCHOR PIN

43102-319-000

$6.21

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

CAM, RR. BRAKE This part replaces 43141-MCL-000.

43141-MCL-003

$32.05

CAM, RR. BRAKE

43141-MCL-003

$32.05

INDICATOR, RR. BRAKE

43145-ME5-000

$5.84

SPRING, RR. BRAKE SHOE

43151-346-000

$5.90

ARM, RR. BRAKE

43410-MEG-000

$31.17

BOLT, FLANGE (8X25)

90107-MZ5-000

$4.65

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, COTTER (2.5MM)

94201-25300

$1.49
