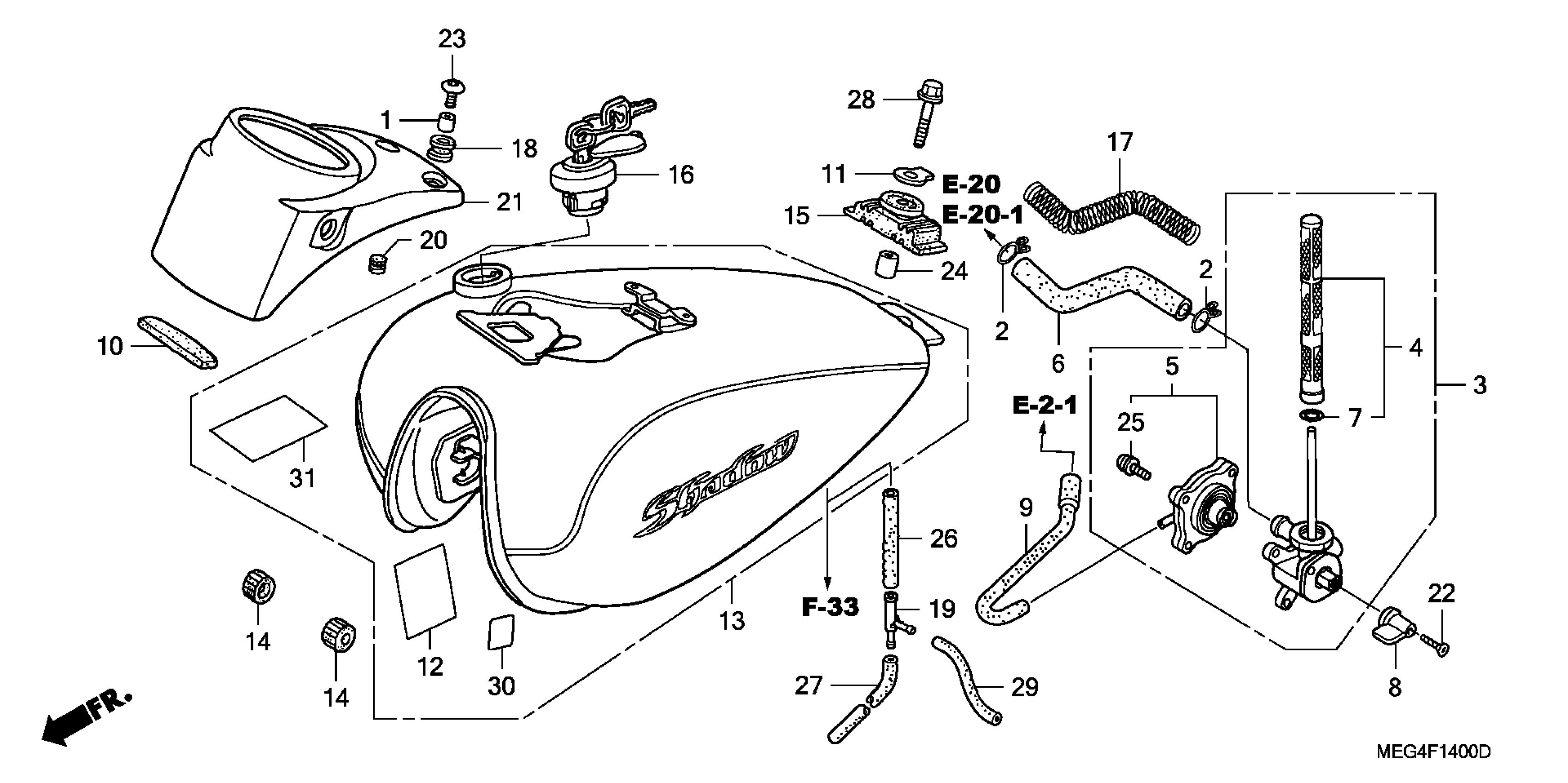

Honda VT750CAC/A (06) SHADOW AERO, JPN, VIN# JH2RC501-6K210001 TO JH2RC501-6K299999 FUEL TANK Diagram

COLLAR, ADJUSTING COVER WASHER, CHAIN CASE SETTING

11346-371-300

$10.56

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.72

PETCOCK ASSY. This part replaces 16950-MEG-B01.

16950-MEG-B02

$208.17

PETCOCK ASSY.

16950-MEG-B02

$208.17

PETCOCK ASSY. This part replaces 16950-MEG-003.

16950-MEG-B02

$208.17

SCREEN SET, FUEL STRAINER

16952-MEG-003

$36.64

COVER SET, PETCOCK This part replaces 16953-KEA-000.

16953-KEA-023

$46.22

COVER SET, PETCOCK

16953-KEA-023

$46.22

TUBE, FUEL

16955-MEG-000

$7.72

O-RING (14.2X1.3)

16958-KM9-005

$3.89

LEVER, PETCOCK

16963-KEA-000

$8.66

TUBE, AUTO PETCOCK

16981-MEG-000

$3.38

RUBBER, FR. FUEL TANK

17511-KGB-610

$4.35

PLATE, FUEL TANK SETTING

17511-MEG-000

$1.49

TAPE, TANK PROTECTOR

17515-MEG-300

$3.16

TANK SET, FUEL (TYPE1) (WL)

17520-MEG-670ZC

Unavailable

TANK SET, FUEL (TYPE2) (WL)

17520-MEG-670ZD

Unavailable

CUSHION, FR. FUEL TANK

17611-MEG-000

$4.04

CUSHION, RR. FUEL TANK

17613-KY1-000

$11.67

CAP, FUEL FILLER This part replaces 17620-KR3-751.

17620-KR3-753

$70.93

CAP, FUEL FILLER This part replaces 17620-KR3-752.

17620-KR3-753

$70.93

CAP, FUEL FILLER

17620-KR3-753

$70.93

WIRE, GUARD

17672-MEG-000

$12.80

RUBBER, PROTECTOR GASKET

18293-GN2-000

$2.90

PLUG, HOLE

61110-388-000

$3.24

COVER, METER

83510-MCL-010

$133.54

SCREW, OVAL (5X12)

90111-MZ5-000

$3.85

BOLT, SPECIAL (6X14)

90118-MCL-000

$2.33

COLLAR (8X20)

90513-MAT-000

$3.04

SCREW-WASHER (4X16)

93892-04016-08

$1.49

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

BOLT, FLANGE (8X35)

95701-08035-00

$2.30

TAPE, TANK GUARD

17528-MR4-900

$2.33

TAPE B, TANK GUARD

17528-KCZ-930

$3.39
