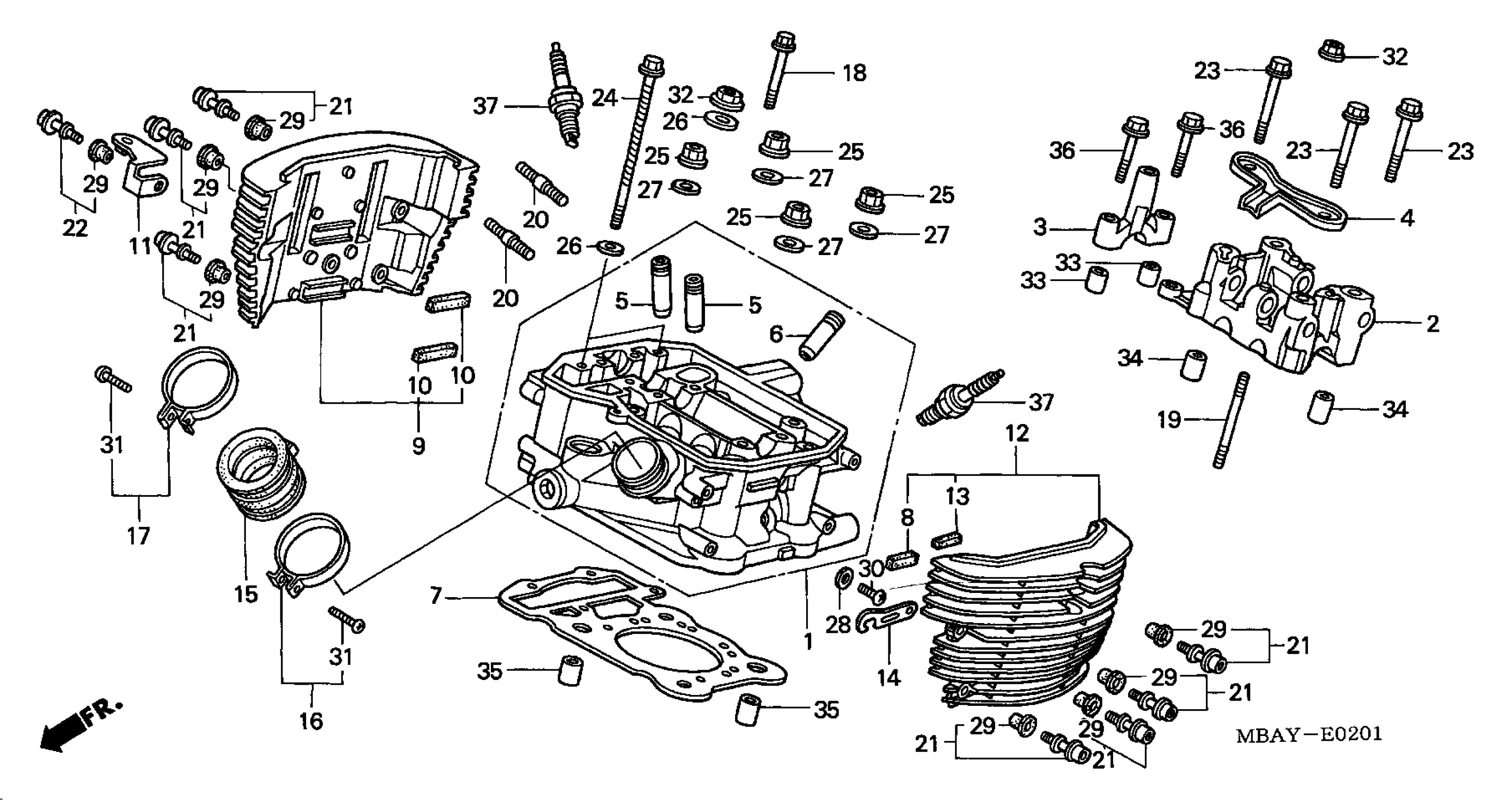

Honda VT750CAC/A (00) SHADOW, JPN, VIN# JH2RC441-YM200001 CYLINDER HEAD (RR.) Diagram

#

Description
Price

1

CYLINDER HEAD, RR.

12220-MBA-670

Unavailable

2

HOLDER, CAMSHAFT

12223-MV1-000

Unavailable

3

HOLDER, SIDE CAMSHAFT

12225-MF5-000

$53.10

4

PLATE, VALVE OIL GUIDE

12226-MF5-000

$20.05

5

GUIDE, IN. VALVE (OS)

12231-MF5-305

$22.36

6

GUIDE, EX. VALVE (OS)

12241-MF5-315

$20.56

7

GASKET, CYLINDER HEAD

12251-MN8-911

$36.47

8

RUBBER A, SEAT

12262-MBA-300

Unavailable

9

FIN, FR. CYLINDER HEAD (L/R)(RR)

12270-MBA-600

Unavailable

10

RUBBER B, SEAT

12272-MBA-300

Unavailable

11

STAY, RR. AIR CLEANER MOUNT

12285-MBA-000

$7.93

12

FIN, L. RR. CYLINDER HEAD

12290-MBA-600

Unavailable

13

RUBBER C, SEAT

12292-MBA-300

$2.11

14

STAY, CHOKE CABLE

12295-MBA-000

$6.20

15

INSULATOR, CARBURETOR

16211-MAW-600

$26.57

16

BAND A, INSULATOR

16218-MN8-750

$9.68

17

BAND, INSULATOR

16219-MBA-770

Unavailable

18

BOLT, FLANGE (6X70) (NSHF)

90004-GHB-770

$5.44

19

BOLT, STUD (8X50)

90013-MF5-000

$4.97

20

BOLT, STUD (8X25)

90016-MBA-000

$4.39

21

BOLT ASSY., SPECIAL (6X22)

90020-MBA-600

Unavailable

22

BOLT ASSY., SPECIAL (6X25)

90030-MBA-000

$9.07

23

BOLT, FLANGE (8X68)

90066-MC7-000

$4.05

24

BOLT, CYLINDER (8X187)

90081-MZ8-H01

$10.31

25

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.59

25

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.59

25

NUT, FLANGE (10MM)

94050-10000

$1.59

26

WASHER (8MM)

90401-MZ8-H00

$2.51

27

WASHER (10MM)

90410-HC4-000

$3.81

28

WASHER, SEALING (5MM)

90452-323-000

$1.59

29

RUBBER, MOUNTING

90543-MBA-000

$2.92

30

SCREW, PAN (5X8)

93500-05008-0A

$1.49

31

SCREW, PAN (5X25)

93500-05025-0G

$1.49

32

NUT, FLANGE (8MM)

94050-08080

$1.49

33

PIN, DOWEL (8X14)

94301-08140

$2.25

34

PIN, DOWEL (10X16)

94301-10160

$2.28

35

PIN, DOWEL (14X20)

94301-14200

$2.28

36

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

37

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

37

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54

37

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

37

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

37

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.62

37

SPARK PLUG (X27EPR-U9) (DENSO) | (Optional).

98069-59926

$2.54
