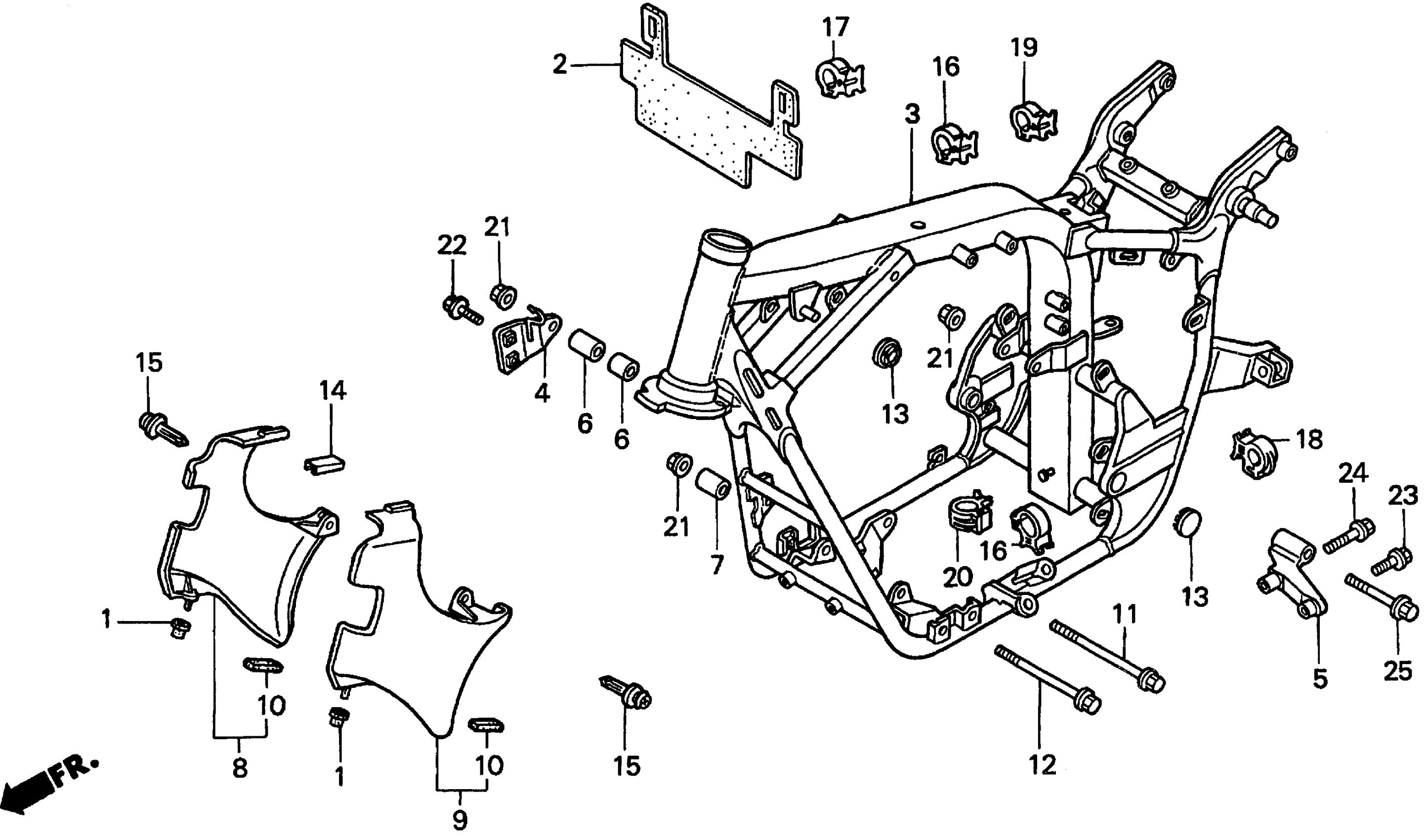

Honda VT750CAC (99) SHADOWAMERICAN CLASSIC EDITION 750, JPN, VIN# JH2RC441-XM100001 FRAME Diagram

RUBBER, VISOR (LOWER)

19113-KCY-650

$2.90

RUBBER, HEAT GUARD

19126-MBA-000

Unavailable

FRAME *NH1* (BLACK)

50100-MBA-770ZA

$1,952.89

PLATE, FR. ENGINE HANGER (UPPER)

50176-MBA-000

$15.89

STAY, RR. ENGINE HANGER

50178-MBA-000

$32.54

COLLAR, FR. ENGINE HANGER (B)

50197-KR1-760

$12.66

COLLAR, ENGINE HANGER

50363-KT7-000

$14.25

COVER, R. FR. SIDE

63500-MBA-650

Unavailable

COVER, L. FR. SIDE

63600-MBA-670

Unavailable

RUBBER B, SIDE COVER

83509-KV3-950

$1.52

BOLT, FLANGE (10X205)

90102-KBV-000

$19.65

BOLT, FLANGE (10X180)

90106-MY9-000

$8.49

CAP, PIVOT *NH1* (BLACK)

90302-MR1-000ZC

$19.46

SPRING, COWL SETTING

90655-GT4-000

$2.92

CLIP, BODY COVER

90683-GR1-003

$2.92

CLIP, CABLE (8MM)

90690-GHB-631

$2.08

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

CLIP, CABLE (30MM)

90690-GHB-681

$2.92

NUT, FLANGE (10MM)

90303-428-900

$3.35

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.35

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

BOLT, FLANGE (8X30)

95701-08030-07

$2.28

BOLT-WASHER (8X40) This part replaces 95701-08040-07.

90141-GGZ-J00

$2.43

BOLT, FLANGE (10X70)

95801-10070-07

$2.64
