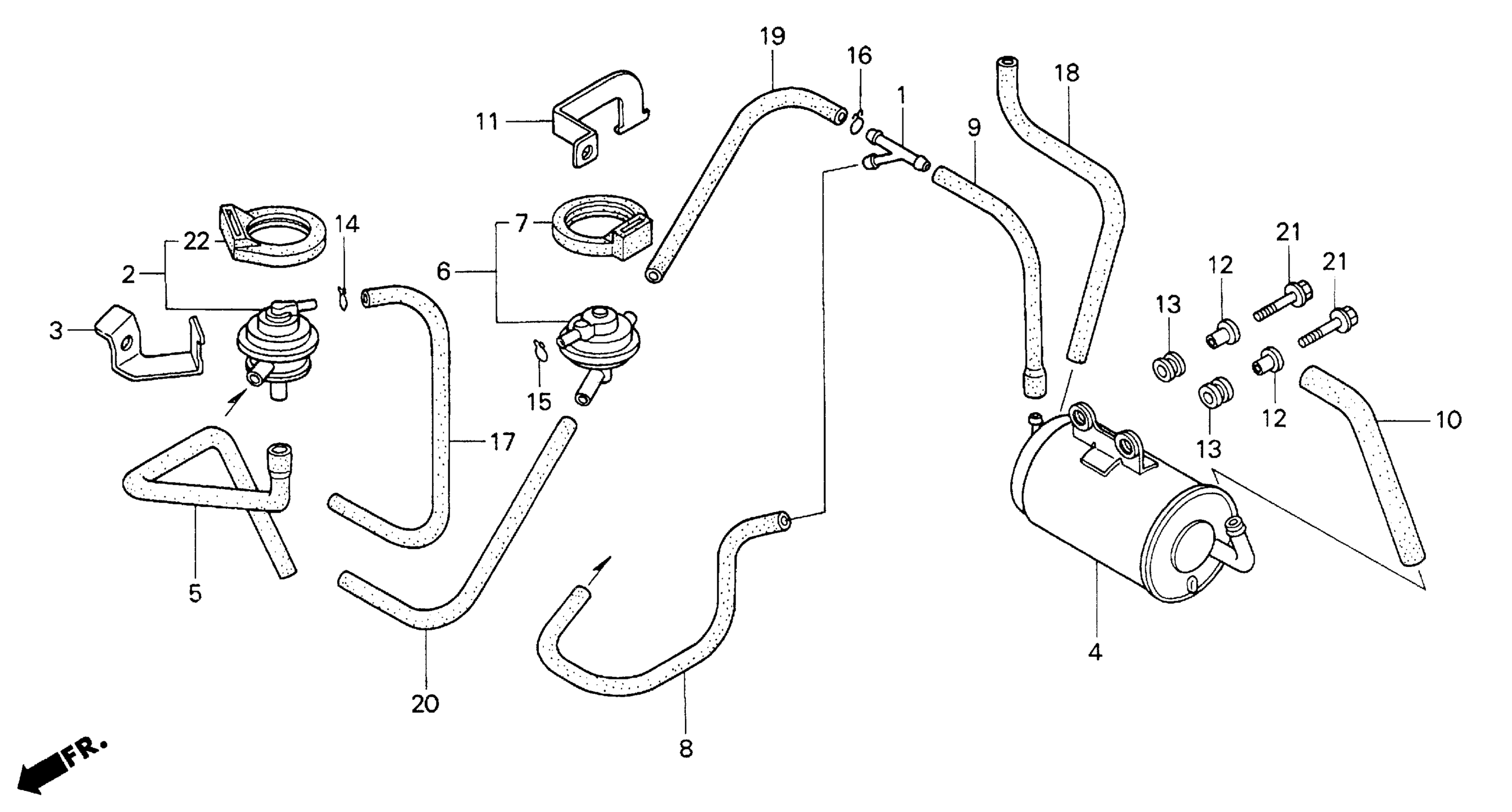

Honda VT750CAC (99) SHADOWAMERICAN CLASSIC EDITION 750, JPN, VIN# JH2RC441-XM100001 EVAP CANISTER Diagram

JOINT, FUEL TUBE

16959-MY1-000

$15.97

VALVE ASSY., AIR VENT CONTROL

17300-MBA-771

$226.54

STAY, AIR VENT CONTROL VALVE

17301-MBA-770

Unavailable

CANISTER

17410-MBA-772

$222.58

TUBE, AIR VENT CONTROL VALVE

17416-MBA-770

$11.12

VALVE, PURGE CONTROL

17440-MF8-791

Unavailable

RUBBER, PURGE CONTROL VALVE MOUNTING

17451-ME5-760

$11.75

TUBE, AIR VENT CONTROL VALVE

17461-MBA-770

Unavailable

TUBE, CANISTER

17462-MBA-770

$13.04

TUBE, AIR

17463-MBA-770

Unavailable

STAY, PURGE CONTROL VALVE

17465-MBA-770

Unavailable

COLLAR, SETTING

61104-422-000

$6.44

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.22

CLIP, TUBE (B8)

95002-02080

$1.59

CLIP, TUBE (B8)

95002-02080

$1.59

CLIP, TUBE (B12)

95002-02120

Unavailable

BULK HOSE, VACUUM (3.5X1000) (3.5X220)

95005-35001-20M

$8.69

BULK HOSE, VACUUM (3.5X1000) (3.5X930)

95005-35001-20M

$8.69

BULK HOSE, VACUUM (8X1000) (8X50)

95005-80001-20M

$21.47

BULK HOSE, VACUUM (8X1000) (8X90)

95005-80001-20M

$21.47

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

RUBBER, MOUNTING

17305-MJ4-771

Unavailable
