Partiron

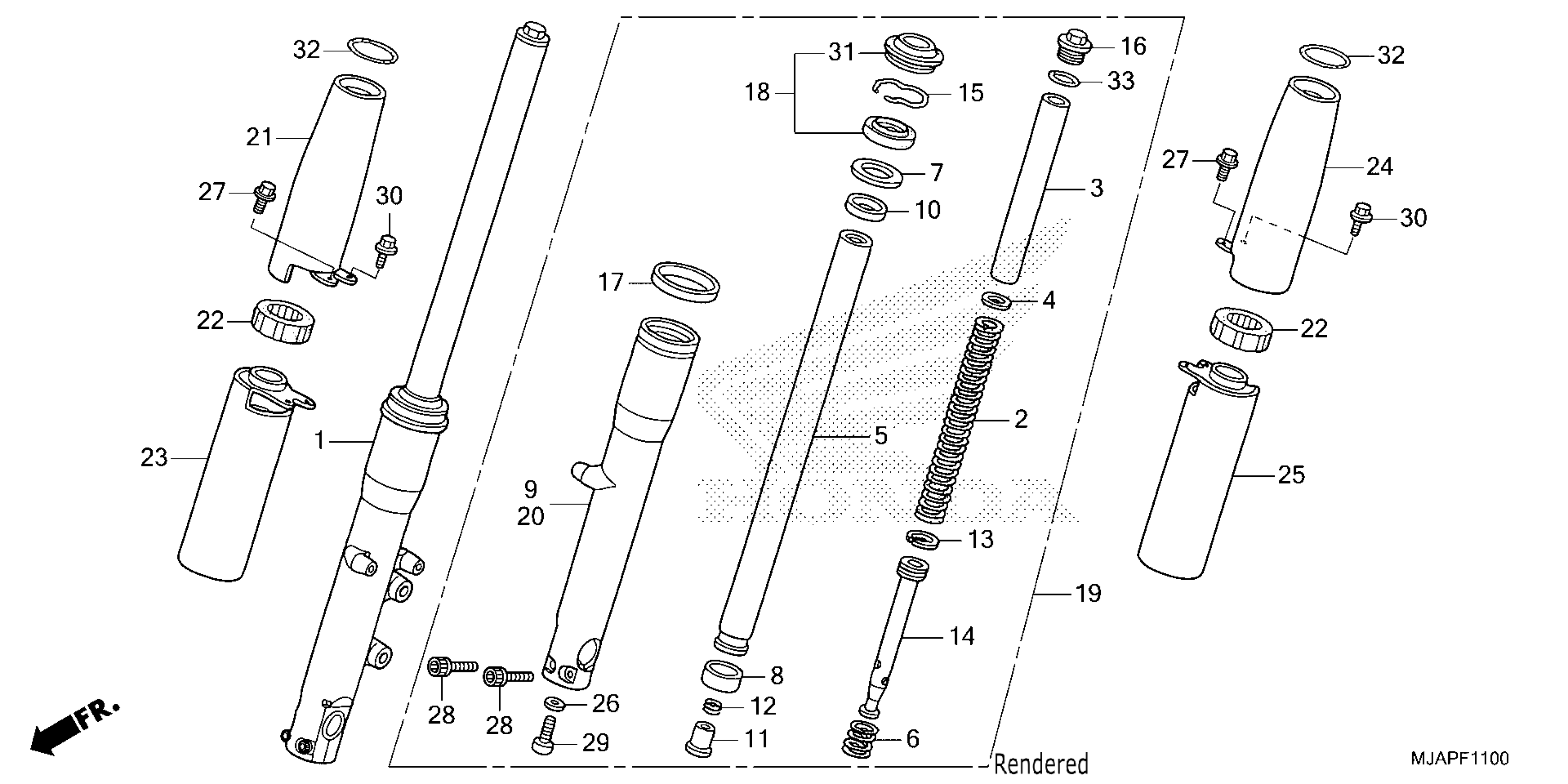

Honda VT750CAC (23) MOTORCYCLE, JPN, VIN# JH2RC501-PK800001 TO JH2RC501-PK999999 FRONT FORK (1) Diagram

#

Description
Price

1

FORK SET, R. FR. (COO) (KAYABA) This part replaces 51400-MEG-A41.

51400-MEG-305

$639.36

2

SPRING, FR. FORK

51401-MEG-003

$65.52

3

SPACER, SPRING

51402-MEG-003

$9.57

4

WASHER

51404-MBA-003

$5.23

5

PIPE, FR. FORK

51410-MEG-003

$282.28

6

SPRING, FR. REBOUND

51411-MBA-003

$6.14

7

WASHER

51412-KA4-004

$6.29

8

BUSH, SLIDER

51415-MEG-003

$7.09

9

CASE, R. (LOWER)

51420-MEG-A41

$331.94

10

BUSH, GUIDE

51424-MCT-003

$6.52

11

PIECE, OIL LOCK

51431-MBA-003

$15.14

12

SPRING, OIL LOCK

51433-MBA-J50

$3.14

13

RING, PISTON

51437-MCT-003

$4.49

14

PIPE, SEAT

51440-MEG-003

$38.52

15

RING, SNAP

51447-KA4-004

Unavailable

16

BOLT, FR. FORK

51450-MEG-901

$25.19

17

GUIDE, COVER

51460-MCK-A01

$8.94

18

SEAL SET, FR. FORK

51490-MCT-003

$15.94

19

FORK ASSY., L. FR. (KAYABA)

51500-MEG-A41

$639.36

20

CASE, L. (LOWER)

51520-MEG-A41

$331.94

21

COVER, R. FR. FORK TOP

51610-MEG-000

$100.96

22

MOUNT, FR. FORK COVER

51611-MBA-000

$8.88

23

COVER, R. FR. FORK (LOWER)

51620-MEG-000

$100.96

24

COVER, L. FR. FORK TOP

51660-MEG-000

$83.43

25

COVER, L. FR. FORK (LOWER)

51670-MEG-000

$100.96

26

WASHER, OIL BOLT (KAYABA)

52442-KA3-731

$2.13

27

BOLT, FLANGE (8X12)

90101-MEG-000

$3.65

28

BOLT, SOCKET (8X35)

90109-MCR-D00

$2.58

29

BOLT, SOCKET (10X25)

90116-KK0-004

$5.54

30

BOLT, FLANGE (6X12)

90123-MBA-000

$2.88

31

DUST SEAL

91254-MCK-A01

$10.93

32

O-RING (39.5X5)

91305-MC7-000

Unavailable

33

O-RING (31.7X3.5)

91356-KT1-671

$2.92
