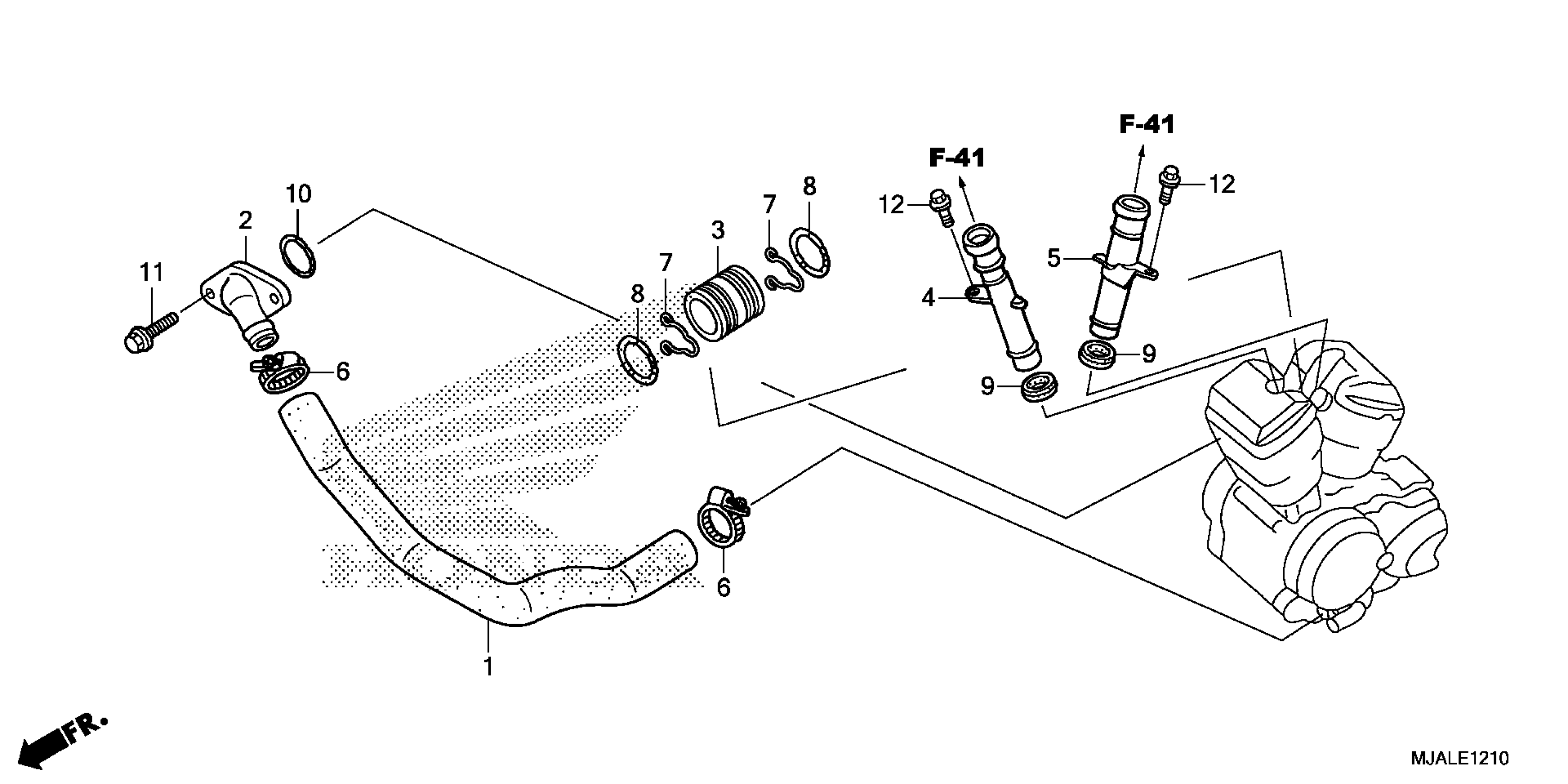

Honda VT750CAC (20) MOTORCYCLE, JPN, VIN# JH2RC501-LK600001 TO JH2RC501-LK699999 WATER PIPE Diagram

HOSE, MAIN WATER

19501-MN8-000

$31.41

JOINT, WATER HOSE

19503-MR1-000

$44.18

JOINT, WATER (FR/RR)

19505-MEG-000

$15.16

PIPE, FR. OUTLET WATER

19511-MEG-000

$21.70

PIPE, RR. OUTLET WATER

19512-MEG-000

$24.03

CLAMP, HOSE (24-32MM)

19516-ML7-691

$14.40

CLIP, RING (22MM)

90601-MEG-000

$2.72

O-RING (21.5X2)

91310-MB0-003

$2.92

SEAL, WATER PIPE (ARAI)

91315-ME9-003

$4.53

O-RING

91356-169-003

$2.92

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
