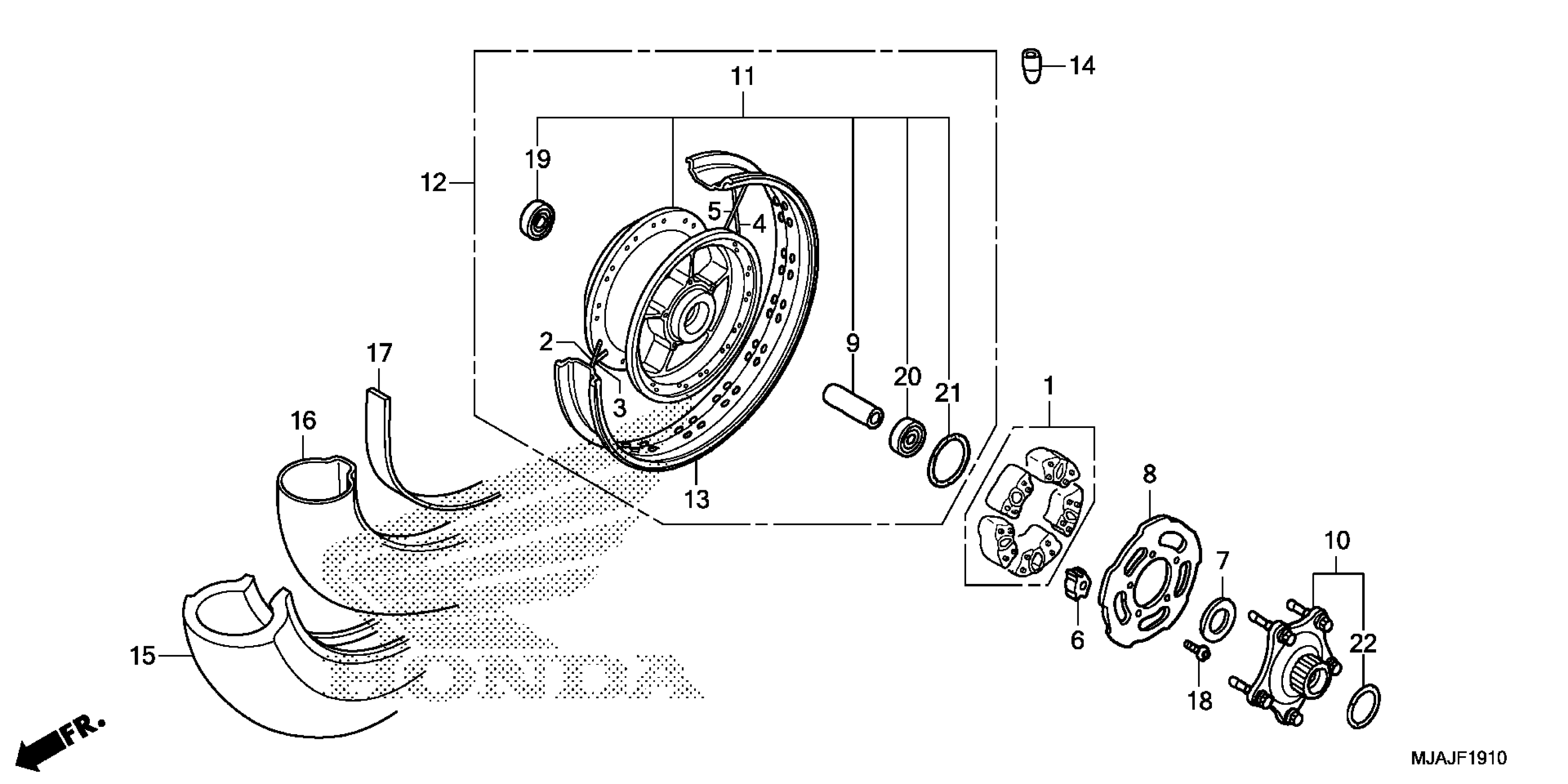

Honda VT750CAC (19) MOTORCYCLE, JPN, VIN# JH2RC501-KK500001 REAR WHEEL (1) Diagram

DAMPER SET, WHEEL

06410-MAH-A60

$50.65

SPOKE SET A, RR. (R. INSIDE)

06420-MEG-000

$4.52

SPOKE SET B, RR. (R. OUTSIDE)

06421-MEG-000

$4.52

SPOKE SET C, RR. (L. INSIDE)

06422-MEG-000

$4.52

SPOKE SET D, RR. (L. OUTSIDE)

06423-MEG-000

$4.52

PIECE, DAMPER WHEEL

41242-MR5-000

$17.49

WASHER, THRUST

42616-MT3-000

$7.51

HOLDER, DAMPER

42617-MT8-000

$42.97

COLLAR, RR. AXLE DISTANCE

42620-MEG-000

$15.51

FLANGE SET, FINAL DRIVEN

42630-MAH-305

$192.11

HUB SUB-ASSY., RR. WHEEL

42635-MFE-A40

$437.43

WHEEL SUB-ASSY., RR.

42650-MFE-A40

$684.75

RIM, RR. WHEEL

42701-MFE-A41

$191.82

WEIGHT, BALANCE (15G)

42704-MEG-003

$8.08

WEIGHT, BALANCE (20G)

42705-MEG-003

$8.08

TIRE, RR. This part replaces 42711-MCL-033.

42711-MCL-043

$225.54

TIRE, RR.

42711-MCL-043

$225.54

TIRE (160/80-15) This part replaces 42711-MEG-024.

42711-MEG-034

$234.10

TIRE (160/80-15)

42711-MEG-034

$234.10

TUBE, TIRE (BS)

42712-MEG-901

$42.69

TUBE, TIRE (DUNLOP)

42712-MEG-902

$37.54

FLAP, TIRE (BS)

42713-MR1-671

$7.32

FLAP, TIRE (45-15) (DUNLOP)

42713-MR1-672

$7.32

BOLT, DISK (6X17)

90105-KN5-000

$3.89

BOLT, DISK (6X17) (SAGA) This part replaces 90105-KV3-851.

90106-MT3-003

$3.80

BOLT, DISK (6X17)

90106-MBB-000

$3.65

BOLT, DISK (6X17) (SAGA)

90106-MT3-003

$3.80

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$27.50

BEARING, RADIAL BALL (6204UU) This part replaces 91052-MZ2-A21.

91052-MAE-004

$27.50

BEARING, RADIAL BALL (20X47X20.6) (TOYO)

91053-MN5-003

$74.94

O-RING (61X2)

91302-MA6-003

$5.17

O-RING (46.5X3.5) (Honda Code 1251610)

91358-MB0-000

$3.76
