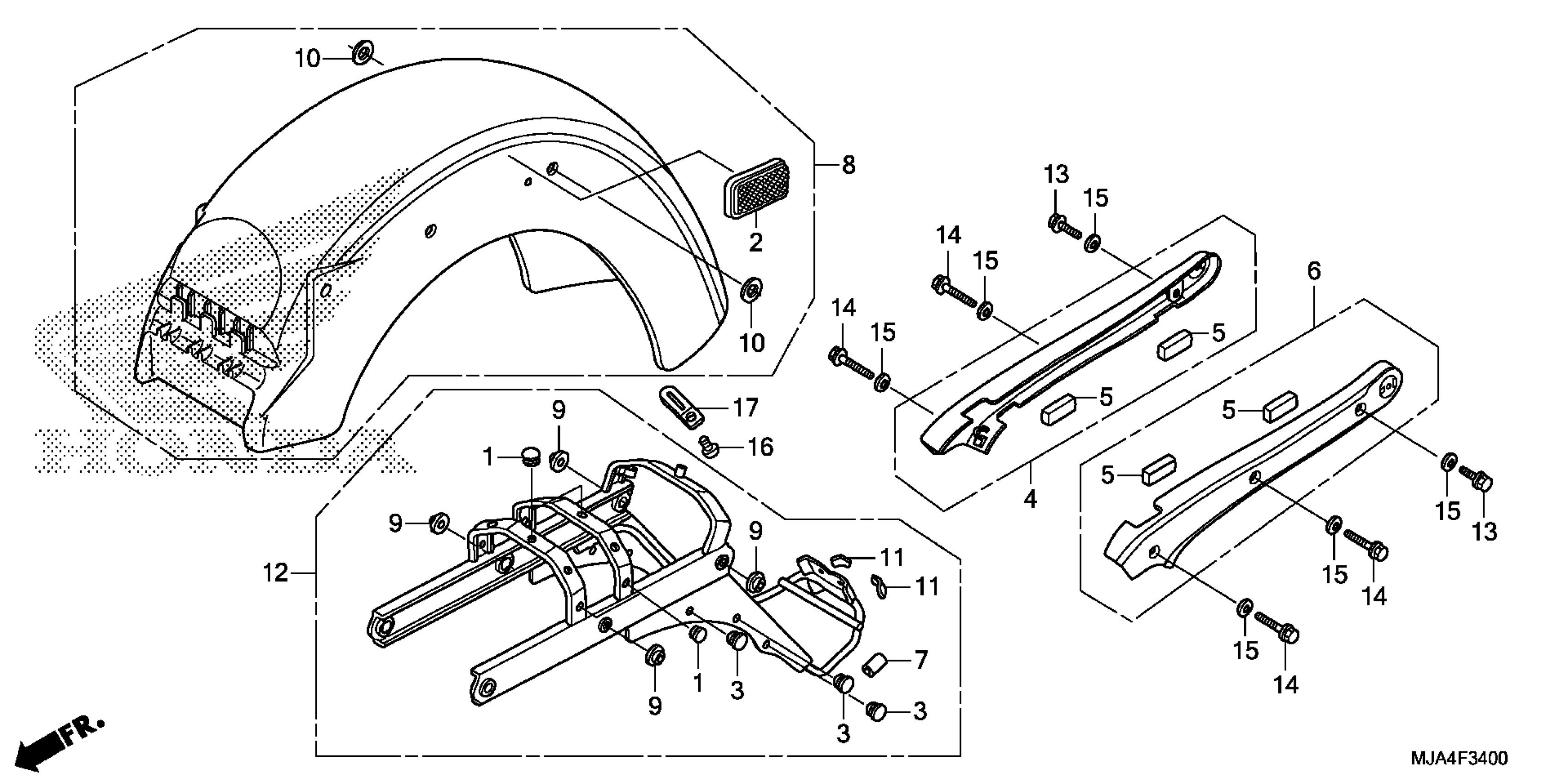

Honda VT750CAC (12) SHADOW AERO, JPN, VIN# JH2RC501-CK800001 REAR FENDER (1) Diagram

GROMMET, SIDE COVER (A)

19902-865-780

$4.28

REFLECTOR, RR. SIDE REFLEX

33741-MEG-671

$10.95

RUBBER, SEAT SIDE (RIGHT SIDE)

77212-965-000

$4.94

GRAB RAIL, R.

77330-MEG-A40

$170.69

RUBBER, GRAB RAIL

77331-MEG-000

$2.61

GRAB RAIL, L.

77340-MEG-A40

$186.18

TUBE, PROTECTOR

80101-MEG-000

$1.80

FENDER SET, RR. *R101CU* (CANDY GLORY RED-U)

80110-MEG-A40ZB

$384.64

GROMMET, RR. FRAME

80121-MEG-000

$2.89

RUBBER, RR. FRAME

80124-MEG-000

$2.90

RUBBER, RR. FRAME

80129-MEG-000

$1.49

FRAME ASSY., RR.

80130-MFS-000

$308.52

BOLT, SPECIAL FLANGE (10X28)

90105-MEG-000

$2.92

BOLT, SPECIAL FLANGE (10X40)

90108-MEG-000

$3.90

WASHER, PLAIN (10MM)

90502-MM8-610

$2.92

SCREW, TAPPING (4X12) (PO)

93913-24210

$1.49

CLIP (4X40)

94591-44000

$2.31
