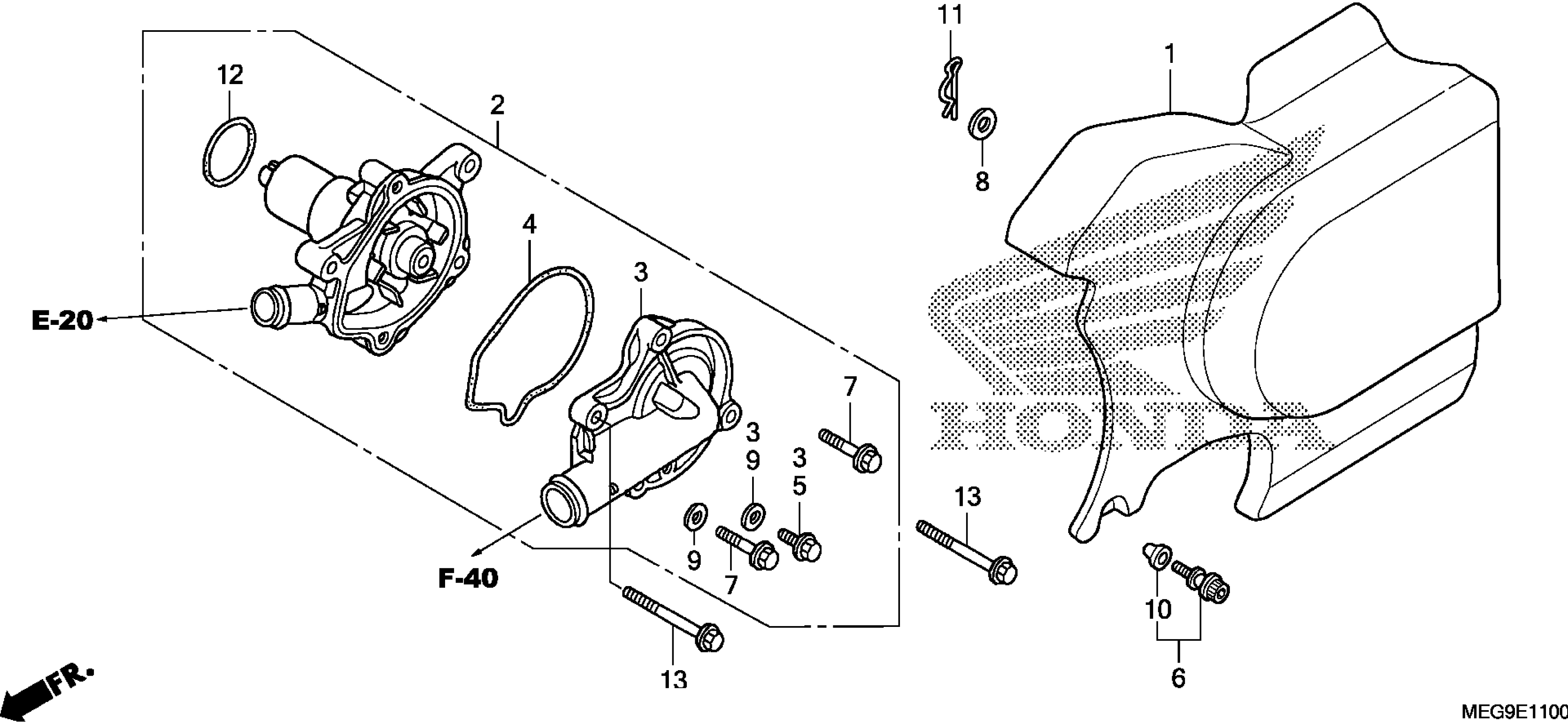

Honda VT750CAC (11) SHADOW AERO, JPN, VIN# JH2RC501-BK700001 TO JH2RC501-BK799999 WATER PUMP Diagram

#

Description

Price

1

COVER, L. RR.

11351-MEG-000

$98.21

2

WATER PUMP ASSY.

19200-MEG-000

$221.14

3

COVER ASSY., WATER PUMP

19220-MBA-600

$103.18

4

GASKET, WATER PUMP COVER

19226-MM9-000

$4.49

5

BOLT, FLANGE (6X12) (CT200)

90013-883-000

$1.54

6

BOLT ASSY., SPECIAL (6X22) (FRAME NO.)

90020-MBA-D20

$4.24

7

BOLT, FLANGE (6X25)

90121-MV9-670

$2.92

8

WASHER B, SEALING (10MM)

90442-283-000

$2.51

9

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

10

RUBBER, MOUNTING (FRAME NO.)

90543-MBA-000

$2.92

11

PIN, LOCK (10MM)

90604-MEG-000

$1.49

12

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92

13

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

13

BOLT, FLANGE (6X45) BOLT, FLANGE (6X60)

95701-06045-07

$2.06
