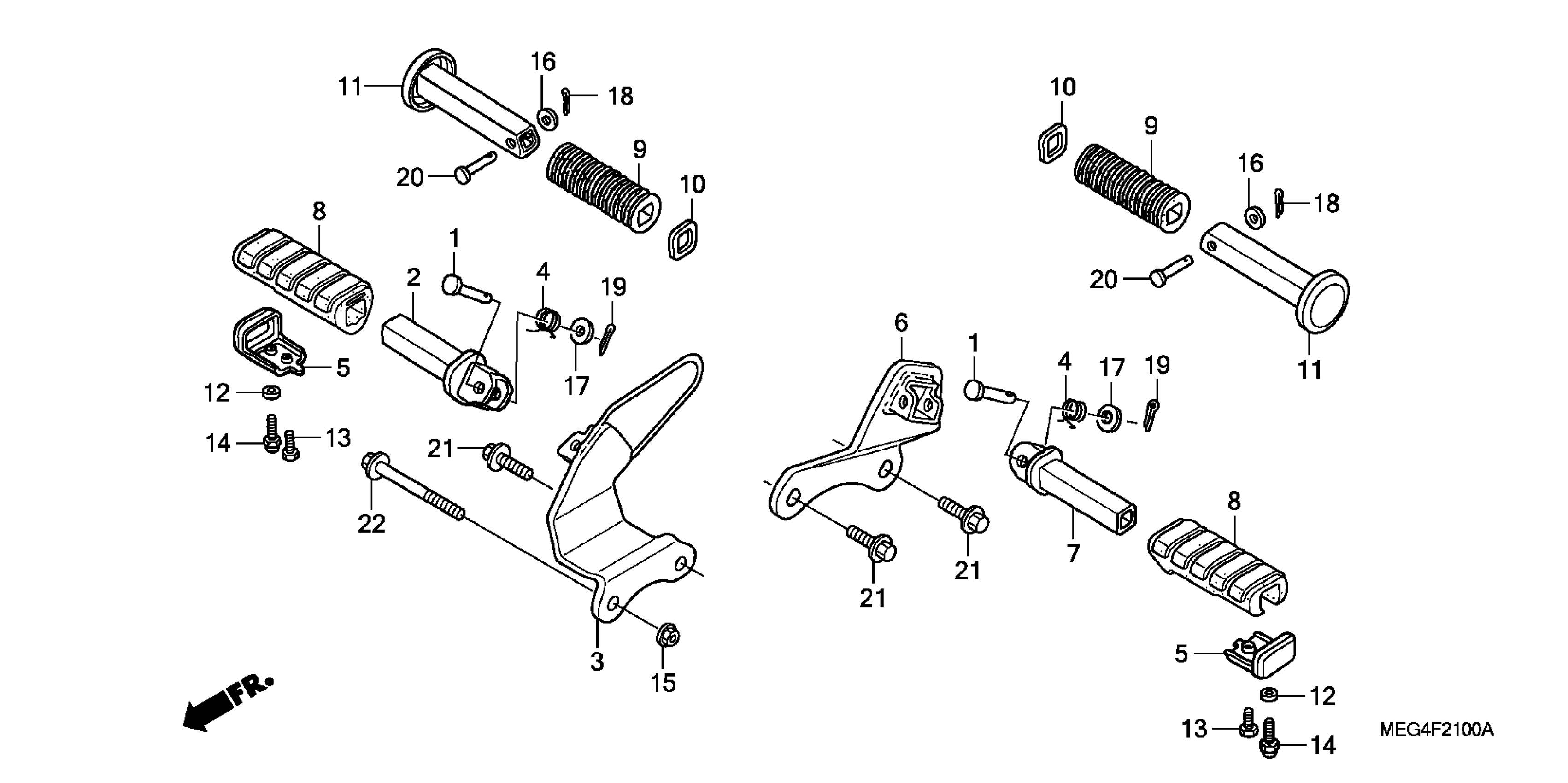

Honda VT750CAC (06) SHADOW AERO, JPN, VIN# JH2RC501-6M200001 TO JH2RC501-6M209999 STEP Diagram

#

Description
Price

1

PIN, STEP BAR JOINT

50603-033-010

$3.30

2

BAR, R. STEP (COO) This part replaces 50612-MEG-000.

50612-MEG-305

$16.03

3

BRACKET, R. MAIN STEP

50615-MEG-000

$67.03

4

SPRING, STEP RETURN

50617-MB1-700

$5.80

5

STOPPER, STEP RUBBER

50619-MN0-000

$17.37

6

BRACKET, L. MAIN STEP

50625-MEG-000

$53.52

7

BAR, L. STEP (COO) This part replaces 50642-MEG-000.

50642-MEG-305

$15.19

8

RUBBER, MAIN STEP (COO) This part replaces 50661-MEG-000.

50661-MEG-305

$5.74

9

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$14.21

10

WASHER, PILLION FOOTPEG

50712-413-000

$3.47

11

BAR, PILLION STEP (COO) This part replaces 50715-413-000.

50715-413-305

$17.81

11

BAR, PILLION STEP (COO)

50715-413-305

$17.81

12

COLLAR, TAILLIGHT

80104-065-000

$2.83

13

BOLT, HEX. (6X12) BOLT, FLANGE (6X12)

92101-06012-0A

$1.49

14

BOLT, CAP (6X16)

92501-06016-0A

$2.91

15

NUT, FLANGE (10MM)

90303-428-900

$3.35

15

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.35

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

16

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49

17

WASHER, PLAIN (8MM)

94101-08000

$1.49

18

PIN, COTTER (1.6X12)

94201-16120

$1.49

19

PIN, COTTER (2.0X15)

94201-20150

$1.49

20

PIN A, PILLION STEP

95015-81000

$2.21

21

BOLT, FLANGE (10X25)

95701-10025-07

$1.49

22

BOLT, FLANGE (10X90)

95701-10090-07

$3.06
