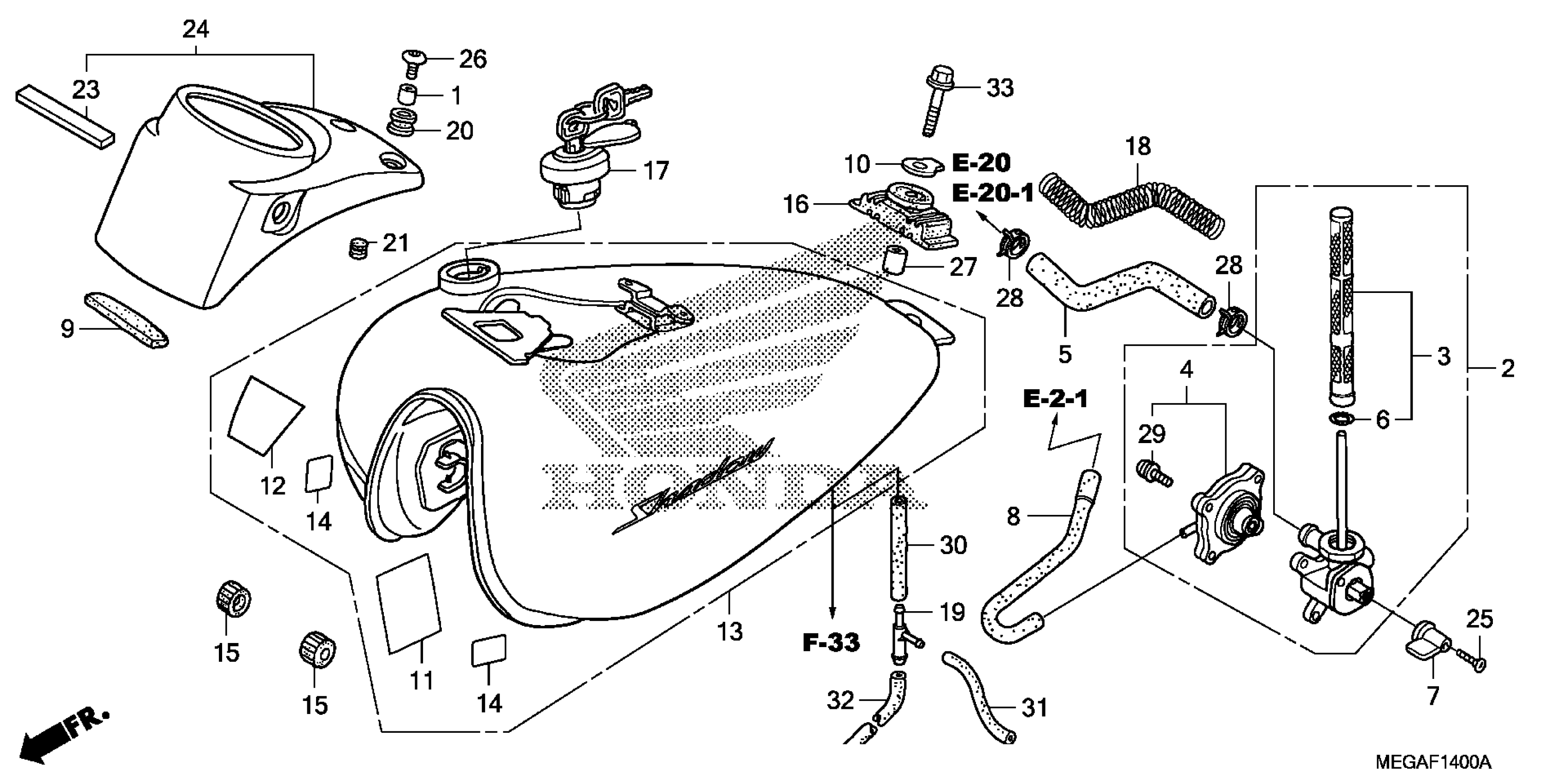

Honda VT750CAAC/B (08) SHADOW AERO, JPN, VIN# JH2RC505-8K420001 TO JH2RC505-8K429999 FUEL TANK Diagram

#

Description
Price

1

COLLAR, ADJUSTING COVER WASHER, CHAIN CASE SETTING

11346-371-300

$9.70

2

PETCOCK ASSY. (CONTRLD PART:CONTACT TECHLINE OR USE TL CONNECT TO ORDER)

16950-MEG-023

$167.35

3

SCREEN SET, FUEL STRAINER

16952-MEG-003

$33.64

4

COVER SET, PETCOCK

16953-KEA-023

$42.44

5

TUBE, FUEL

16955-MFE-610

$11.97

6

O-RING (14.2X1.3)

16958-KM9-005

$3.71

7

LEVER, PETCOCK

16963-KEA-000

Unavailable

8

TUBE, AUTO PETCOCK

16981-MEG-000

Unavailable

9

RUBBER, FR. FUEL TANK

17511-KGB-610

$4.16

10

PLATE, FUEL TANK SETTING

17511-MEG-000

$1.32

11

TAPE, TANK PROTECTOR

17515-MEG-300

$2.93

12

FILM, PROTECTOR

17516-MFE-670

$5.19

13

TANK SET, FUEL (TYPE1) (WL)

17520-MEG-A50ZA

Unavailable

13

TANK SET, FUEL (TYPE2) (WL)

17520-MEG-A50ZB

Unavailable

13

TANK SET, FUEL (TYPE3) (WL)

17520-MEG-A50ZC

Unavailable

14

TAPE, TANK GUARD

17528-MR4-900

$2.15

15

CUSHION, FR. FUEL TANK

17611-MEG-000

$3.86

16

CUSHION, RR. FUEL TANK

17613-KY1-000

$10.72

17

CAP, FUEL FILLER This part replaces 17620-KR3-751.

17620-KR3-753

$65.11

17

CAP, FUEL FILLER This part replaces 17620-KR3-752.

17620-KR3-753

$65.11

17

CAP, FUEL FILLER

17620-KR3-753

$65.11

18

WIRE, GUARD

17672-MEG-000

$11.75

20

RUBBER, PROTECTOR GASKET

18293-GN2-000

$2.68

21

PLUG, HOLE

61110-388-000

$3.10

23

MAT, METER COVER

83511-MFE-670

$1.66

24

COVER ASSY., METER

83515-MEG-A40

$123.88

25

SCREW, OVAL (5X12)

90111-MZ5-000

$3.68

26

BOLT, SPECIAL (6X14)

90118-MCL-000

$2.15

27

COLLAR (8X20)

90513-MAT-000

$2.91

28

CLAMP, TUBE (14.0)

90651-HM3-A71

$2.13

29

SCREW-WASHER (4X16)

93892-04016-08

$0.85

29

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$0.85

33

BOLT, FLANGE (8X35)

95701-08035-00

$2.78
