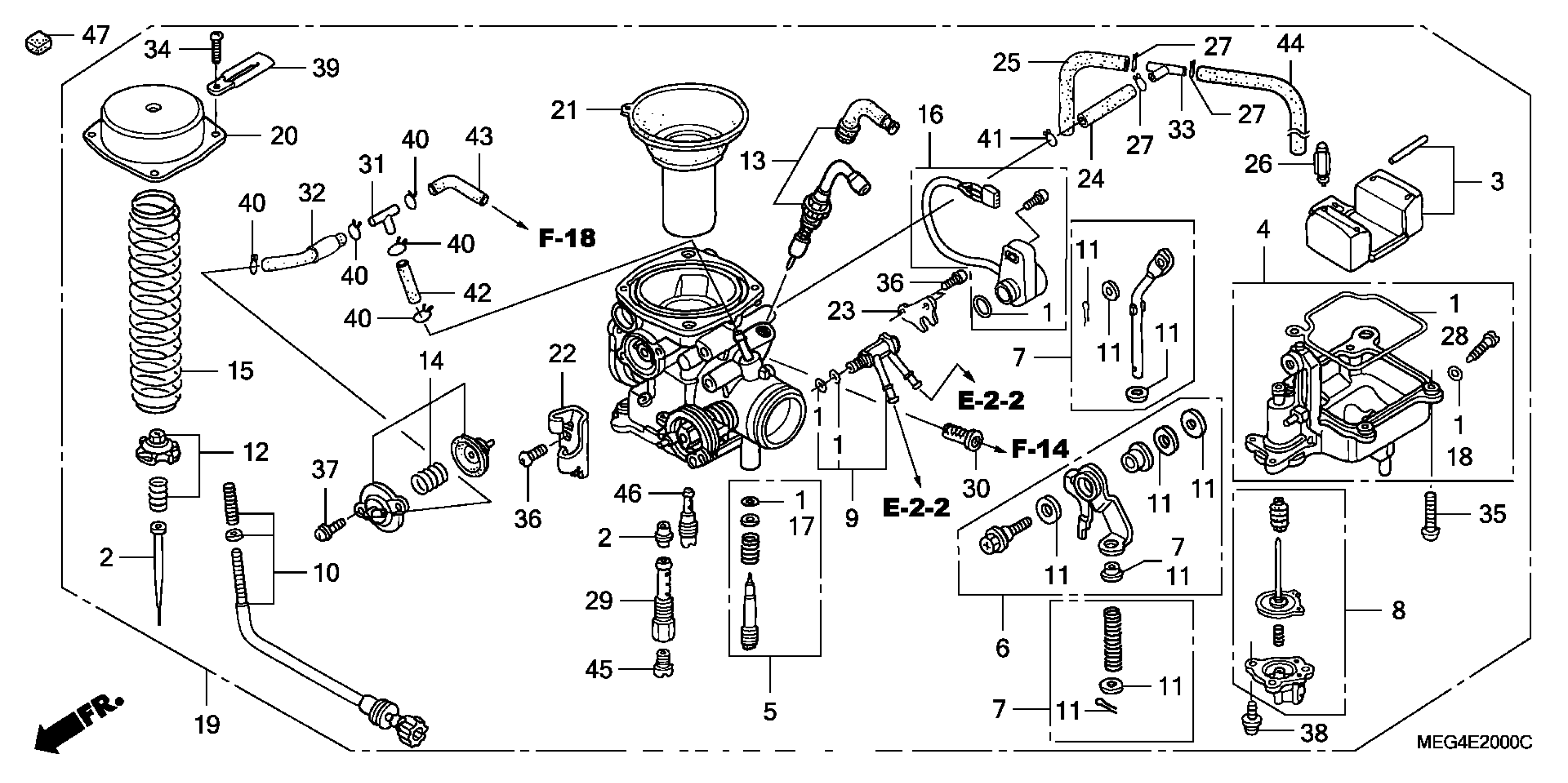

Honda VT750CAA/A (04) SHADOW AERO, JPN, VIN# JH2RC503-4K010001 TO JH2RC503-4K019999 CARBURETOR (A/CM) Diagram

#

Description
Price

1

GASKET SET

16010-MZ8-U41

$36.11

2

NEEDLE SET, JET

16012-MEG-003

$40.89

3

FLOAT SET

16013-KR3-980

$55.27

4

CHAMBER SET, FLOAT This part replaces 16015-MEG-003.

16015-MEG-B01

Unavailable

5

SCREW SET A

16016-MEG-003

$30.51

6

LINK SET

16017-KBG-670

$44.36

7

ROD SET, PUMP

16019-MZ8-U41

$20.92

8

DIAPHRAGM SET, PUMP

16021-MZ8-U41

$91.12

9

JOINT SET

16026-MEG-003

$39.46

10

SCREW SET B

16028-MEG-003

$38.08

11

WASHER SET

16035-MZ8-H00

$7.87

12

PLATE SET, VALVE

16037-MZ8-U51

$20.23

13

VALVE SET, STARTER

16046-MZ8-H00

$47.86

14

VALVE SET, AIR CUT

16048-MEG-003

$118.00

15

SPRING, COMPRESSION COIL

16050-MEG-003

Unavailable

16

SENSOR SET, THROTTLE

16060-MZ8-U41

Unavailable

17

O-RING (1.1X2.8)

16075-GHB-600

$2.33

18

O-RING (1.3X4.3)

16075-GHB-640

$2.92

19

CARBURETOR ASSY. (VE5BA A)

16100-MEG-033

$607.36

20

TOP

16107-KCZ-000

Unavailable

21

PISTON, VACUUM

16111-MEG-003

$116.25

22

STAY, WIRE

16119-KBR-000

Unavailable

23

PLATE, STAY

16120-MZ8-U42

$8.67

24

TUBE

16143-MEG-003

$13.23

25

TUBE

16144-MEG-003

Unavailable

26

VALVE, FLOAT

16155-HN7-003

$28.87

27

CLIP, TUBE (B6.5)

16163-GHB-610

$1.73

27

CLIP, TUBE This part replaces 16163-MB3-671.

16163-GHB-610

$1.73

28

GASKET, FLOAT CHAMBER

16163-MEA-671

$23.17

29

HOLDER, NEEDLE JET

16165-MEG-B01

$26.90

29

HOLDER, NEEDLE JET This part replaces 16165-MEG-003.

16165-MEG-B01

$26.90

30

SCREEN, FUEL STRAINER

16176-MW3-A80

$6.82

31

JOINT (T-TYPE)

16180-195-731

$12.95

32

TUBE

16196-MEG-013

Unavailable

33

JOINT, FUEL TUBE

16959-MY1-000

$17.77

34

SCREW, PAN (4X8) SCREW, PAN (4X12)

93500-04008-0A

$1.49

34

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$1.49

35

SCREW, PAN (4X14)

93500-04014-0A

$1.49

35

SCREW, PAN (4X14) This part replaces 93500-04014-1A.

93500-04014-0A

$1.49

36

SCREW, PAN (5X10)

93500-05010-0A

$1.49

36

SCREW, PAN (5X10) This part replaces 93500-05010-1A.

93500-05010-0A

$1.49

36

SCREW, PAN (5X10) This part replaces 93510-05010-0A.

93500-05010-0A

$1.49

37

SCREW-WASHER (4X10)

93892-04010-08

$1.49

37

SCREW-WASHER (4X10) This part replaces 93892-04010-18.

93892-04010-08

$1.49

38

SCREW-WASHER (4X12)

93892-04012-00

$1.49

38

SCREW-WASHER (4X12) This part replaces 93892-04012-10.

93892-04012-00

$1.49

39

CLIP (4X40)

94591-44000

$2.31

40

CLIP, TUBE (B17)

95002-02079

$1.49

41

CLIP, TUBE (B12)

95002-02120

$2.00

42

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

43

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

44

BULK HOSE, VACUUM (7X1000) (7X140) (USE ALT. P/N 95005-70003-30M)

95005-70001-50M

$12.71

45

JET, MAIN (#122) | (Optional).

99101-HN5-1220

$9.13

45

JET, MAIN (#125)

99101-KRY-1250

$9.30

46

JET, SLOW (#50)

99104-KC1-0500

$16.44

47

RUBBER SET, CARBURETOR TOP

16109-MEG-305

Unavailable
